Greenworks 20032 Chainsaw

Model: 20032

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

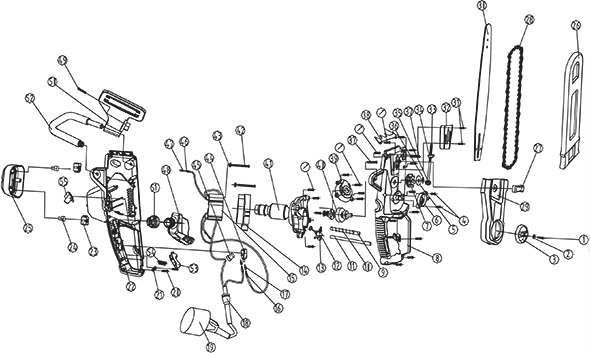

Greenworks 20032

...
...
1
Screw St4x16-F GWK-3220505
...
2
Flat Washer 4 GWK-3290305
...
3
Tension Knob GWK-34105403-2
...
4
Screw St4x10-F GWK-32204390
...
5
Washer GWK-33302102A
...
6
Tension Knob Borad GWK-34111159
...
7
Chain Wheel GWK-33902102A
...
8
Right Housing GWK-34102403-1
...
9
Outlet Oil Tube GWK-34205159
...
10
Outlet Oil Tube Spring GWK-33209159
...
11
Inlet Oil Tube GWK-34201403
...
12
Oil Pump Assy GWK-34906159
...
13
Oil Proof Wall GWK-34111403
...
14
Wind Proof Wall GWK-34112403
...
15
Stator Assy GWK-36101403
...
16
Straight Bushing GWK-3490235
...
17
Straight Terminal GWK-36501154
...
18
Wire Sleeve GWK-34203159
...
19
Power Cord GWK-36401403
...
20
Screw St4x12-F GWK-3220905
...
21
Ire Clamp GWK-3410801
...
22
Left Housing GWK-34101403-1
...
23
Carbon Brush Assy GWK-31101403
...
24
Rubber Boss GWK-34219281
...
25
Rear Cover GWK-34113403-1
...
26
Sheath GWK-34148154-2
...
27
Lock Knob GWK-34104403-2
...
28
16" Chain GWK-31102154
...
29
Side Cover Assy GWK-31102403
...
30
16" Bar GWK-31201403-2
...
31
Screw St2.9x12-C GWK-3220203
...
32
Ubber Pad GWK-33301403
...
33
Tension Gear Shaft GWK-33203403
...
34
Tension Block GWK-33302403
...
35
Tension Gear GWK-33904159
...
36
Etaining Ring 10 GWK-32901159
...
37
Screw St4.2x42-F GWK-32203403
...
38
Kickback Parts GWK-33302159
...
39
Upper Cover (Gear-Box) GWK-34109403
...
40
Gear Wheel Shaft Assy GWK-31103403
...
41
Otor Assy GWK-31106403
...
42
Screw St4.2x55-F GWK-32201403
...
43
Spring Washer GWK-3290675A
...
44
Micro Switch GWK-36301154
...
45
B Terminal GWK-3650135
...
46
Staight Terminal GWK-36501161
...
47
Staight Bushing GWK-34901161
...
48
Oil Tank Assy GWK-31104403
...
49
Screw St4.2x25-F GWK-3220404
...
50
Guard GWK-34106403-1
...
51
Oil Tank Cap Assy GWK-31105403-1
...
52
Auxiliary Handle GWK-34116403-1
...
53
Switch Trigger GWK-34107403-1
...
54
Spring For Switch Trigger GWK-33204403
...
55
Self-Lock Button Assy GWK-31107403-1

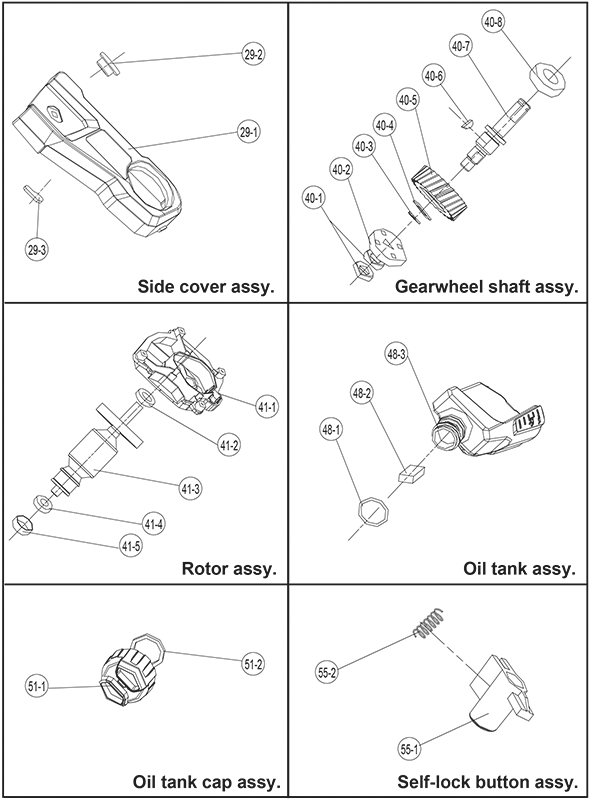

Greenworks 20032

...
...
29-1
Side Cover GWK-34103403
...
29-2
Bushing GWK-33906159
...
29-3
Washer GWK-34205403
...
40-1
Bearing GWK-32102159
...
40-8
Bearing GWK-32104154
...
40-7
Gear Wheel Shaft GWK-33201403
...
40-6
Half-Rounded Key GWK-32902152A
...
40-5
Gear Wheel GWK-33202403
...
40-4
Washer GWK-33303403
...
40-3
Retain Ring GWK-32901159
...
40-2
Oil Pump Cam GWK-33901159
...
41-1
Lower Cover (Gear-Box) GWK-34110403
...
41-2
Earing GWK-32103159
...
41-3
Rotor Assembly GWK-36102403
...
41-4
Bearing GWK-32104154
...
41-5
Bearing Sheath GWK-34206159
...
48-1
O-Ring GWK-34206329
...
48-2
Sponge GWK-34117403
...
48-3
Oil Bottle GWK-34115403
...
51-1
Oil Tank Cap GWK-34114403-2
...
51-2
Seal Washer GWK-3420514A
...
55-1
Self-Lock Button GWK-34108403-1
...
55-2
Spring For Self-Lock Button GWK-33205403
...
...
...
...
...
