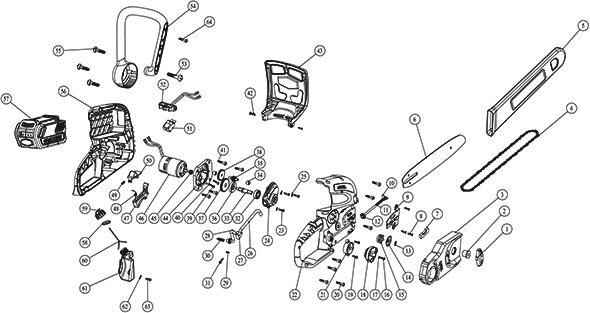

Greenworks 2000102 Chainsaw

Model: 2000102

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks 2000102

...
...
1
Side Cover Knob GWK-34109583
...
2
Bush GWK-33901420
...
3
Side Cover GWK-34110583
...
4
Chain GWK-31101420-1
...
5
Sheath GWK-34114155-1
...
6
Bar GWK-31100581-1
...
7
Rubber Clip GWK-34203420
...
8
Screw St4 .2X 10 GWK-32201329
...
9
Bar Washer GWK-33301583
...
10
Tension Board GWK-33305420
...
11
Tension Gear Shaft GWK-32207159-1
...
12
Tension Gear GWK-33904159
...
13
Washer GWK-32900420
...
14
Washer Hsf GWK-33301420
...
15
Chain Wheel GWK-33900420
...
16
Screw St4 .2X 14 GWK-3220313A
...
17
Washer GWK-3290186A
...
18
Tension Knob GWK-34108583
...
19
Screw St3.5 X 12-F GWK-32202391
...
20
Screw GWK-3220313A
...
21
Tension Knob Clip GWK-34108420
...
22
Right Housing GWK-34100581
...
23
Screw M4X10 GWK-3220205
...
24
Gear Box Cover GWK-33100420-1
...
25
Spring Washer GWK-32911301A
...
26
Oil Outlet Tube GWK-34201420
...
27
Oil Pump Assy GWK-31100329
...
28
Oil Tube GWK-34202420
...
29
Washer GWK-3290186A
...
30
Spring GWK-32208159-1
...
31
Screw M4X14 GWK-3221198
...
32
6000 Bearing GWK-32104159
...
33
Output Shaft GWK-33203420
...
34
Bearing GWK-3210111
...
35
Gear B GWK-33202329-1
...
36
Cam For Oil Pump GWK-33902420
...
37
Gear C GWK-33903329
...
38
Gear A GWK-33902329
...
39
Screw M5X9 GWK-32201155
...
40
Spring Washer GWK-32916131
...
41
Screw St4 .2X 14 GWK-3220313A
...
42
Screw St3.8X 9 GWK-3220248
...
43
Washer GWK-3290186A
...
44
Oil Tank GWK-34104581
...
45
Oil Tank Distaff GWK-34107583
...
46
Oil Can Cover GWK-34106583
...
47
Oil Can Washer GWK-34202583
...
48
Battery Assy GWK-31101975
...
49
Left Housing GWK-34101581
...
50
Screw St4 .2X 14 GWK-3220313A
...
51
Handle GWK-34102581
...
52
Screw St4 .2X 25 GWK-3220404
...
53
Braket GWK-34104978
...
54
Switch GWK-36300420
...
55
Switch Knob GWK-33200420
...
56
Spring GWK-33904524
...
57
Tortion Spring GWK-33200420
...
58
Switch Trigger GWK-34112583
...
59
Motor GWK-36103420
...
60
Gearing GWK-33901329
...
61
Gear Box GWK-33100420-2
...
62
Guard GWK-34103581
...
...
...
...
...
