Greenworks 20"13A Snow Blower 2600202CT

Model: 2600202CT

Save
 Part Not Listed?Part Not Listed?
product name

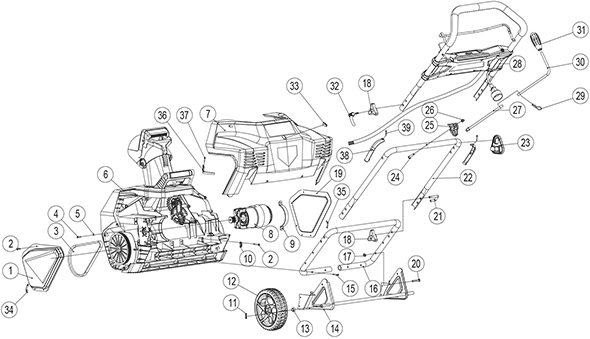

Greenworks 2600202CT

...
...
1
Left Side Cover GWK-332041205-2
...
2
Screw GWK-32205877
...
3
Belt GWK-329151205
...
4
Screw M5X15 GWK-32203100
...
5
Washer GWK-3290250
...

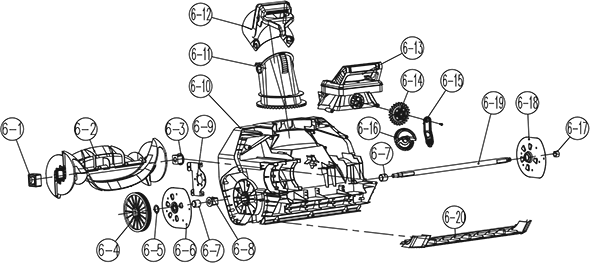

6-20
Scraper GWK-341111205-4
...
6-1
Link Block GWK-332061205
...
6-2
Impeller GWK-341171205
...
6-3
Right Driving Block GWK-339011205
...
6-4
Drive Wheel GWK-34109100-12
...
6-5
Washer GWK-32217100
...
6-6
Left Side Plate GWK-311111205
...
6-7
Bushing GWK-332111205
...
6-8
Left Driving Block GWK-339021205
...
6-9
Motor Support GWK-332011206
...
6-10
Front Cover GWK-341011205BK
...
6-11
Discharge Chute GWK-341301205BE
...
6-12
Chute Deflector GWK-31121206
...
6-13
Discharge Chute Base GWK-341311205BE
...
6-14
Small Gear GWK-341071205
...
6-15
Gear Seat GWK-341091205
...
6-16
Big Gear GWK-339031205
...
6-17
Nut M12 GWK-32902250A
...
6-18
Right Side Plate GWK-311131205
...
6-19
Axle For The Impeller GWK-332121205
...
6
Front Cover Assembly GWK-311011206
...
7
Rear Cover GWK-341021205-4
...
8
Motor GWK-361011210T
...
9
Motor Clamp GWK-332101210
...
10
Wire Clamp GWK-3410801
...
11
Split Pin GWK-3290135
...
12
7" Wheel Assembly GWK-311031206
...
13
Rubber Sleeve GWK-332151205
...
14
Wheel Bracket Assembly GWK-332021205
...
15
Screw GWK-32201699
...
16
Lower Handle GWK-333031205-2
...
17
Nut M6 GWK-32222301A
...
18
Knob GWK-3410835BC
...
19
Right Side Cover GWK-332051205-2
...
20
Screw M6X35 GWK-32204234
...
21
U Bolt GWK-333041205
...
22
Middle Handle GWK-333021205BD
...
23
Cord Retainer GWK-34120227
...
24
Screw GWK-32215301A
...
25
Bracket For The Chute Control Rod GWK-341131205-4
...
26
Nut GWK-32219121
...
27
Lower Chute Control Rod GWK-333011483AB
...
28
Handle Bar Assembly GWK-311041206
...
29
Hitch Pin GWK-3320643
...
30
Upper Chute Control Rod GWK-333021483
...
31
Handle For Chute Control Rod GWK-311051206
...
32
Cam Lock Assembly GWK-31102467-2
...
33
Rubber Bushing GWK-342011205
...
34
Left Side Wear Pad GWK-333041463
...
35
Right Side Wear Pad GWK-333051463
...
36
Weather Bar GWK-341021466
...
37
Screw GWK-3220345
...
38
Insulation Sleeve GWK-341062325AD
...
39
Screw GWK-3220505D

Greenworks 2600202CT

...
...
28-9
Light Head Housing GWK-341061108-3
...
28-19
Switch GWK-36302143
...
28-18
Cord Plug Assembly GWK-3640135-1
...
28-17
Lower Cover GWK-341151205-4
...
28-16
Rocker Switch GWK-363051205
...
28-15
Led And Aluminum Substrate GWK-362011108
...
28-14
Circuit Board GWK-362011201
...
28-13
Start Cable Assembly GWK-311091205
...
28-12
Wire Clamp GWK-3410801
...
28-11
Slider Block Assembly GWK-311081205
...
28-10
Upper Handle Assembly GWK-311071206
...
28-8
Lamp Screen GWK-341051108
...
28-7
Rubber Gasket GWK-342011108
...
28-6
Parabolic Reflector GWK-333011108
...
28-5
Screw GWK-32205877
...
28-4
Switch Pressure Head GWK-341201205
...
28-3
Faceplate GWK-341141205-4
...
28-2
Spring GWK-33401229A
...
28-1
Safety Switch Button GWK-34136486-2
...
28
Handle Bar Assembly GWK-311041206
...
...
...
...
...
