Greenworks 19" Cordless Self-propelled Lawn Mower 25272

Model: 25272

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks 25272

...
...
1
Foam Grip GWK-34115250
...
2
Upper Handle GWK-33303250-8
...
3
Motor Engagement Box Assy. GWK-31110487
...
3.1
Start Cable (Short) GWK-31901250
...
3.1
Torsion Spring GWK-33316250
...
3.11
Slide Block GWK-33317250
...
3.12
Bolt M3x20 GWK-32204250
...
3.13
Lower Cover I, Motor Engagement Box GWK-34111250-3
...
3.14
Screw St4.2x20-C GWK-32204113
...
3.15
Lower Cover Ii, Motor Engagement Box GWK-34116250-3
...
3.16
Screw St3.5X20-C GWK-3220346
...
3.17
Start Cable (Long) GWK-31902469
...
3.18
Compressed Spring GWK-33318250
...
3.2
Block GWK-34118250
...
3.3
Screw GWK-3220735
...
3.4
Upper Cover, Motor Engagement Box GWK-34110250-3
...
3.5
Start Button GWK-34129250-2
...
3.6
Spring GWK-33401229
...
3.7
Compressor GWK-34123469
...
3.8
Nut M3 GWK-3221305
...
3.9
Spring GWK-33315250
...
4
Power Lever GWK-33305469-4
...
5
Self Propel Lever GWK-33308469-4
...
6
Bail Stop GWK-33323250-1
...
7
Bolt M5x30 GWK-32208234
...
8
Lock Nut M5 GWK-3220439
...
9
Drive Cable GWK-31901469-1
...
10
Lower Handle GWK-33302463-4
...
11
Cam Lock Assy. GWK-31103487
...
11.1
Dowel Pin 5x26 GWK-32901466
...
11.2
Cam Lock Lever GWK-34102466-3
...
11.3
Cam Lock Block GWK-34103466-3
...
11.4
Cam Lock Bolt GWK-33201466
...

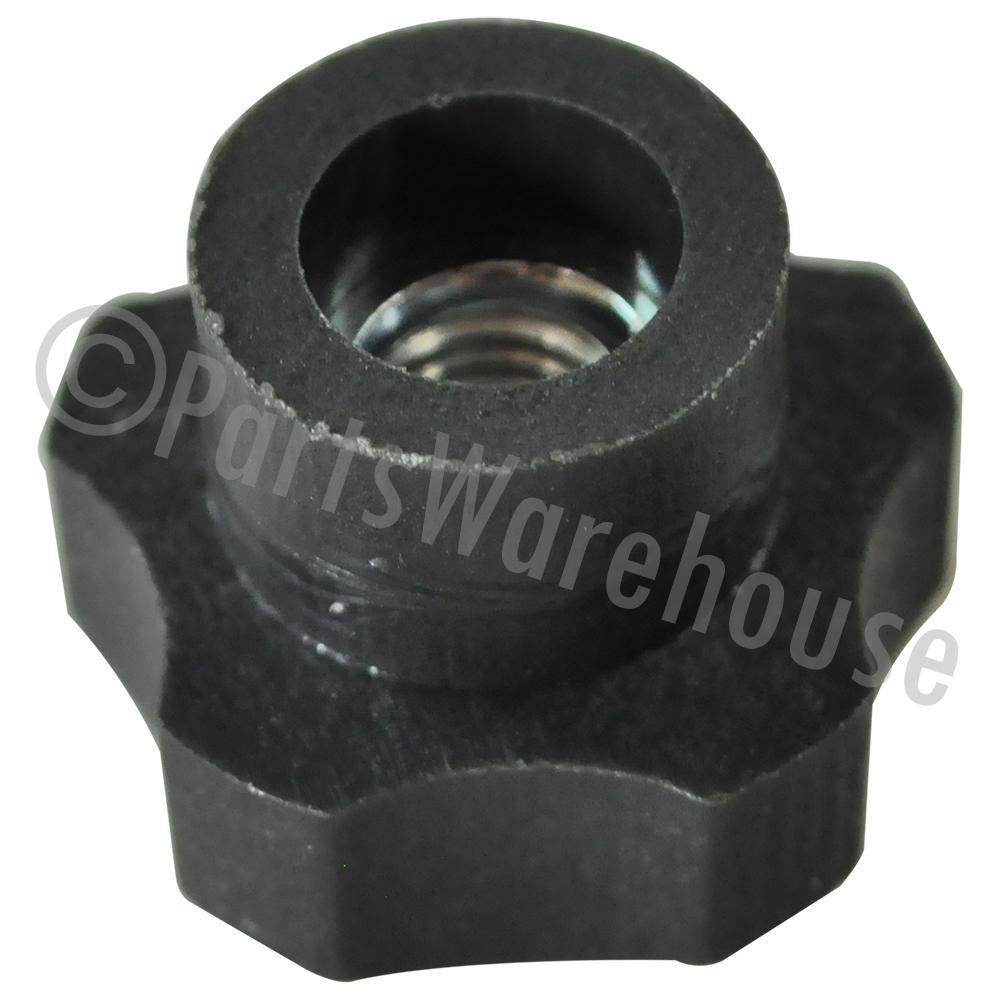

12
Handle Knob GWK-34106467-1
...
13
Cord Guide GWK-34135469
...
14
Battery GWK-31102492
...
15
Screw M5x12 GWK-32206250
...
16
Upper Housing GWK-34105492
...
17
Key Holder B GWK-34107492
...
18
Cord, Red GWK-36503487
...
19
Cord, Black GWK-31127469
...
20
Cord, Red GWK-36503487
...
21
Key Holder A GWK-34106492
...
22
Key GWK-31201470
...
23
Connector GWK-36501229
...
24
Retaining Seat GWK-34105462
...
25
Screw St4x14-F GWK-32210131
...
26
Lock Nut M6 GWK-3220537
...
27
Motor GWK-36101492
...
28
Nut M8 GWK-32208261
...
29
Motor Bracket GWK-34101463-1
...

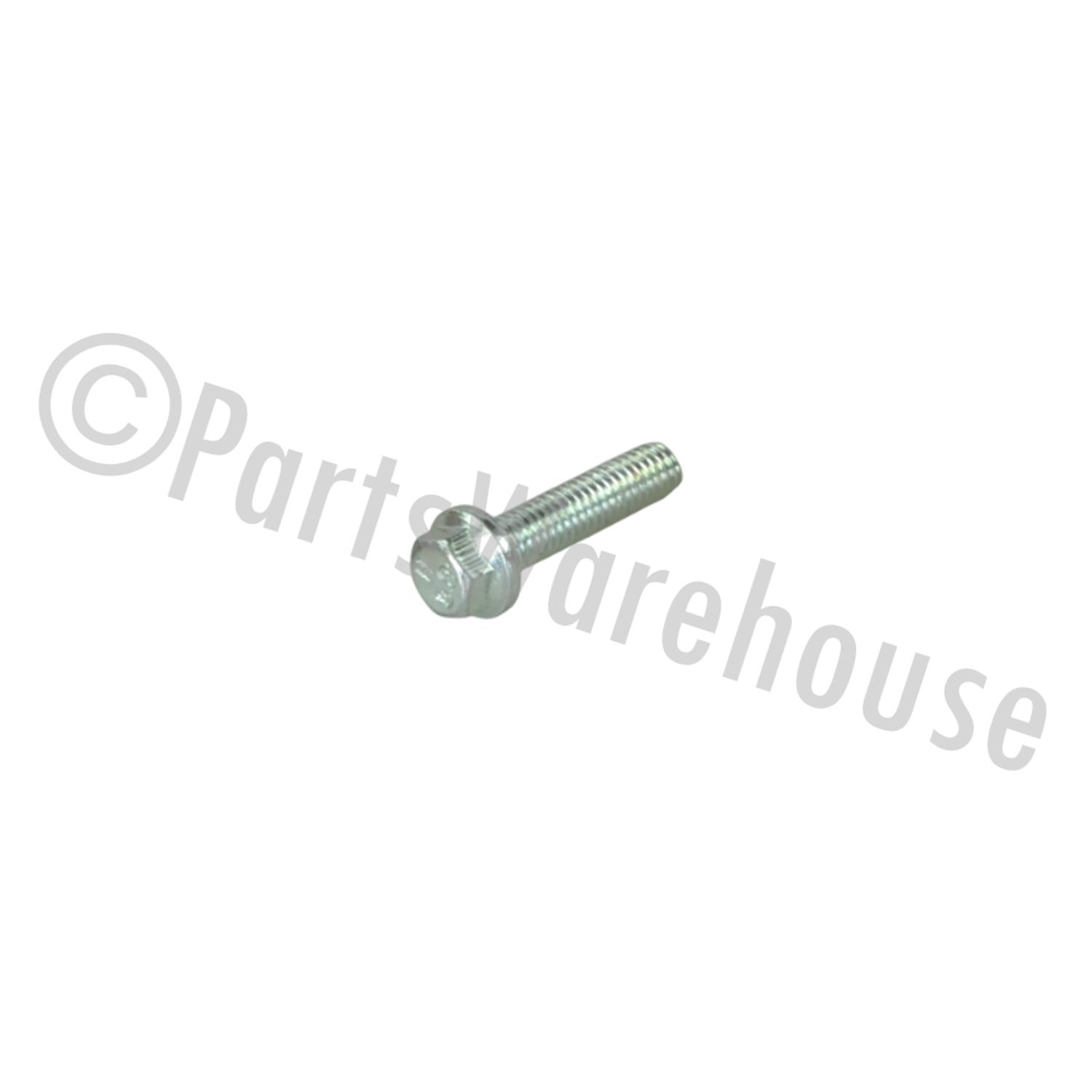

30
Bolt M6x25 GWK-3220135
...
31
Bolt M8x16 GWK-3220406
...
32
Bolt GWK-32202234
...
33
Side Discharge Cover Assy. GWK-31104487
...
33.1
Side Discharge Cover GWK-34102467-1
...
33.2
Side Discharge Torsion Spring GWK-33331250
...
33.3
Side Discharge Bracket GWK-34107250
...
33.4
Side Discharge Axle GWK-33308250
...
34
Side Discharge Chute GWK-34103467-1
...
35
Bolt M6X8 GWK-3220136
...
36
Spring GWK-33332250
...
37
Switch Box Assy. GWK-31106250-3
...
37.1
Upper Cover, Switch Box GWK-34134250-1
...
37.2
Switch Box Slide Block GWK-34114250
...
37.3
Switch GWK-36302470
...
37.4
Lower Cover, Switch Box GWK-34113250
...
37.5
Switch Box Bracket GWK-33325250
...
37.6
Screw St4.2x35-F GWK-32205404
...
38
Wheel Cover GWK-34106488
...
39
Pin ?2.5 GWK-3290135
...
40
Washer GWK-3220898
...
41
7" Wheel Assy. GWK-31102488
...
42
Screw M5x15 GWK-3220435
...
43
Front Wheel Axle GWK-33901234-1
...
44
Deck GWK-31301492
...
45
Lock Nut M12 GWK-32902250
...
46
Square Washer GWK-33322250
...
47
Insulator Washer GWK-3410535
...
48
19" Blade GWK-33301487
...
49
Fan GWK-34101492
...
50
Belt Guard GWK-34103463
...
51
Belt Pulley GWK-33901250
...
52
Drive Belt GWK-34201234-1
...
53
Link Bar GWK-33302234-4
...
54
Tension Spring GWK-33312234
...
55
Screw St6.3x16-F GWK-32205234
...
56
Rear Baffle GWK-34102234-1
...
57
Screw St6.3x12-F GWK-32210234
...
58
Bolt GWK-32207234
...
59
Retaining Ring 8 GWK-3290506
...
60
Height Adjustment Plate (Left) GWK-33905234-1
...
61
Nut M10 GWK-32910131
...
62
Torsion Spring (Left) GWK-33310234
...
63
Rear Shield GWK-34101467
...
64
Lock Nut M4 GWK-3221237
...
65
Wire Clip GWK-3330490-1
...
66
Screw M4x12 GWK-3220518
...
67
Rear Cover Rod GWK-33201234
...
68
Torsion Spring (Right) GWK-33313234
...
69
Height Adjustment Plate (Right) GWK-33904234-1
...
70
Spring Plate GWK-33303234
...
71
Height Adjustment Lever GWK-33304234
...
72
Height Adjustment Knob (Lower) GWK-34114227-5
...
73
Height Adjustment Knob (Upper) GWK-34113227-5
...
74
Wheel GWK-31101492
...
75
Retaining Ring 10 GWK-32905234
...
76
Washer GWK-32908234
...
77
Pinion Gear GWK-33204234
...
78
Dowel Pin GWK-32906234-1
...
79
Wheel Dust Cover GWK-34104234-1
...
80
Retaining Ring GWK-32902234
...
81
Bushing GWK-32101234
...
82
Rear Wheel Bracket GWK-33903234-1
...
83
Housing GWK-33908234
...
84
Tension Spring GWK-33901472
...
85
Transmission Assy. GWK-31103473
...
86
Rear Door GWK-34101234-4
...
87
Bag Frame GWK-33907234-5
...
88
Grass Bag GWK-34902234-10
...

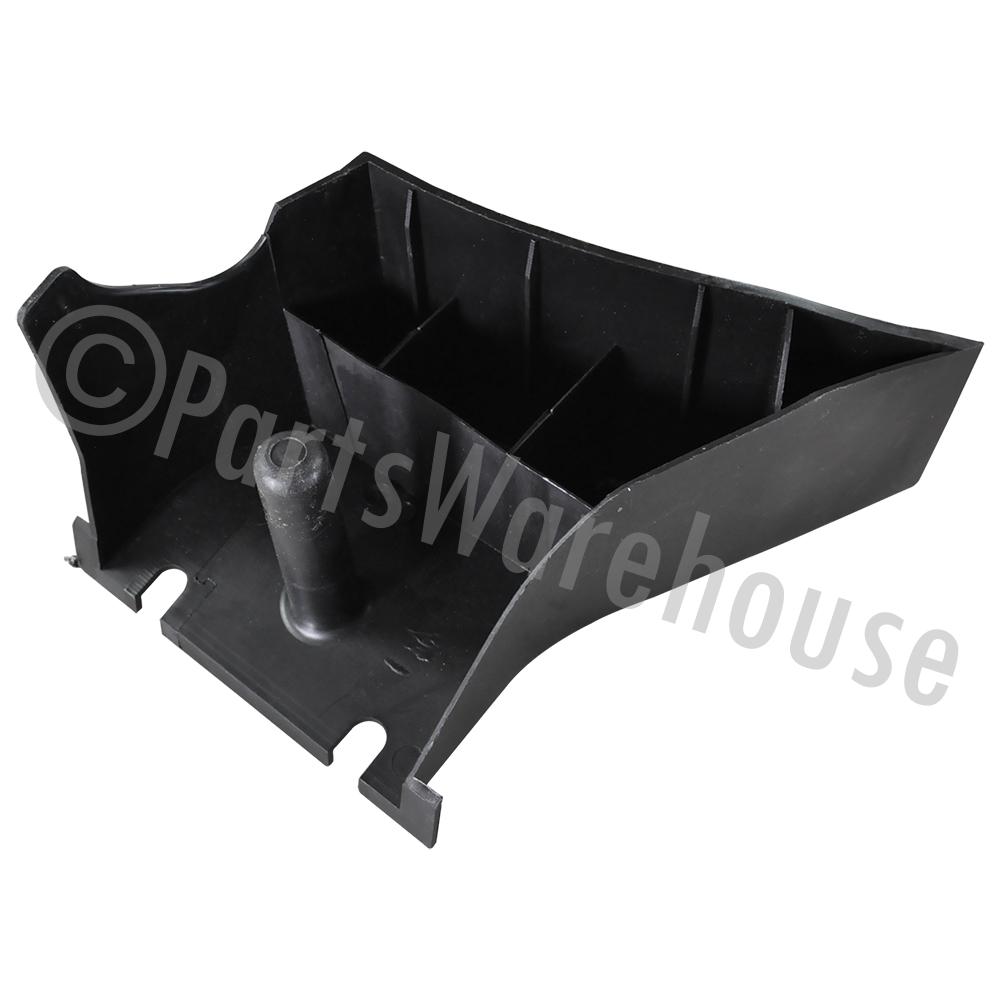

89
Mulching Plug GWK-34106463-2
...
90
36V Charger GWK-36601492
...
...
...
...
...
