Greenworks 18V CORDLESS STRING TRIMMER 21062

Model: 21062

Save
 Part Not Listed?Part Not Listed?
product name

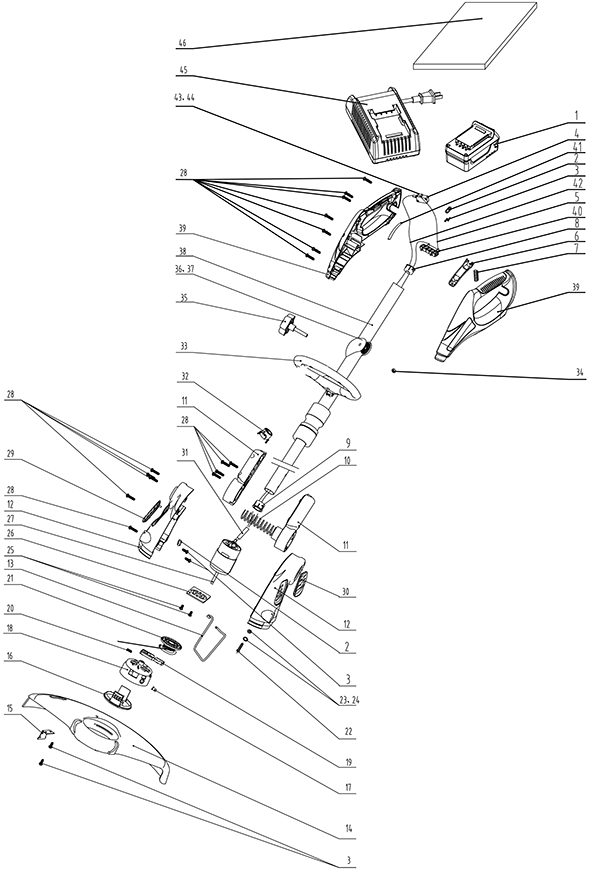

Greenworks 21062

...
...
1
18V Battery Assembly GWK-31102906
...
2
Fixed Board GWK-3410302
...
3
Screw St4.2X12-F GWK-3220905
...
4
Switch GWK-3630129
...
5
Spring Wire GWK-3690105-1
...
6
Switch Board GWK-3410313-6
...
7
Switch Spring GWK-3340513
...
8
Spring Wire Sleeve(Big) GWK-3410182
...
9
Spring Wire Sleeve GWK-3411105
...
10
Lock Spring GWK-3340182
...
11
Pivot Housing GWK-3410482-6
...
12
Motor Housing GWK-3410582-6
...
13
Steel Guide GWK-3330182
...
14
Guard GWK-34117181-6
...
15
Blade Frame GWK-33300337
...
16
Spool Cover GWK-3411546-6
...
17
Spool Line Hole GWK-3320146
...
18
Ac Fan Blade GWK-3110582-1
...
19
Auto-Feed Button GWK-3411746-6
...
20
Auto-Feed Spring GWK-3340646
...
21
Ac Auto-Feed Spool GWK-3110382-4
...
22
Screw M4X10 GWK-3220205
...
23
Washer GWK-3290173
...
24
Nut M4 GWK-3290105
...
25
Bolt M4X8 GWK-3220930
...
26
Motor Fixed Board GWK-34109181
...
27
Motor Assembly-775 GWK-36101181
...
28
Screw St 4.2X16-F GWK-3220505
...
29
Air Intake Left Blind GWK-3410382-6
...
30
Air Intake Right Blind GWK-3410782-6
...
31
Cotton Varnised Sleeve GWK-3020250
...
32
Pivot Button GWK-3410282-6
...
33
Auxiliary Handle GWK-3110182-6
...
34
Nut M6 GWK-3290205
...
35
Auxiliary Handle Knob GWK-3110282-6
...
36
Auxiliary Handle Clamp GWK-3410605A-6
...
37
Rubber Washer GWK-3420306
...
38
Telescope Shaft Assembly GWK-33301176-6
...
39
Handle Assembly GWK-3410682-6
...
40
Battery Outlet GWK-34106177
...
41
Heat Shrinkable Sleeve GWK-3030311
...
42
Spring Wire GWK-3050111
...
43
Terminal 4.8 X 0.5 GWK-3650101
...
44
Sleeve 4.8 GWK-3490301
...
45
Charger GWK-31101916
...
46
Manual GWK-38831338
...
...
...
...
...
