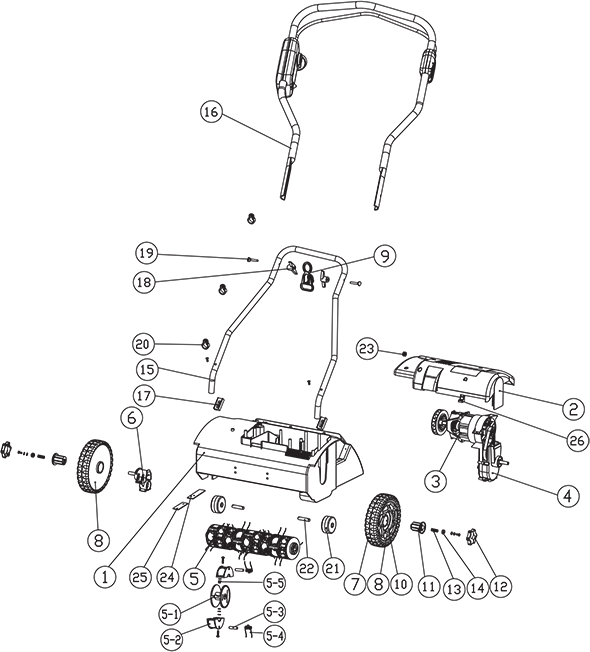

Greenworks 14" 10A ELECTRIC DETHATCHER 27022

Model: 27022

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks 27022

...
...
1
Housing GWK-60-3864-1
...
2
Cover For Motor GWK-60-3864-2
...
3
Motor Assy. GWK-60-3864-3
...
4
Gear Case Assy. GWK-60-3864-4
...
5
Tines Assy. GWK-60-3864-5
...
5-1
Base For Tine GWK-60-3864-5-1
...
5-2
Tine Cartridge GWK-60-3864-5-2
...
5-3
Pin GWK-60-3864-5-3
...
5-4
Tine GWK-60-3864-5-4
...
5-5
Bolt, Nut And Washer GWK-60-3864-5-5
...
6
Bracket For Tines Assy. GWK-60-3864-6
...
7
Tire For Front Wheel GWK-60-3864-7
...
8
Front Wheel GWK-60-3864-8
...
9
Cord Retainer GWK-60-3864-9
...
10
Bush For Front Wheel GWK-60-3864-10
...
11
Shaft For High Adjustment GWK-60-3864-11
...
12
High Adjustment Knob GWK-60-3864-12
...
13
Spring For High Adjustment GWK-60-3864-13
...
14
Baffle For High Adjustment Spring GWK-60-3864-14
...
15
Lower Handle GWK-60-3864-15
...
16
Upper Handle Assy. GWK-60-3864-16
...
17
Rubber Cushion GWK-60-3864-17
...
18
Knob GWK-60-3864-18
...
19
Bolt GWK-60-3864-19
...
20
Hang For Power Cord GWK-60-3864-20
...
21
Rear Wheel Assy. GWK-60-3864-21
...
22
Shaft For Rear Wheel GWK-60-3864-22
...
23
Ringer For Power Cord GWK-60-3864-23
...
24
Big Cover GWK-60-3864-24
...
25
Little Cover GWK-60-3864-25
...
26
Support For Motor GWK-60-3864-26
...
...
...
...
...
