Greenworks 12 Amp Electric Snow Thrower 26032

Model: 26032

Save
 Part Not Listed?Part Not Listed?
product name

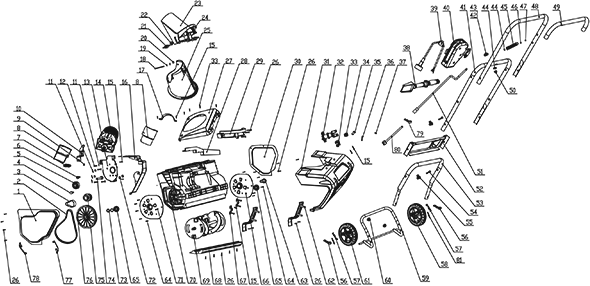

Greenworks 26032

...
...
1
Left Side Board GWK-33306100-10
...
2
Belt GWK-3290198
...
3
Strap GWK-34901100
...
4
Tensioner Fix Shaft GWK-33212100
...
5
Tensioner Bearing GWK-32104100
...
6
Tensioner Shaft GWK-33211100
...
7
Tensioner Spring GWK-33903100
...
8
Motor Vent Cover GWK-34165100
...
9
Locknut GWK-32201100
...
10
Tensioner Bracket GWK-33305100
...
11
Washer GWK-3290699
...
12
Cross Screw GWK-32203100
...
13
Motor Support GWK-33301100-2
...
14
Motor Assembly GWK-31120100-1
...
15
Screw GWK-3220505
...
16
Waterproof Bracket GWK-34120100-1
...
17
Motor Clamp GWK-33378100
...
18
Cross Screw GWK-32208100
...
19
Washer GWK-32210100
...
20
Nut GWK-32209100
...
21
Knob GWK-3410835-50
...
22
Washer GWK-32215100
...
23
Chute Deflector GWK-34111100-10
...
24
Hex Screw GWK-32216100
...
25
Discharge Chute GWK-34110100-10
...
26
Cross Screw GWK-32207100
...
27
Out Chute Cover GWK-34104100-10
...
28
Waterproof Support GWK-34121100A
...
29
Inlet Chute Cover GWK-34106100-1
...
30
Right Side Board GWK-33307100-10
...
31
Rear Cover GWK-34102100-10
...
32
Pinion Bracket GWK-34160100
...
33
Plate GWK-34161100
...
34
Square Bushing GWK-34162100
...
35
Pin GWK-33260100
...
36
Screw GWK-32288100
...
37
Locknut GWK-32901261
...
38
Snow Spade GWK-34118100-10
...
39
Pigtail Cable GWK-31107100A
...
40
Switch Assembly GWK-3630235-7
...
41
Middle Handle GWK-33207100-10
...
42
Screw GWK-3330499
...
43
Rubber GWK-3420199
...
44
Washer GWK-3290299
...
45
Handle GWK-3410499A-10
...
46
Washer GWK-33306699
...
47
Retaining Ring GWK-32901251
...
48
Upper Handle GWK-32208100-10
...
49
Soft Grip Sponge GWK-3490137-1
...
50
Nut GWK-3290599
...
51
Rear Rocker GWK-33214100-10
...
52
Panel GWK-33310100-10
...
53
Front Handle GWK-33205100A-10
...
54
Bolt GWK-3220436
...
55
Knob GWK-3410835-8
...
56
Split Pin GWK-3290135
...
57
Wheel Cover GWK-34108229A-10
...
58
8" Wheel (Right) GWK-34204229B-10
...
59
Lower Handle GWK-33206100A-10
...
60
Rubber Sleeve GWK-34250100
...
61
8" Wheel (Left) GWK-34204229A-10
...
62
Front Support GWK-33304100
...
63
Short Shaft GWK-33201100A
...
64
Cross Screw GWK-32206100
...
65
Waterproof Bearing GWK-32102100
...
66
Right Support GWK-33309100
...
67
Inner Cord Clamp GWK-34158100
...
68
Vane GWK-34105100-1
...
69
Impellor Assembly GWK-31118100
...
70
Front Cover GWK-34101100-10
...
71
Left Support GWK-33308100
...
72
Nut GWK-3220651
...
73
Washer GWK-32217100
...
74
Pulley Wheel Support Shaft GWK-33203100A
...
75
Pulley Wheel Assembly GWK-31110100A
...
76
Driver Wheel GWK-34109100-1
...
77
Right Barrier Chip GWK-33274100-10
...
78
Left Barrier Chip GWK-33273100-10
...
79
Hitch Pin GWK-3320643
...
80
Upper Rocker GWK-33214100-11
...
81
Washer GWK-3220898
...
...
...
...
...
