Greenworks 10" LITHIUM CULTIVATOR 2800100

Model: 2800100

Save
 Part Not Listed?Part Not Listed?
product name

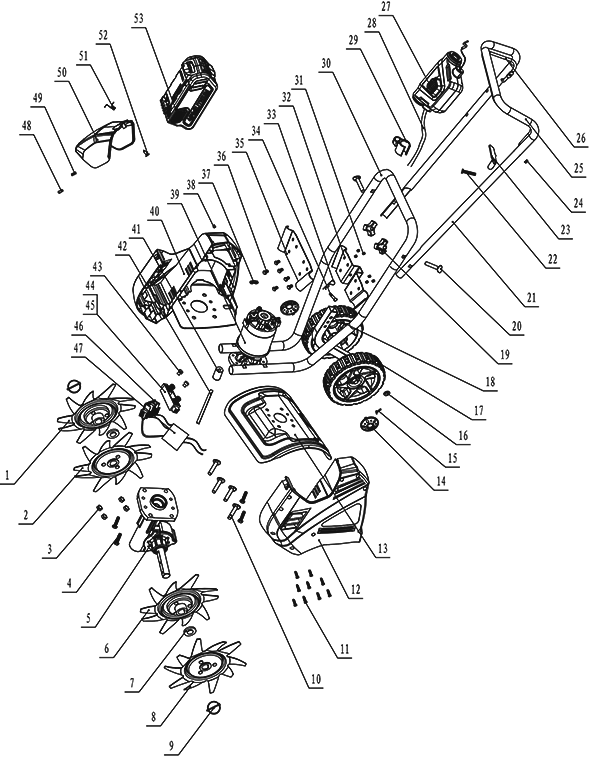

Greenworks 2800100

...
...
1
Blade GWK-31115281
...
2
Blade GWK-31114281
...
3
Nuts M8 GWK-32208261
...
4
Bolt GWK-32203289
...
5
Gear Box Assy' GWK-31102289-1
...
6
Blade GWK-31103281
...
7
Washer GWK-34901282-1
...
8
Blade GWK-31102281
...
9
Pin GWK-33210289
...
10
Bolt GWK-3220436
...
11
Screw GWK-3220505
...
12
Left Housing GWK-34107289
...
13
Cover GWK-33301289
...
14
Wheel Cap GWK-34106488
...
15
Pin GWK-3290135
...
16
Washer GWK-3220898
...
17
6" Wheel GWK-31101488-1
...
18
Sheves Of Wheel GWK-332041043
...
19
Knob GWK-3410835-8
...
20
Screw GWK-32204283
...
21
Upper Handle Assy' GWK-33208289
...
22
Screw GWK-32208250
...
23
Pieces GWK-33323250-1
...
24
Nuts GWK-3220439
...
25
Handle GWK-3490137-1
...
26
Bail Lever GWK-332011050AB
...
27
Switch Assy' GWK-311031043
...
28
Cord GWK-36403289
...
29
Cord Guide GWK-34135469A
...
30
Low Handle GWK-33209289
...
31
M6 Nut GWK-32222301A
...
32
Lower Board GWK-33303289
...
33
Clip GWK-3320643
...
34
Pin GWK-33207289
...
35
Upper Board GWK-33302289
...
36
M6X12 Screw GWK-32201289
...
37
Wire Clamp GWK-3411435
...
38
Magnet GWK-33905110
...
39
Motor Assy' GWK-36101289
...
40
Right Housing GWK-34108289
...
41
Connector GWK-33912281
...
42
Shaft GWK-33211289
...
43
Washer GWK-34201289
...
44
Spring GWK-33401289
...
45
Fixer GWK-34106289
...
46
Insert Seat GWK-34106976
...
47
Soft-Start GWK-36410289
...
48
Axle GWK-33203470
...
49
Spring GWK-33904470
...
50
Battery Door GWK-34103289
...
51
Spring GWK-33402289
...
52
Screw GWK-32202144
...
53
40V 4Ah Battery GWK-31102975
...
...
...
...
...
