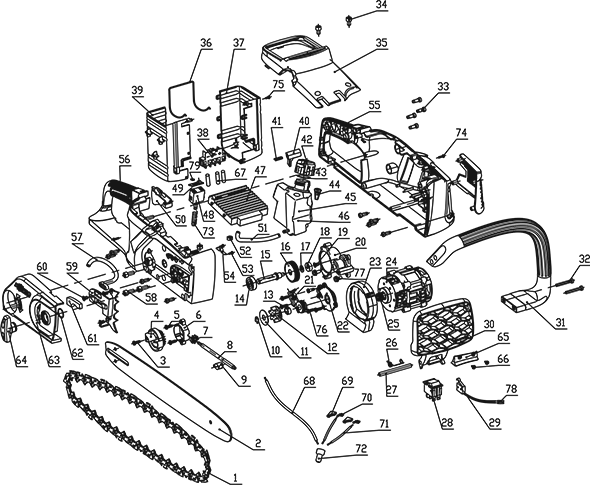

Greenworks 054-5760-2 Chainsaw

Model: 054-5760-2

Save
 Part Not Listed?Part Not Listed?
product name

Greenworks 054-5760-2

...
...
1
Saw Chain GWK-31101590
...
2
Chain Bar GWK-31100590
...
3
Screw St4.8X14 GWK-32206590
...
4
Tension Knob GWK-34108583
...
5
Screw St3.5X8 GWK-32212590
...
6
Clamp GWK-34108420
...
7
Tension Gear GWK-33904159
...
8
Tension Bar GWK-32200590
...
9
Chain Tension Screw GWK-33302590
...
10
Ring GWK-32209590
...
11
Washer GWK-33304590
...
12
Sproket GWK-33902102
...
13
Insulate Tube GWK-34111590
...
14
Bearing GWK-32104154
...
15
Output Shaft GWK-33204590
...
16
Gear GWK-33203590
...
17
Bearing W Asher GWK-33206590
...
18
Bearing GWK-32104590
...
19
Screw M5X8 GWK-32202590
...
20
Gear Box Housing GWK-33100590
...
21
Oil Pump GWK-34900590
...
22
Gear Box Cover GWK-33101590
...
23
Air Outlet Guide Circule GWK-34110590
...
24
Brushless Motor GWK-36101590
...
25
Gear GWK-33202590
...
26
Torsion Spring GWK-33224590
...
27
Brake Shaft GWK-32207590
...
28
Sw Itch 3 GWK-36302590
...
29
Sw Itch 2 GWK-36301590
...
30
Guard GWK-34105590
...
31
Auxiliary Handle GWK-34103590
...
32
Screw St4.8X30 T25 GWK-32211590
...
33
Screw St4.8X14 T25 GWK-32206590
...
34
Screw M6X12 GWK-32204590
...
35
Top Cover GWK-34113590
...
36
Battery Spring GWK-33200590
...
37
Battery Left Housing GWK-34109590
...
38
Battery Insert GWK-34106976
...
39
Battery Right Housing GWK-34108590
...
40
Lock-Off Button GWK-34106590
...
41
Spring GWK-33207590
...
42
Oil Tank Cap GWK-341151607
...
43
Oil Tank Seal Ring GWK-34205154A
...
44
Oil Tank Inlet V Alv E GWK-342011607
...
45
Oil Tank GWK-34112590
...
46
Oil Tank Cord GWK-341111607
...
47
Pcb Board GWK-36201590
...
48
Switch 1 GWK-36300590
...
49
Power Start Board GWK-36202590
...
50
Switch Trigger GWK-34115590
...
51
Oil Inlet Tube GWK-34200590
...
52
Nut GWK-32203590
...
53
Screw St3X8 GWK-32201147
...
54
Brake Spring GWK-33304404
...
55
Lef T Housing GWK-34114590
...
56
Right Housing GWK-34116590
...
57
Oil Outlet Tube GWK-34201590
...
58
Screw M6X16 GWK-32210590
...
59
Spikes GWK-33300590
...
60
Screw St4.2X10 GWK-32205590
...
61
Washer GWK-34206590
...
62
Steel Cable Baf F Le Ring GWK-32900583
...
63
Sproket Cov Er GWK-34102590
...
64
Sproket Cov Er Tighten Knob GWK-34129583-2
...
65
Log Chips Block GWK-34217590
...
66
Screw St3X8 GWK-32227590
...
67
Tube GWK-3420740A
...
68
Wire GWK-30302271
...
69
Terminal Sleev E GWK-3419650-1
...
70
Terminal GWK-36510154
...
71
Wire GWK-30501281
...
72
B Terminal GWK-3650339
...
73
Spring GWK-33217590
...
74
Screw M3X10 GWK-32226590
...
75
Screw St2.9X8 GWK-32217301A
...
76
Screw M4X10 GWK-33203505-1
...
77
Screw GWK-32218590
...
78
2Mm Tube GWK-30301590
...
79
Pad GWK-34903590
...
...
...
...
...
