GE Monogram ZGP486LDN1SS Gas Range Or Dual Fuel

Model: ZGP486LDN1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

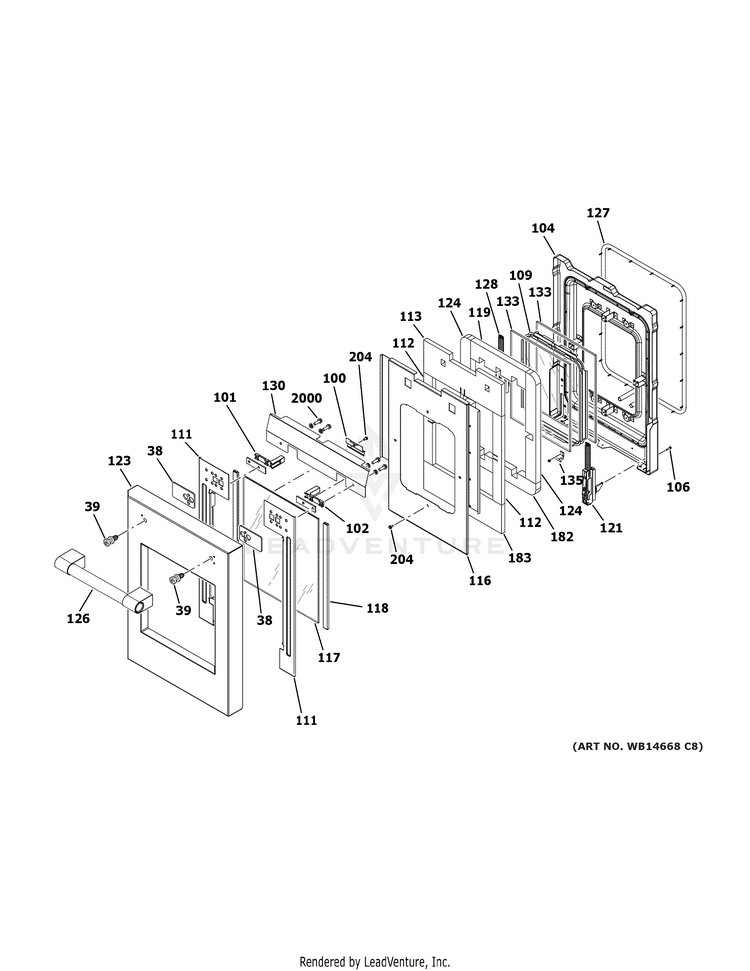

SMALL DOOR ASSEMBLY

...
...
38
PAD END CAP GEH-WB02X31822
...
39
FASTENER DOOR HANDLE GEH-WR01X11007
...
100
BRACKET GLASS GEH-WB02K10218
...
101
BRACKET HANDLE LEFT GEH-WB34X31807
...
102
BRACKET HANDLE RIGHT GEH-WB34X31805
...
104
LINER OVEN DOOR ASM 12 GEH-WB55K10060
...
106
SCR 10-32 TR T 7/8 S GEH-WB01K10089
...
109
SPACER WINDOW GEH-WB34K10110
...
111
SUPPORT OUTER GLASS RIGHT GEH-WB34X31806
...
111
SUPPORT OUTER GLASS LEFT GEH-WB34X31808
...
112
FT INSUL DOOR SIDE GEH-WB35K10129
...
113
FT INSUL DOOR TOP 12" GEH-WB35K10135
...
116
GUARD INSULATION GEH-WB55K10058
...
117
GLASS DOOR 12" GEH-WB57K10136
...
118
PAD DOOR GEH-WB04K10028
...
119
RR INSUL DOOR TOP 12" GEH-WB35K10138
...
121
HINGE DOOR RT(12) GEH-WB10K10013
...
123
STAINLESS STEEL OVEN DOOR PANEL GEH-WB56X31791
...
124
RR INSUL DOOR SIDE GEH-WB35K10132
...
126
12 HANDLE AND END CAP GEH-WB15X35070
...
127
GASKET DOOR 12" GEH-WB02K10220
...
128
HINGE DOOR LT(12) GEH-WB10K10014
...
130
HEAT DEFLECTOR 12" GEH-WB02K10261
...
133
GLASS DOOR GEH-WB57K10137
...
135
CLIP WINDOW GEH-WB02K10222
...
182
RR INSUL DOOR BTM 12" GEH-WB35K10137
...
183
RR INSUL DOOR BTM 12" GEH-WB35K10136
...
204
SCREW GEH-WB01K0084
...
2000
SCR 10-32 TRP 1/2 GEH-WB01K10100
...
...
...
...
...
