GE Monogram ZGP364LDN1SS Gas Range Or Dual Fuel

Model: ZGP364LDN1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

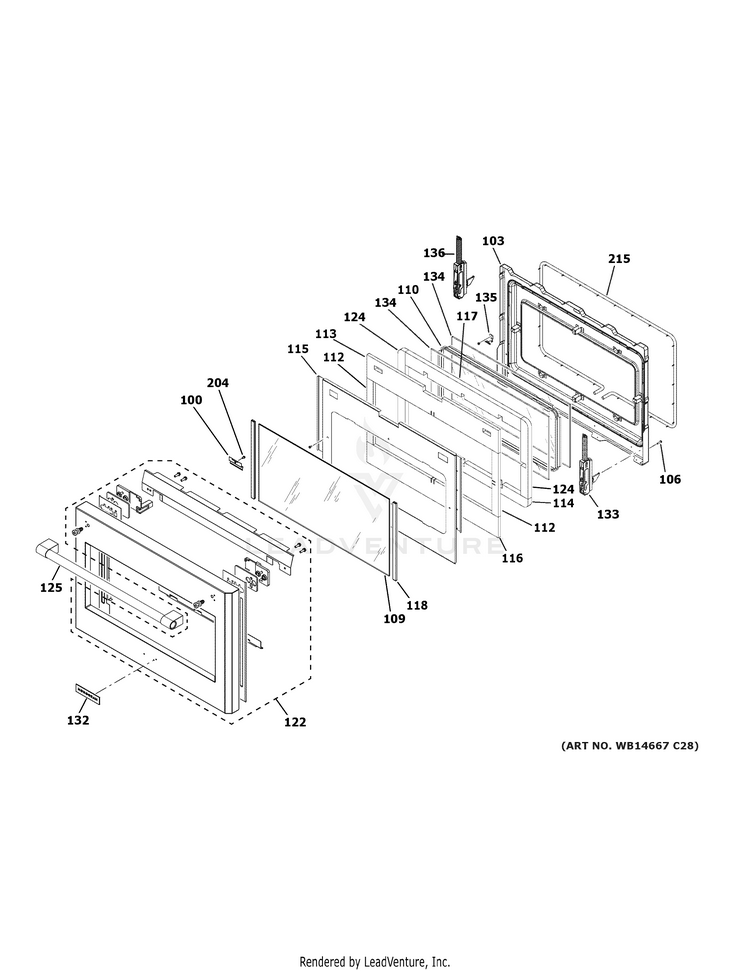

DOOR

...
...
100
BRACKET GLASS GEH-WB02K10218
...
103
LINER OVEN DOOR ASM GEH-WB55K10062
...
106
SCR 10-32 TR T 7/8 S GEH-WB01K10089
...
109
GLASS DOOR 27" GEH-WB57K10135
...
110
SPACER WINDOW GEH-WB34K10109
...
112
FT INSUL DOOR SIDE GEH-WB35K10129
...
113
FT INSUL DOOR TOP 27" GEH-WB35K10130
...
114
RR INSUL DOOR BTM 27" GEH-WB35K10134
...
115
GUARD INSULATION GEH-WB55K10059
...
116
FT INSUL DOOR BTM 27" GEH-WB35K10131
...
117
RR INSUL DOOR TOP 27" GEH-WB35K10133
...
118
PAD DOOR GEH-WB04K10028
...
122
STAINLESS STEEL OVEN DOOR PANEL GEH-WB56X37966
...
124
RR INSUL DOOR SIDE GEH-WB35K10132
...
125
36" HANDLE AND END CAP GEH-WB15X35071
...
132
BADGE MONOGRAM GEH-WB02X35125
...
133
HINGE DOOR RT(36) GEH-WB10K10017
...
134
GLASS DOOR GEH-WB57K10138
...
135
CLIP WINDOW GEH-WB02K10222
...
136
HINGE DOOR LT(36) GEH-WB10K10018
...
204
SCREW (BLK) GEH-WB01K0042
...
215
GASKET DOOR 27" GEH-WB02K10221
...
...
...
...
...
