GE Monogram ZGP364LDN1SS Gas Range Or Dual Fuel

Model: ZGP364LDN1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

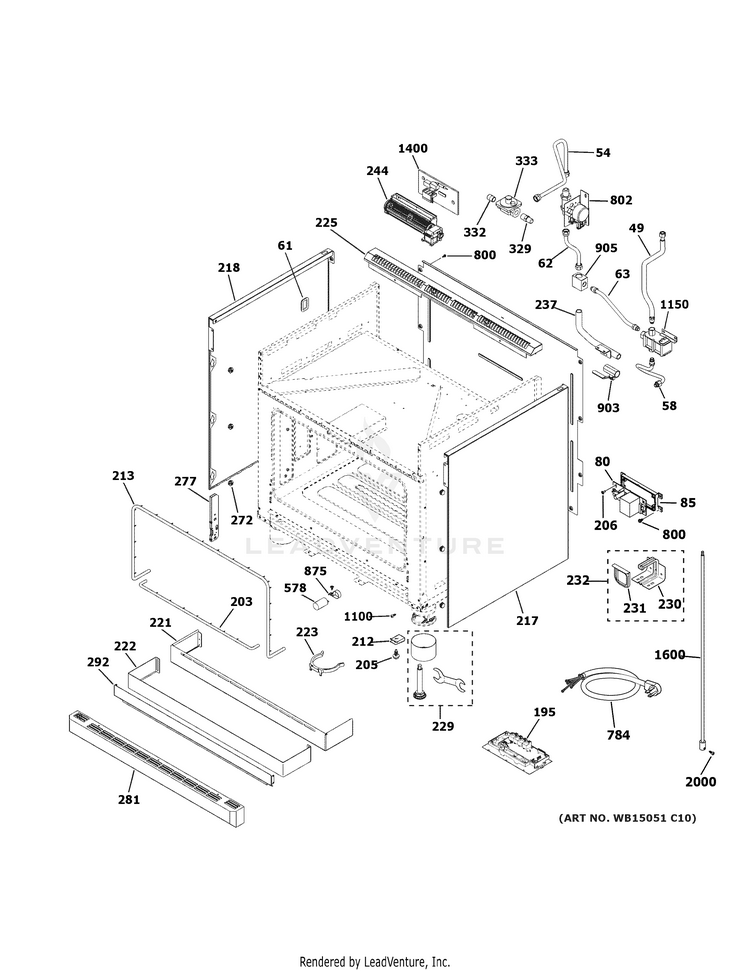

BODY PARTS

...
...
49
TUBE BROIL SUPPLY ASM GEH-WB28X27152
...
54
TUBE COOKTOP SUPPLY ASM GEH-WB28K10665
...
58
TUBE BAKE SUPPLY ASM GEH-WB28X27155
...
61
BUSHING WIRE GEH-WB02K10203
...
62
TUBE LOCKOUT VALVE ASM GEH-WB28K10671
...
63
TUBE VALVE SUPPLY ASM GEH-WB28X27156
...
80
LED POWER SUPPLY GEH-WB25K10013
...
85
BRACKET POWER SUPPLY GEH-WB02K10296
...
195
RELAY BOARD ASM GEH-WB19K10063
...
203
GASKET FRAME FRONT GEH-WB04K10032
...
205
BOTTOM OVEN SCREW GEH-WB01K0005
...
206
SCREW GEH-WB01K10091
...
212
SPEEDNUT GEH-WB01K0002
...
213
GASKET FRAME FRONT GEH-WB02K10195
...
217
PANEL SIDE GEH-WB63K10263
...
218
PANEL SIDE GEH-WB63K10264
...
221
TOE KICK TOP GEH-WB07K10443
...
222
TOE KICK BOTTOM GEH-WB07K10444
...
223
CLIP TOE KICK GEH-WB02K10225
...
225
TRIM VENT ASM GEH-WB07K10453
...
229
KIT LEG GEH-WB49X24032
...
230
BRACKET ANTI TIP GEH-WB02K10237
...
231
BRACE ANTI TIP GEH-WB02K10224
...
232
BRACKET ASM ANTI-TIP GEH-WB02K10258
...
237
PIPE SUPPLY ASM GEH-WB28K10667
...
244
BLOWER TANGENTIAL 45MM GEH-WB26K10012
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
RECEIVER HINGE GEH-WB10T10083
...
281
ACCESS PANEL GEH-WB07K10442
...
292
PANEL ACCESS BACK GEH-WB07X30026
...
329
ADAPTER FLARE FITTING GEH-WB02K10228
...
332
NIPPLE GEH-WB02K10301
...
333
REGULATOR GEH-WB21K10135
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
784
LINE CORD GEH-WB18K10070
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
802
VALVE LOCKOUT MOTORIZED GEH-WB21K10154
...
875
BRACKET CAPACITOR GEH-WB02T10194
...
903
VALVE SHUT OFF GEH-WB19K10038
...
905
INLET BLOCK GEH-WB28K10662
...
1100
SCR 10-16 AB PNT20 1/2 S GEH-WR01X10590
...
1150
SAFETY VALVE ASM GEH-WB21K10153
...
1400
REED SWITCH PCB GEH-WB27K10367
...
1600
ROD EXTENSION GEH-WB02K10392
...
2000
SCR 10-32 TRP 1/2 GEH-WB01K10100
...
...
...
...
...
