GE Monogram ZGP364LDN1SS Gas Range Or Dual Fuel

Model: ZGP364LDN1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

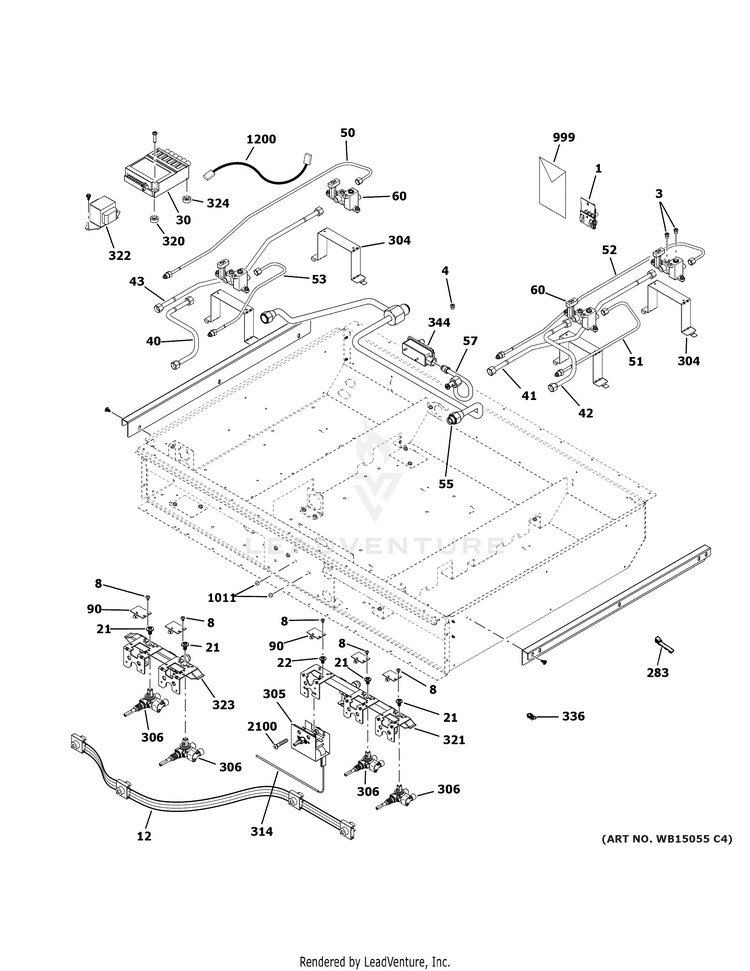

GAS & BURNER PARTS

...
...
1
CARRIER ORIFICE ASM GEH-WB28K10640
...
1
CARRIER ORIFICE ASM GEH-WB28K10639
...
1
HI ALTITUDE ORIFICE KIT GEH-WB28K10553
...
3
SPUD BAKE ORIFICE GEH-WB28K10832
...
3
ORIFICE SPUD (NG MAIN) GEH-WB28T10155
...
3
ORIFICE SPUD (NG SIMMER) GEH-WB28T10159
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10118
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10117
...
4
SPUD ORIFICE GRIDDLE GEH-WB28K10531
...
8
SCREW 8-32 GEH-WB01K10002
...
12
HARNESS BURNER BOX GEH-WB24K10084
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
22
SCR 8 HD 1/4-20 GEH-WB01K10109
...
30
MODULE SPARK GEH-WB13X27483
...
40
TUBE AND NUT ASM GEH-WB28K10492
...
41
TUBE AND NUT ASM GEH-WB28K10493
...
42
TUBE AND NUT ASM GEH-WB28K10494
...
43
TUBE AND NUT ASM GEH-WB28K10495
...
50
TUBE AND NUT ASM GEH-WB28K10496
...
51
TUBE AND NUT ASM GEH-WB28K10497
...
52
TUBE AND NUT ASM GEH-WB28K10498
...
53
TUBE AND NUT ASM GEH-WB28K10499
...
55
TEE SWAGED ASM GEH-WB28K10535
...
57
TUBE GRIDDLE AND NUT ASM GEH-WB28K10500
...
60
INJET BURNER 18K GEH-WB28T10114
...
90
LED ASM GEH-WB25K10012
...
283
CLIP CABLE GEH-WB02K0031
...
304
BRACKET INJET GEH-WB02K10192
...
305
SWITCH THERMOSTAT GEH-WB24K10082
...
306
VALVE DUAL GEH-WB21K10165
...
314
THERMOSTAT GEH-WB21K10124
...
320
GROMMET HANDLE GEH-WB01K0010
...
321
PIPE MANIFOLD ASM GEH-WB28K10536
...
322
TRANSFORMER GEH-WB27K10298
...
323
PIPE MANIFOLD ASM GEH-WB28K10502
...
324
SPACER-HANDLE GEH-WB01K10020
...
336
CLIP WIRE GEH-WB02X7066
...
344
VALVE SAFETY GEH-WB19K10036
...
999
PM OWNERS MANUAL GEH-49-85246
...
999
PM OWNERS MANUAL GEH-49-85180-3
...
999
PM HELPFUL-HINTS GEH-31-10757
...
999
PM INSTALL INSTRUCTIONS GEH-31-11125
...
999
PM INSTALL INSTRUCTIONS GEH-31-10766
...
999
PM INSTALL INSTRUCTIONS GEH-31-10755-2
...
1011
NUT KEPS 6-32 SPECIAL GEH-WB01T10086
...
1200
HARNESS HV GEH-WB18K10050
...
2100
SCR 8-32 CA TRP 7/8 S NI GEH-WB01K10101
...
...
...
...
...
