GE Monogram ZDP486NDN1SS Gas Range Or Dual Fuel

Model: ZDP486NDN1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

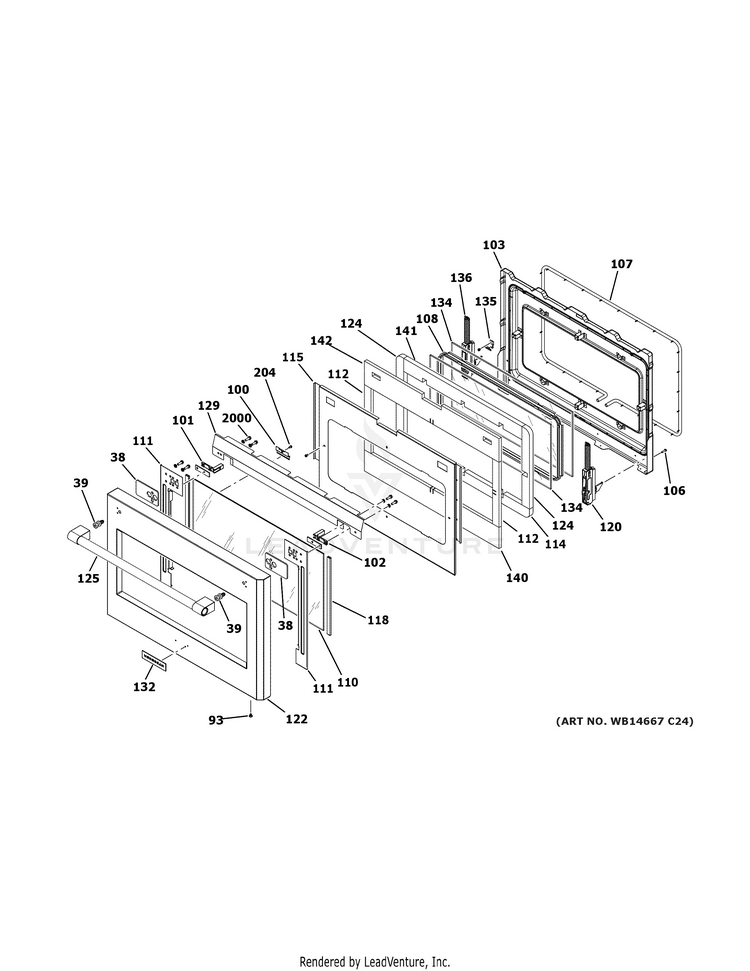

LARGE DOOR ASSEMBLY

...
...
38
PAD END CAP GEH-WB02X31822
...
39
FASTENER DOOR HANDLE GEH-WR01X11007
...
93
SCREW (CR) GEH-WB01X5364
...
100
BRACKET GLASS GEH-WB02K10218
...
101
BRACKET HANDLE LEFT GEH-WB34X31807
...
102
BRACKET HANDLE RIGHT GEH-WB34X31805
...
103
LINER OVEN DOOR ASM 27 GEH-WB55K10061
...
106
SCR 10-32 TR T 7/8 S GEH-WB01K10089
...
107
GASKET DOOR 27" GEH-WB02K10221
...
108
SPACER WINDOW GEH-WB34K10109
...
110
GLASS DOOR 27" GEH-WB57K10135
...
111
SUPPORT OUTER GLASS RIGHT GEH-WB34X31806
...
111
SUPPORT OUTER GLASS LEFT GEH-WB34X31808
...
112
FT INSUL DOOR SIDE GEH-WB35K10174
...
114
RR INSUL DOOR BTM 27" GEH-WB35K10186
...
115
GUARD INSULATION GEH-WB55K10059
...
118
PAD DOOR GEH-WB04K10028
...
120
HINGE DOOR RT(48) GEH-WB10K10015
...
122
STAINLESS STEEL OVEN DOOR PANEL GEH-WB56X35067
...
124
RR INSUL DOOR SIDE GEH-WB35K10181
...
125
48 HANDLE AND END CAP GEH-WB15X35069
...
129
HEAT DEFLECTOR GEH-WB02K10260
...
132
BADGE MONOGRAM GEH-WB02X35125
...
134
GLASS DOOR GEH-WB57K10138
...
135
CLIP WINDOW GEH-WB02K10222
...
136
HINGE DOOR LT(48) GEH-WB10K10016
...
140
FT INSUL DOOR BTM 27" GEH-WB35K10178
...
140
VENT GRIDDLE GEH-WB07K10418
...
141
RR INSUL DOOR TOP 27" GEH-WB35K10183
...
141
COVER GEH-WB07K10431
...
142
FT INSUL DOOR TOP 27" GEH-WB35K10175
...
142
BURNER GRIDDLE GEH-WB28K10636
...
204
SCREW (BLK) GEH-WB01K0042
...
2000
SCR 10-32 TRP 1/2 GEH-WB01K10100
...
...
...
...
...
