GE Monogram ZDP486NDN1SS Gas Range Or Dual Fuel

Model: ZDP486NDN1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

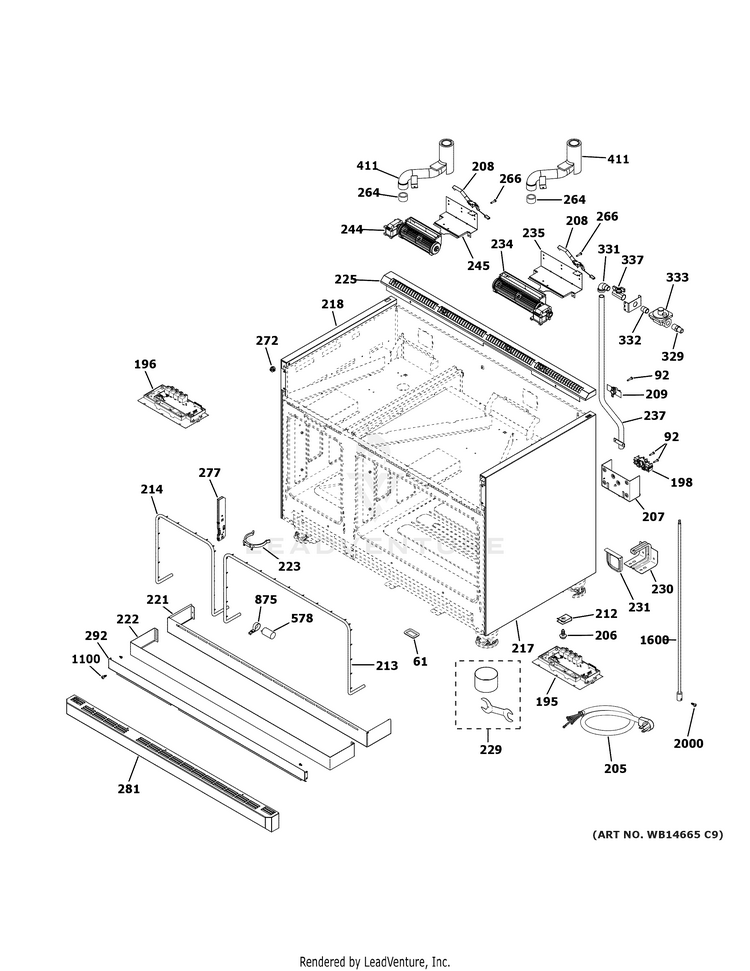

BODY PARTS

...
...
61
BUSHING WIRE GEH-WB02K10203
...
92
SCREW GROUND GEH-WB01X1261
...
195
RELAY BOARD ASM RT GEH-WB19K10061
...
196
RELAY BOARD ASM LF GEH-WB19K10060
...
198
BLOCK TERMINAL ASM GEH-WB27X32415
...
198
TERMINAL BLOCK ASM GEH-WB18K10049
...
205
POWER CORD 240 V GEH-WB18K10051
...
206
BOTTOM OVEN SCREW GEH-WB01K0005
...
207
BRACKET KNOCKOUT GEH-WB02K10207
...
208
SWITCH SAIL ASM GEH-WB21K10130
...
209
SWITCH HIGH LIMIT GEH-WB21K10127
...
212
SPEEDNUT GEH-WB01K0002
...
213
GASKET FRAME FRONT GEH-WB02K10195
...
214
GASKET FRAME FRONT GEH-WB02K10194
...
217
PANEL SIDE GEH-WB63K10265
...
218
PANEL SIDE GEH-WB63K10266
...
221
TOE KICK TOP GEH-WB07K10448
...
222
TOE KICK BOTTOM GEH-WB07K10449
...
223
CLIP TOE KICK GEH-WB02K10225
...
225
TRIM VENT ASM GEH-WB07K10446
...
229
KIT LEG GEH-WB49X24032
...
230
BRACKET ANTI TIP GEH-WB02K10237
...
231
BRACE ANTI TIP GEH-WB02K10224
...
234
BLOWER TANGENTIAL 45MM GEH-WB26K10010
...
235
FAN BRACKET GEH-WB02K10230
...
237
PIPE SUPPLY ASM GEH-WB28K10506
...
244
BLOWER TANGENTIAL 45MM GEH-WB26K10009
...
245
FAN BRACKET GEH-WB02K10229
...
264
SUPPORT CATALYST GEH-WB35K10028
...
266
SCREW SWITCH 5/8 S GEH-WZ05X0124
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
RECEIVER HINGE GEH-WB10T10083
...
281
ACCESS PANEL GEH-WB07K10447
...
292
PANEL ACCESS BACK GEH-WB07X30025
...
329
ADAPTER FLARE FITTING GEH-WB02K10228
...
331
STREET ELBOW GEH-WB02K10226
...
332
NIPPLE GEH-WB02K10227
...
333
REGULATOR GEH-WB21K10129
...
337
VALVE SHUT OFF GEH-WB19K10038
...
411
VENT EXTENSION GEH-WB38K10020
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
875
BRACKET CAPACITOR GEH-WB02T10194
...
1100
SCR 10-16 AB PNT20 1/2 S GEH-WR01X10590
...
1600
ROD EXTENSION GEH-WB02K10392
...
2000
SCR 10-32 TRP 1/2 GEH-WB01K10100
...
...
...
...
...
