GE Caf CWB713P2N1S1 Microwave

Model: CWB713P2N1S1

Save
 Part Not Listed?Part Not Listed?
product name

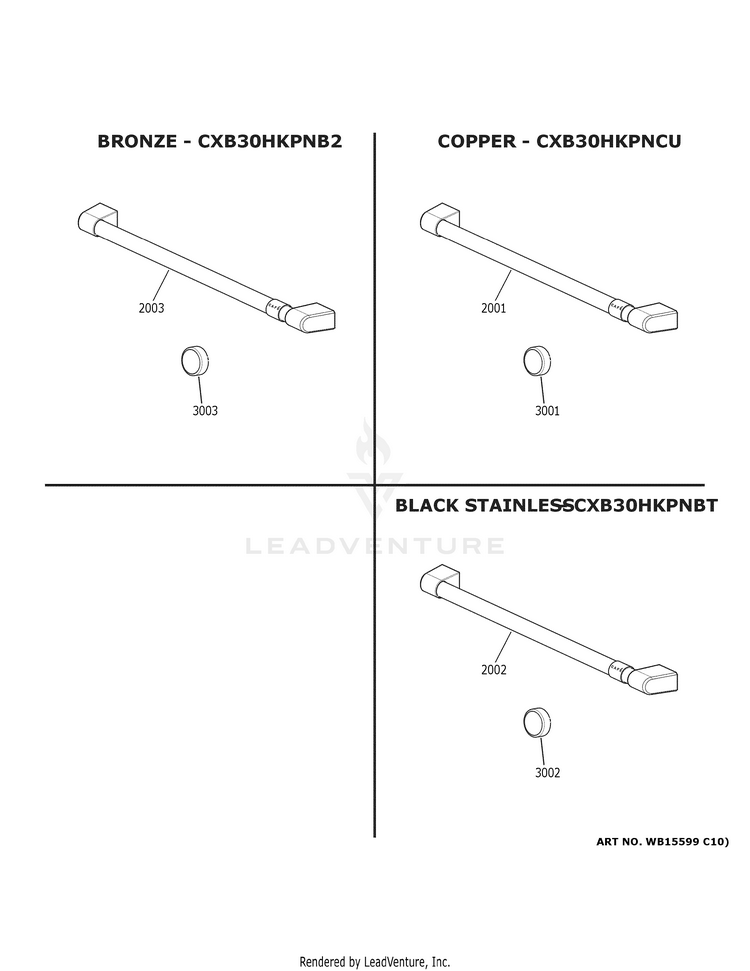

CAFE CUSTOMIZATION

...
...
2001
COPPER HANDLE W/CAFE BAND GEH-WB15X33368
...
2002
BLACK STAINLESS HANDLE W/CAFE BAND GEH-WB15X33366
...
2003
BRONZE HANDLE W/CAFE BAND GEH-WB15X33367
...
3001
COPPER MICROWAVE KNOB GEH-WB03X33369
...
3002
BLACK STAINLESS MICROWAVE KNOB GEH-WB03X33372
...
3003
BRONZE MICROWAVE KNOB GEH-WB03X33370

CONTROL PARTS

...
...
23
CONTROL BOARD BRACKET GEH-WB02X32630
...
68
STAINLESS STEEL MICROWAVE CONTROL PANEL GEH-WB56X33307
...
97
HOLDER DISPLAY GEH-WB02X32855
...
1600
DIGITRON GEH-WB27X10856
...
1603
INDICATOR GEH-WB27X30032
...
1605
LED (ENCODER) BOARD GEH-WB27X32846
...
1615
MAIN BOARD GEH-WB27X32915
...
1652
POWER BOARD GEH-WB27X32842
...
1653
RELAY BOARD GEH-WB27X32916
...
2008
BOARD SUPPORTER GEH-WB02X32634
...
3004
KNOB ASM GEH-WB03X10281

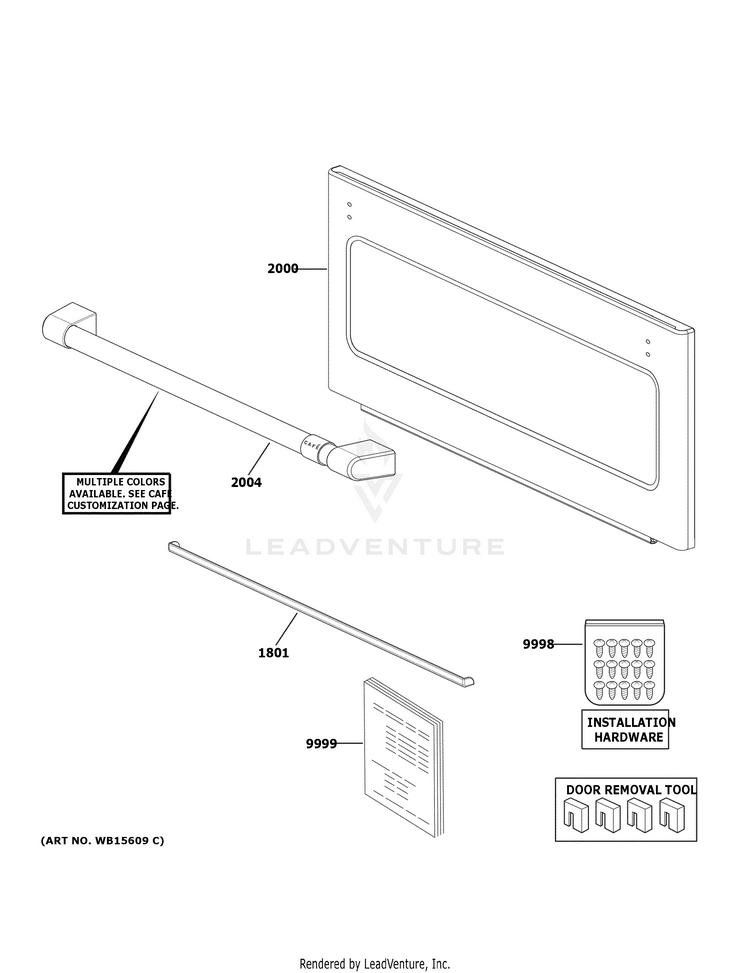

DOOR PARTS

...
...
1801
BARRIER SS GEH-WB07X32844
...
2000
STAINLESS STEEL MICROWAVE DOOR GEH-WB56X33311
...
2004
STAINLESS STEEL MICROWAVE HANDLE GEH-WB15X33310
...
9998
INSTALLATION HARDWARE GEH-WB01X32574
...
9999
PM INSTALL INSTRUCTIONS GEH-31-2000001
...
9999
PM OWNERS MANUAL GEH-49-2000552
...
9999
PM MINI MANUAL GEH-31-30816

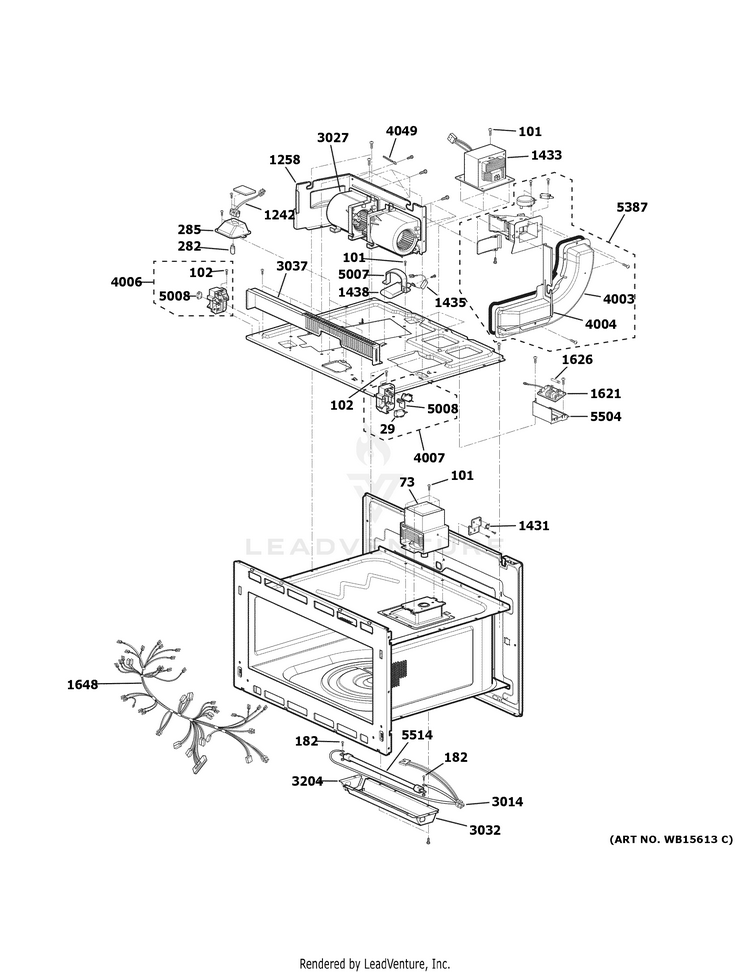

INSULATOR PARTS

...
...
29
SWITCH MONITOR INTERLOCK GEH-WB24X25397
...
73
MAGNETRON GEH-WB26X32629
...
101
SCREW - BINDING HEAD GEH-WB02X10745
...
102
SCREW GEH-WB01X10121
...
182
SCREW -LEAD WIRE ASSY GEH-WB02X10726
...
282
LAMP HALOGEN GEH-WB25X25393
...
285
LIGHT COVER GEH-WB34X32583
...
1242
HOLDER ASM GEH-WB06X10646
...
1258
MOTOR BRACKET GEH-WB02X32599
...
1431
THERMOSTAT GEH-WB20X10048
...
1433
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
1435
DIODE GEH-WB27X10892
...
1438
CAPACITOR, H.V GEH-WB27X10701
...
1621
NOISE FILTER GEH-WB27X27311
...
1626
FUSE GEH-WB27X10928
...
1648
HARNESS SINGLE GEH-WB18X32918
...
3014
HARNESS WIRE GEH-WB18X32597
...
3027
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
3032
REFLECTOR GEH-WB02X32581
...
3037
MICROWAVE PROTECTOR GEH-WB34X32592
...
3204
BRACKET HEATER GEH-WB02X32682
...
4003
DUCT ASM GEH-WB34X32594
...
4004
BARRIER BRACKET GEH-WB02X32590
...
4006
LATCH BODY ASM LEFT GEH-WB10X33305
...
4007
LATCH BODY ASM RIGHT GEH-WB10X33309
...
4049
HOLDER WIRE GEH-WB02X11233
...
5007
CAPACITOR BRACKET GEH-WB02X32593
...
5008
SW PRIM INTERLOCK & DOOR GEH-WB24X10047
...
5387
DUCT ASM GEH-WB34X32608
...
5504
SUPPORT GEH-WB02X32601
...
5514
HEATER MIRACLON GEH-WB21X10141

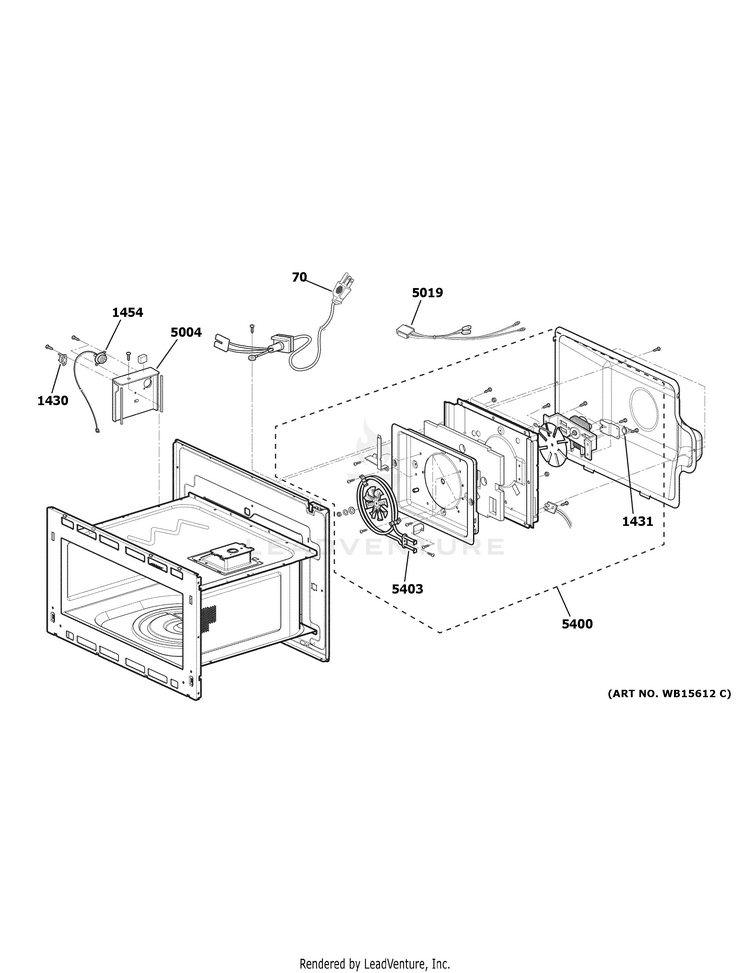

INTERIOR PARTS

...
...
70
POWER CORD ASM GEH-WB18X32845
...
1430
THERMOSTAT GEH-WB21X10149
...
1431
THERMOSTAT GEH-WB20X10048
...
1454
SENSOR ASM GEH-WB27X10857
...
5004
AIR TUNNEL GEH-WB34X32602
...
5019
HARNESS WIRE GEH-WB18X32598
...
5400
CONVECTION ASM GEH-WB28X33306
...
5403
HEATER SHEATH GEH-WB44X10050

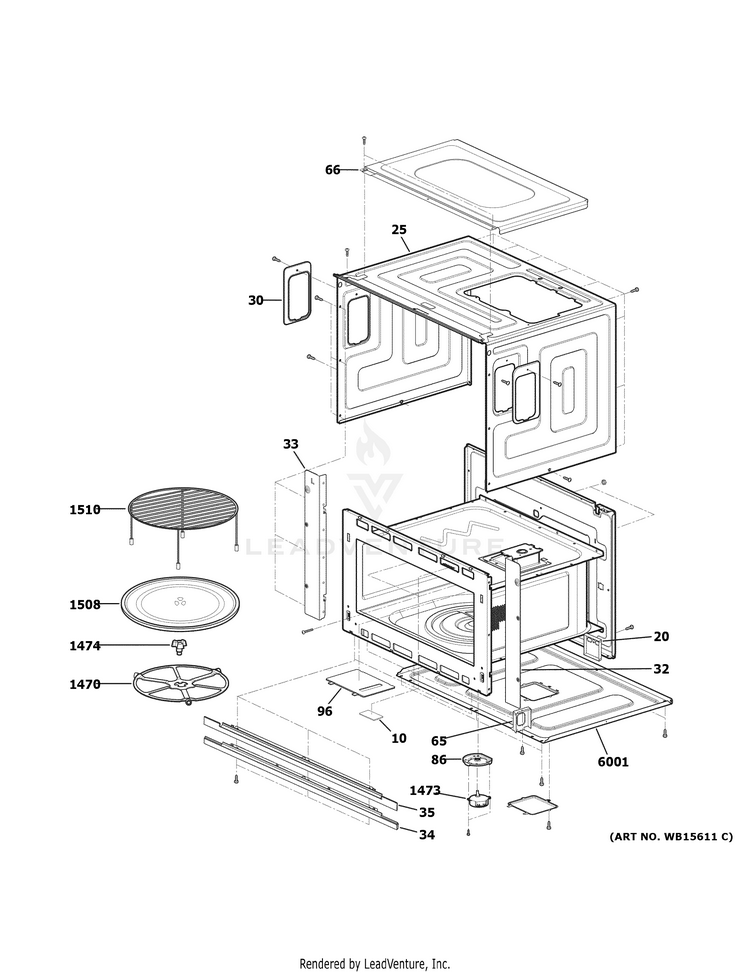

OVEN CAVITY PARTS

...
...
10
SEAL TAPE GEH-WB02X32576
...
20
BRACKET GEH-WB02X32587
...
25
OUTER CASE FLAT GEH-WB56X32578
...
30
DOOR SWITCH ACCESS COVER GEH-WB34X32584
...
32
TRIM RH GEH-WB07X32622
...
33
TRIM LH GEH-WB07X32627
...
34
TRIM, BOTTOM GEH-WB07X32854
...
35
PLATE,BOTTOM GEH-WB07X32843
...
65
BRACKET GEH-WB02X32591
...
66
TOP COVER GEH-WB06X32851
...
86
MOUNT GEH-WB34X32596
...
96
CANOPY MICA GEH-WB06X10638
...
1470
ROTATING RING ASM GEH-WB06X10651
...
1473
MOTOR TURNTABLE GEH-WB26X10193
...
1474
SHAFT ASM GEH-WB06X10693
...
1508
TRAY GLASS GEH-WB49X10166
...
1510
RACK GEH-WB49X10213
...
6001
BASE PLATE GEH-WB63X32850
...
...
...
...
...
