GE Caf CSB912M2N1S5 Microwave

Model: CSB912M2N1S5

Save
 Part Not Listed?Part Not Listed?
product name

CONTROL PARTS

...
...
211
RJ 45 CONNECTOR AND HARNESS GEH-WB18X33397
...
212
SINGLE HARNESS GEH-WB18X33399
...
213
SINGLE HARNESS GEH-WB18X33398
...
2006
MAIN POWER CONTROL BOARD GEH-WB27X33406
...
2008
CONTROL BOARD BRACKET GEH-WB34X33405
...
2009
POWER CONTROL BOARD ASM GEH-WB27X33402
...
2011
MODULE POWER CONTROL BOARD GEH-WB27X33403
...
2031
POWER CONTROL BOARD ASM GEH-WB27X33404
...
2045
SINGLE HARNESS GEH-WB18X33401
...
2051
BOARD SUPPORTER GEH-WB02X32634
...
2381
STAINLESS STEEL CONTROLER GEH-WB56X33506
...
2555
SPEAKER GEH-WB27X33396

DOOR PARTS

...
...
1009
STAINLESS STEEL DOOR HANDLE GEH-WB15X33511
...
1388
STAINLESS STEEL DOOR GEH-WB56X33507
...
1389
HINGE ASM GEH-WB10X33508
...
9382
INSTALLATION HARDWARE GEH-WB01X32574
...
9999
PM OWNERS MANUAL GEH-49-2000417
...
9999
PM INSTALL INSTRUCTIONS GEH-31-2000355
...
9999
PM MINI MANUAL AND WIRING GEH-31-2000633
...
9999
PM QUICK OWNERS MANUAL GEH-49-2000597

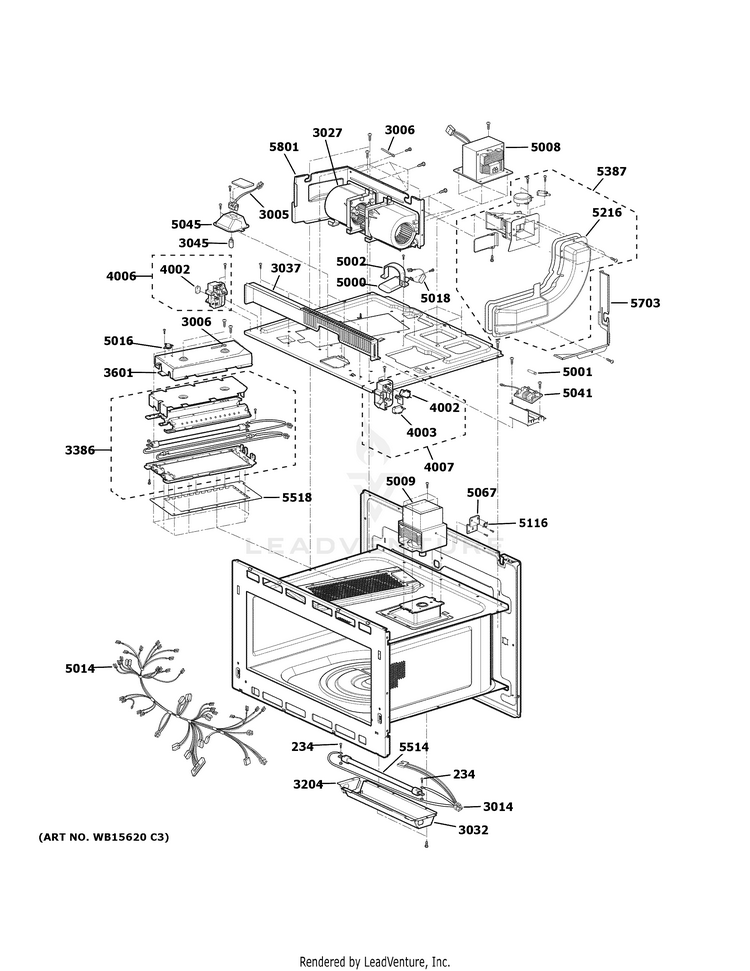

INSULATOR PARTS

...
...
234
SCREW GEH-WB02X33509
...
3005
HOLDER ASM GEH-WB06X10646
...
3006
HOLDER WIRE GEH-WB02X11233
...
3014
HARNESS WIRE GEH-WB18X32597
...
3027
MOTOR(CIRC) CIRCULATION GEH-WB26X10182
...
3032
REFLECTOR GEH-WB02X32581
...
3037
MICROWAVE PROTECTOR GEH-WB34X32592
...
3045
LAMP HALOGEN GEH-WB25X25393
...
3204
BRACKET HEATER GEH-WB02X32682
...
3386
HEATER ASSEMBLY GEH-WB44X33391
...
3601
HEATER COVER GEH-WB34X32589
...
4002
SW PRIM INTERLOCK & DOOR GEH-WB24X10047
...
4003
SWITCH MONITOR INTERLOCK GEH-WB24X25397
...
4006
LATCH BODY ASM LEFT GEH-WB10X33305
...
4007
LATCH BODY ASM RIGHT GEH-WB10X33309
...
5000
CAPACITOR, H.V GEH-WB27X10701
...
5001
FUSE GEH-WB27X10928
...
5002
CAPACITOR BRACKET GEH-WB02X32593
...
5008
TRANSFORMER,HIGH VOLTAGE GEH-WB17X10030
...
5009
MAGNETRON GEH-WB26X32629
...
5014
SINGLE HARNESS GEH-WB18X33394
...
5016
THERMOSTAT GEH-WB21X10149
...
5018
DIODE GEH-WB27X10892
...
5041
NOISE FILTER BOARD GEH-WB02X33400
...
5045
LIGHT COVER GEH-WB34X32583
...
5067
BRACKET,MISC GEH-WB06X10570
...
5116
THERMOSTAT GEH-WB20X10048
...
5216
DUCT ASM GEH-WB34X32594
...
5387
DUCT ASM GEH-WB34X22117
...
5514
HEATER MIRACLON GEH-WB21X10141
...
5518
BRACKET GEH-WB02X32582
...
5703
BARRIER BRACKET GEH-WB02X32590
...
5801
MOTOR BRACKET GEH-WB02X32599

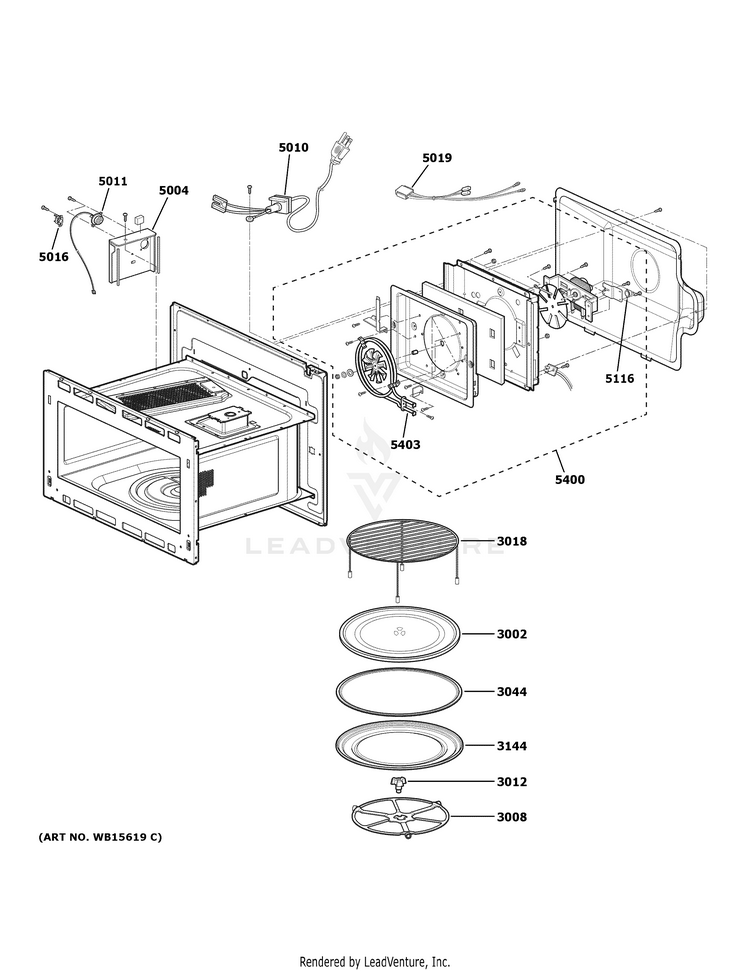

INTERIOR PARTS

...
...
3002
TRAY GLASS GEH-WB49X10166
...
3008
ROTATING RING ASM GEH-WB02X32600
...
3012
SHAFT ASM GEH-WB06X10693
...
3018
RACK GEH-WB49X10213
...
3044
TRAY,METAL GEH-WB49X10187
...
3144
TRAY, METAL BB GEH-WB49X10228
...
5004
AIR TUNNEL GEH-WB34X32602
...
5010
POWER CORD ASM GEH-WB18X32845
...
5011
SENSOR ASM GEH-WB27X10857
...
5016
THERMOSTAT GEH-WB21X10149
...
5019
HARNESS WIRE GEH-WB18X32598
...
5116
THERMOSTAT GEH-WB20X10048
...
5400
CONVECTION ASM GEH-WB28X33306
...
5403
HEATER SHEATH GEH-WB44X10050

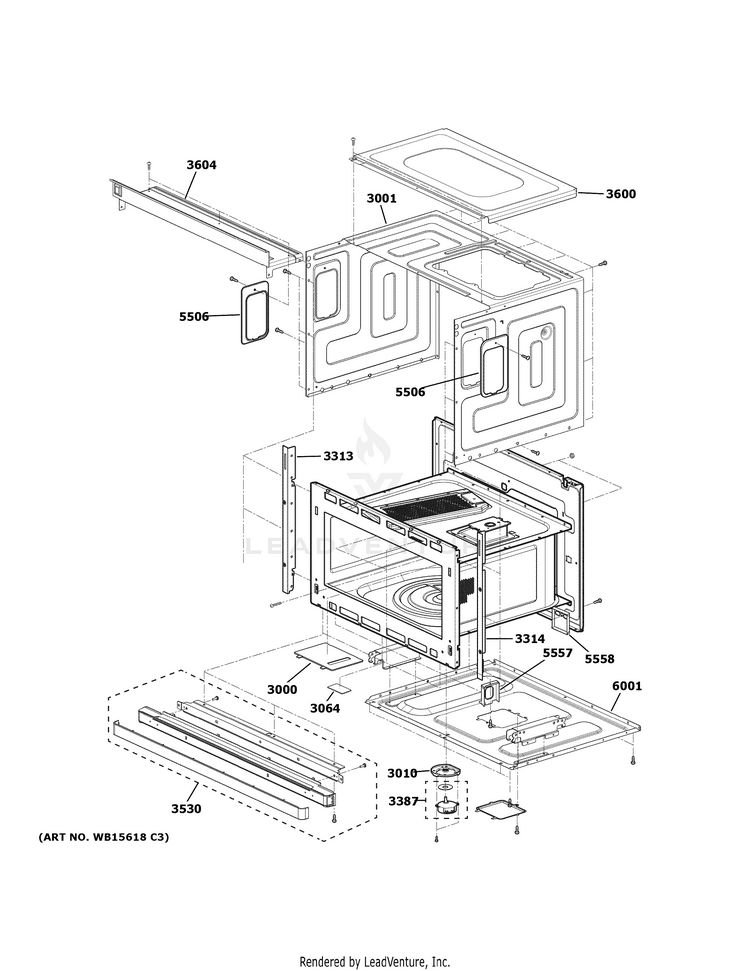

OVEN CAVITY PARTS

...
...
3000
CANOPY MICA GEH-WB06X10638
...
3001
OUTER CASE GEH-WB56X33392
...
3010
MOUNT GEH-WB34X32596
...
3064
SEAL TAPE GEH-WB02X32576
...
3313
TRIM LH BK GEH-WB07X32586
...
3314
TRIM RH BK GEH-WB07X32585
...
3387
TT MOTOR W/ GASKET GEH-WB26X33510
...
3530
TRIM BOTTOM GEH-WB07X33512
...
3600
TOP COVER GEH-WB07X33409
...
3604
CONTROL PANEL ACCESS COVER GEH-WB07X33407
...
5506
DOOR SWITCH ACCESS COVER GEH-WB34X32584
...
5557
BRACKET GEH-WB02X32591
...
5558
BRACKET GEH-WB02X32587
...
6001
PLATE BASE GEH-WB63X33390
...
...
...
...
...
