GE Caf CEB515M2N1S5 Microwave

Model: CEB515M2N1S5

Save
 Part Not Listed?Part Not Listed?
product name

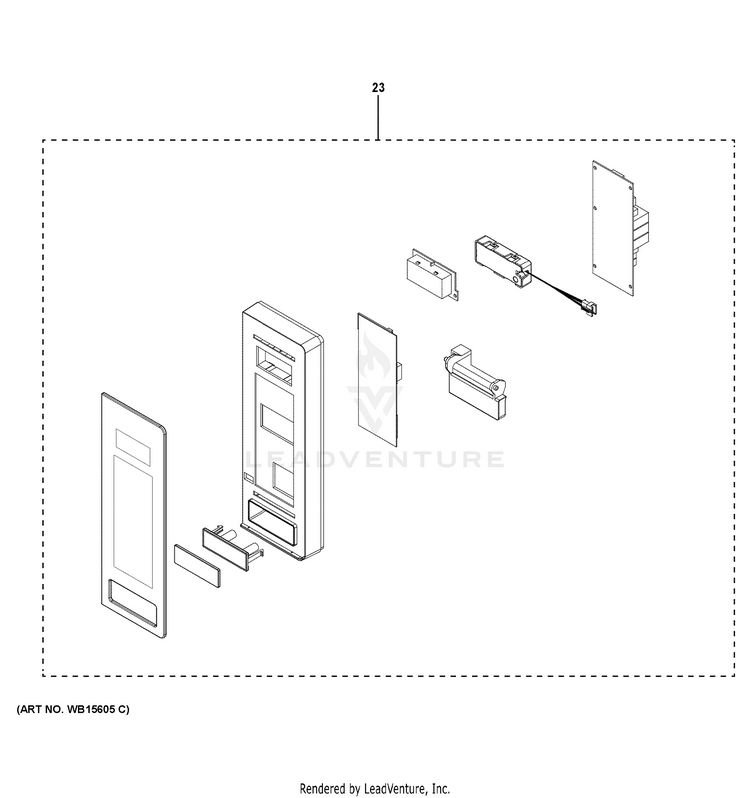

CONTROL PARTS

...
...
23
CONTROL PANEL ASM GEH-WB56X33120

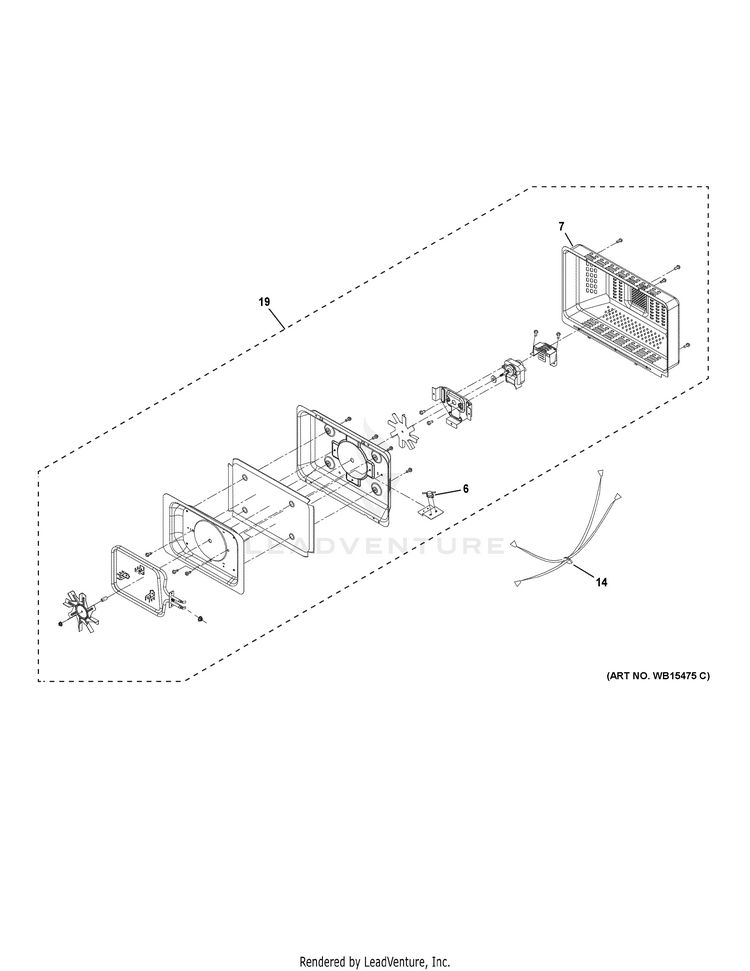

CONVECTION FAN

...
...
6
THERMOSTAT GEH-WB24X27107
...
7
THERMOSTAT, 160/0 GEH-WB27X11210
...
14
CONVECTION HARNESS GEH-WB18X27092
...
19
CONVECTION ASM GEH-WB44X27129

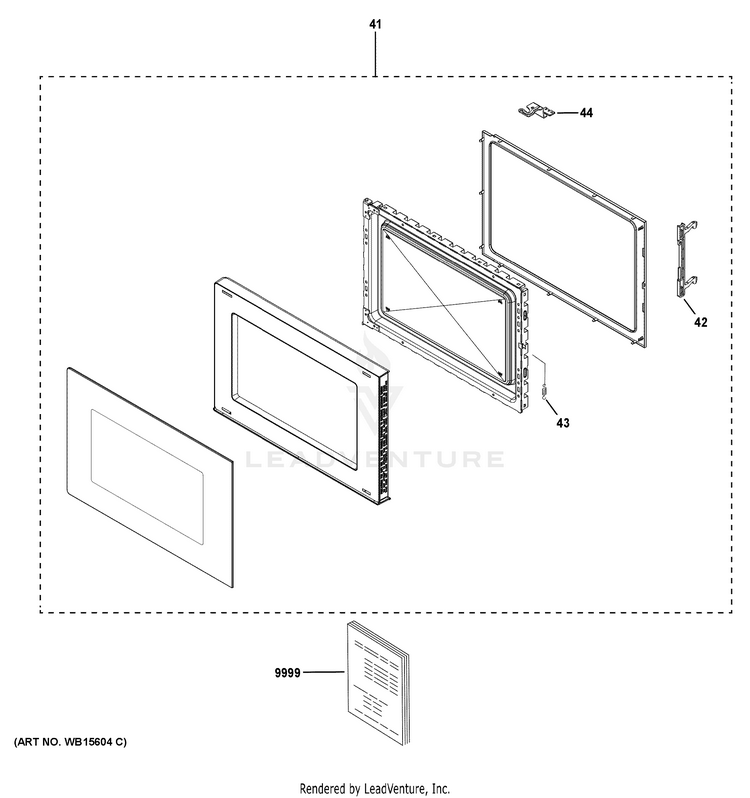

DOOR PARTS

...
...
41
DOOR PANEL ASM GEH-WB56X33119
...
42
DOOR LATCH GEH-WB10X30407
...
43
SPRING, LATCH GEH-WB10X21334
...
44
DOOR HINGE GEH-WB10X27073
...
9999
PM OWNERS MANUAL GEH-49-40786
...
9999
MINI MANAUL GEH-31-30710

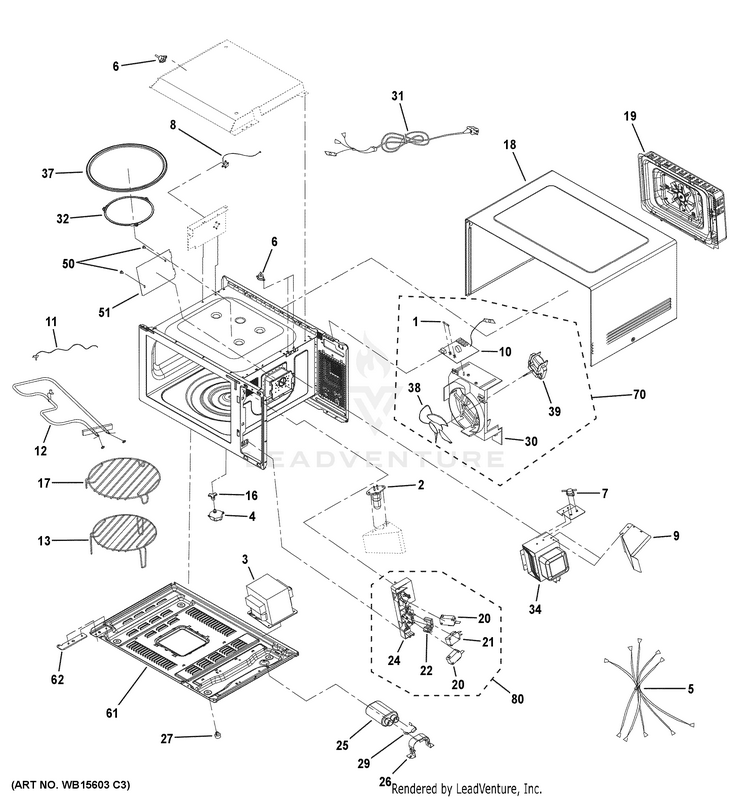

OVEN CAVITY PARTS

...
...
1
FUSE GEH-WB27X11138
...
2
LAMP GEH-WB25X32914
...
3
H.V.TRANSFORMER GEH-WB24X25617
...
4
MOTOR, TURNTABLE GEH-WB26X30161
...
5
MAIN HARNESS GEH-WB18X27083
...
6
THERMOSTAT GEH-WB24X27107
...
7
THERMOSTAT, 160/0 GEH-WB27X11210
...
8
THERMOSTAT 160/0 GEH-WB24X28947
...
9
WIND GUIDE COVER GEH-WB34X27087
...
10
FILTER NOISE GEH-WB27X11140
...
11
TEMPERATURE SENSOR GEH-WB24X27086
...
12
GRILL HEATER GEH-WB44X27077
...
13
GRILL RACK GEH-WB48X27106
...
16
COUPLER GEH-WB02X30461
...
17
CONVECTION RACK GEH-WB48X27105
...
18
OUTER CASE SS GEH-WB56X27098
...
19
CONVECTION ASM GEH-WB44X27129
...
20
MICRO SWITCH(STAND ON) GEH-WB24X10146
...
21
SWITCH MONITOR GEH-WB24X28942
...
22
LEVER SWITCH GEH-WB06X10864
...
24
BOARD LATCH GEH-WB14X10049
...
25
H.V. CAPACITOR GEH-WB27X27078
...
26
BRACKET GEH-WB06X10933
...
27
FOOT GEH-WB01X27076
...
29
HVDIODE GEH-WB27X10849
...
30
FAN GUIDE GEH-WB39X10031
...
31
POWER CORD ASM GEH-WB18X27084
...
32
ROTATING RING ASM GEH-WB02X27104
...
34
MAGNETRON GEH-WB27X11211
...
37
TRAY GEH-WB39X10032
...
38
FAN GEH-WB06X10860
...
39
FAN MOTOR GEH-WB26X10253
...
50
PLASTIC NAIL GEH-WB01X10418
...
51
COVER WAVE GUID GEH-WB39X10034
...
61
BASE PLATE GEH-WB63X27070
...
62
LOWER HINGE GEH-WB10X27081
...
70
FAN GUIDE ASM GEH-WB63X32041
...
80
LATCH ASM GEH-WB10X32040
...
...
...
...
...
