GE CHS985SEL2SS Electric Range

Model: CHS985SEL2SS

Save
 Part Not Listed?Part Not Listed?
product name

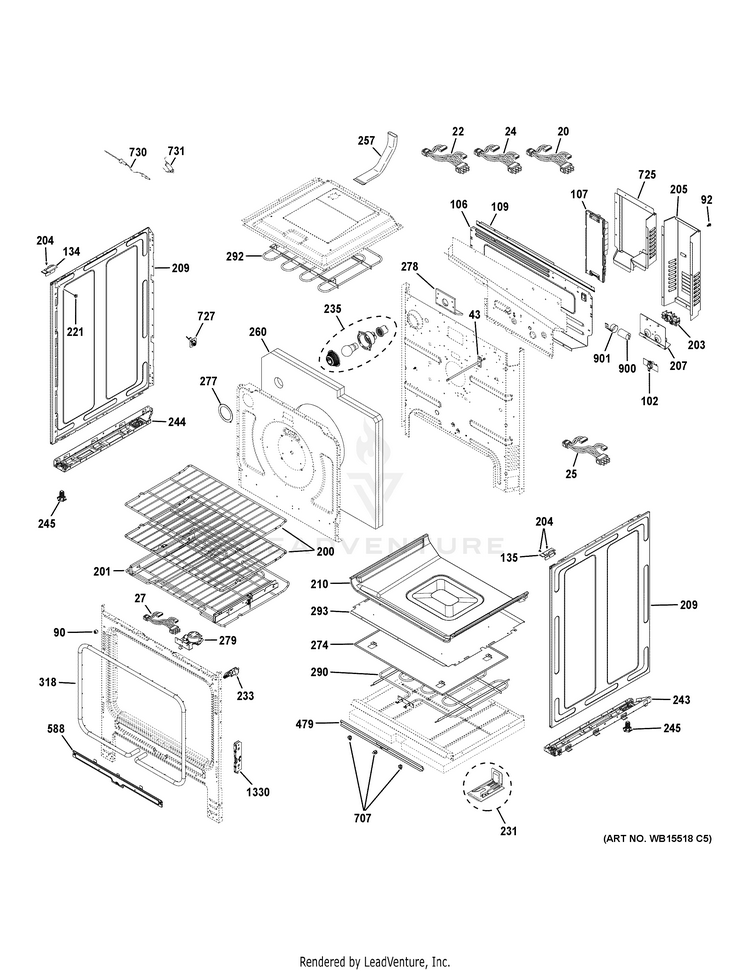

BODY PARTS

...
...
20
HARNESS MAIN GEH-WB18X31602
...
22
DC HARNESS GEH-WB18X28693
...
24
HARNESS BLOWER GEH-WB18X31604
...
25
HARNESS HIDDEN BAKE GEH-WB18X31616
...
27
HARNESS LATCH GEH-WB18X31606
...
43
SENSOR ASM. GEH-WB24X5340
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
92
SCREW GROUND GEH-WB01X1261
...
102
SWITCH HIGH LIMIT GEH-WB24X29505
...
106
COVER BACK GEH-WB34X28978
...
107
MACHINE BOARD WITH FRAME (SERVICE) GEH-WB27X29496
...
109
BACKGUARD COMPLEMENT GEH-WB34X28912
...
134
FRONT SUPPORT LH GEH-WB34X28750
...
135
FRONT SUPPORT RH GEH-WB34X28748
...
200
OVEN RACK GEH-WB48X21508
...
201
RACK OVEN SLIDE ASM GEH-WB48X20990
...
203
TERMINAL BLOCK ASM GEH-WB17T10011
...
204
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
205
COVER MOTOR GEH-WB34K10099
...
207
TERMINAL BLOCK BRACKET GEH-WB18X28834
...
209
PANEL SIDE GEH-WB56X28847
...
210
BOTTOM OVEN GEH-WB35K10209
...
221
GROMMET GEH-WB02K0008
...
231
BRACKET ASM ANTI-TIP GEH-WB02K10386
...
233
PLUNGER SWITCH GEH-WB24X27550
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
243
SUPPORT BASE RT GEH-WB63X20215
...
244
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
257
VENT GEH-WB34X28915
...
260
INSULATION OVEN BACK GEH-WB35X28786
...
274
SHIELD DRAWER TOP GEH-WB34X20748
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
278
INSULATON COVER SOCKET GEH-WB35X28791
...
279
LATCH AUTOMATIC GEH-WB10X28793
...
290
ELEMENT BAKE ASM GEH-WB44X21178
...
292
BROIL ELEMENT GEH-WB44X28248
...
293
GUARD INSULATION BOTTOM GEH-WB35X20420
...
318
GASKET OVEN GEH-WB35X29667
...
479
REFLECTOR FRONT GEH-WB34X21711
...
588
COVER FRONT FRAME GEH-WB34X21714
...
707
CLIP WIRE GEH-WB02K10267
...
725
CONTROL COVER GEH-WB34X28674
...
727
PROBE RECEPTACLE & HARNE GEH-WB34K10121
...
730
PROBE THERMISTOR GEH-WB20X5064
...
731
PROBE BLE TEMPERATURE GEH-WB20X28966
...
900
CAPACITOR MOTOR GEH-WB08K10009
...
901
CAPACITOR HOLDER GEH-WB02K10172
...
1330
RECEIVER HINGE GEH-WB10X28563

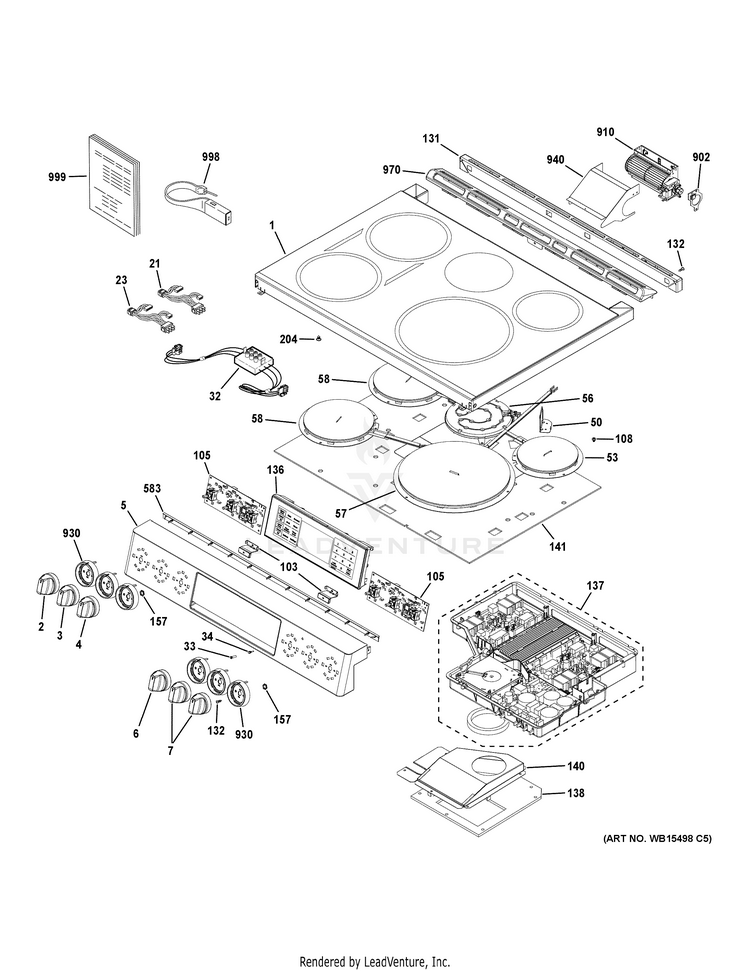

CONTROL PANEL & COOKTOP

...
...
1
RANGE TOP AND GLASS ASM GEH-WB34X28739
...
2
KNOB ASM GEH-WB03X28127
...
3
KNOB ASM GEH-WB03X28124
...
4
KNOB ASM GEH-WB03X28128
...
5
STAINLESS STEEL MANIFOLD PANEL GEH-WB36X32508
...
6
KNOB ASM GEH-WB03X28121
...
7
KNOB ASM GEH-WB03X28122
...
21
HARNESS WZ GEH-WB18X31615
...
23
HARNESS SUPPLIER GEH-WB18X31612
...
32
HARNESS INDUCTION GEH-WB18X31605
...
33
HOT SURFACE INDICATOR GEH-WB02X28779
...
34
INDICATOR SLEEVE GEH-WB25X28917
...
50
INDUCTION DIVIDER GEH-WB34X28918
...
53
ELEMENT INDUCTION 1800W GEH-WB30X28698
...
56
ELEMENT WARMER LOW PRF GEH-WB30X10035
...
57
ELEMENT INDUCTION 3700W GEH-WB30X28699
...
58
ELEMENT INDUCTION 2500W GEH-WB30X21490
...
103
BRACKET GEH-WB34X28908
...
105
PANELIZATION WING KNOB KIT GEH-WB27X29029
...
108
SCREW GEH-WB01K0035
...
131
TRIM KIT GEH-WB07X28824
...
132
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
136
GLASS & TOUCH BOARD ASM GEH-WB56X28189
...
137
INDUCTION CONTROL & GASKET GEH-WB27X30357
...
138
INDUCTION DUCT GASKET GEH-WB34X28919
...
140
DUCT INDUCTION GEH-WB34X28911
...
141
INSULATION MODULE GEH-WB35X28784
...
157
NUT GEH-WB02X28860
...
204
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
583
FRONT GASKET ASM GEH-WB35X28743
...
902
BOARD SENSOR GEH-WB27X28659
...
910
BLOWER TANGENTIAL GEH-WB26X29060
...
930
BRUSHED STAINLESS LIGHT BEZEL KNOB GEH-WB03X31674
...
940
FAN SUPPORT GEH-WB34X28735
...
970
VENT TRIM GEH-WB07X28817
...
998
SOUS VIDE& OWNERS MANUAL GEH-WB24X30408
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM OWNERS MANUAL GEH-49-88070
...
999
PM QUICK GUIDE GEH-49-88067
...
999
PM INSTALL INSTRUCTIONS GEH-31-11058
...
999
PM WI FI INSTRUCTIONS GEH-31-11013

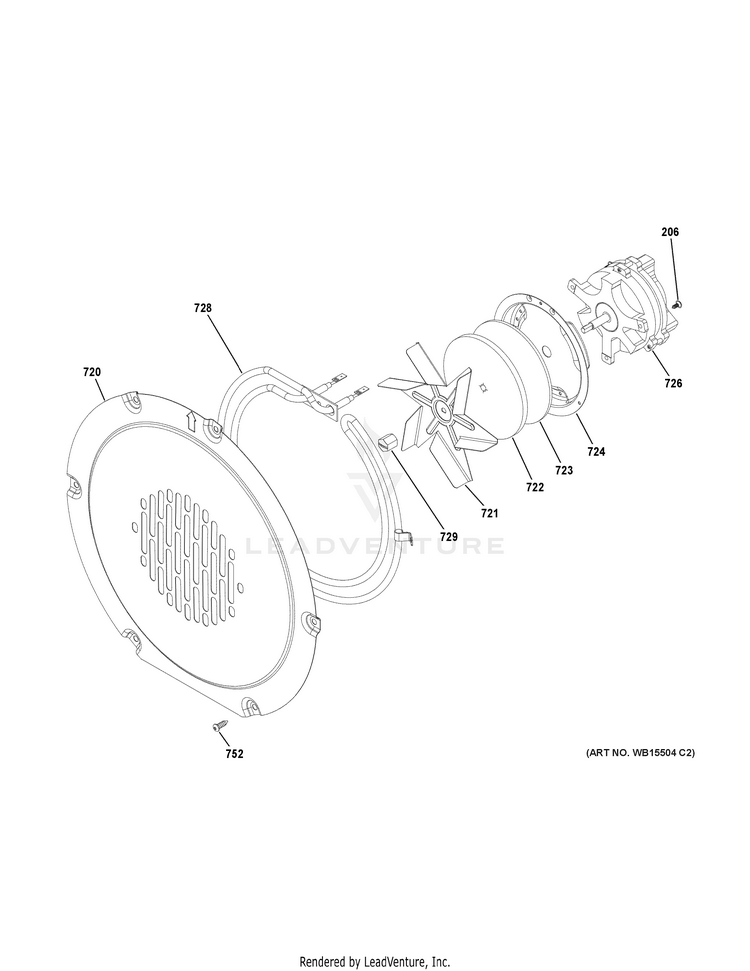

CONVECTION FAN

...
...
206
SCREW GEH-WB01K10091
...
720
FAN COVER GEH-WB34X28703
...
721
BLADE FAN GEH-WB2X8351
...
722
FAN INSULATOR GEH-WB35X20989
...
723
FAN INSULATION GEH-WB35K10013
...
724
FAN SUPPORT GEH-WB02K10170
...
726
MOTOR PSC CONV GEH-WB26X25118
...
728
HEAT ELEMENT CONVECTION GEH-WB44X29061
...
729
NUT GEH-WB02T10017
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345

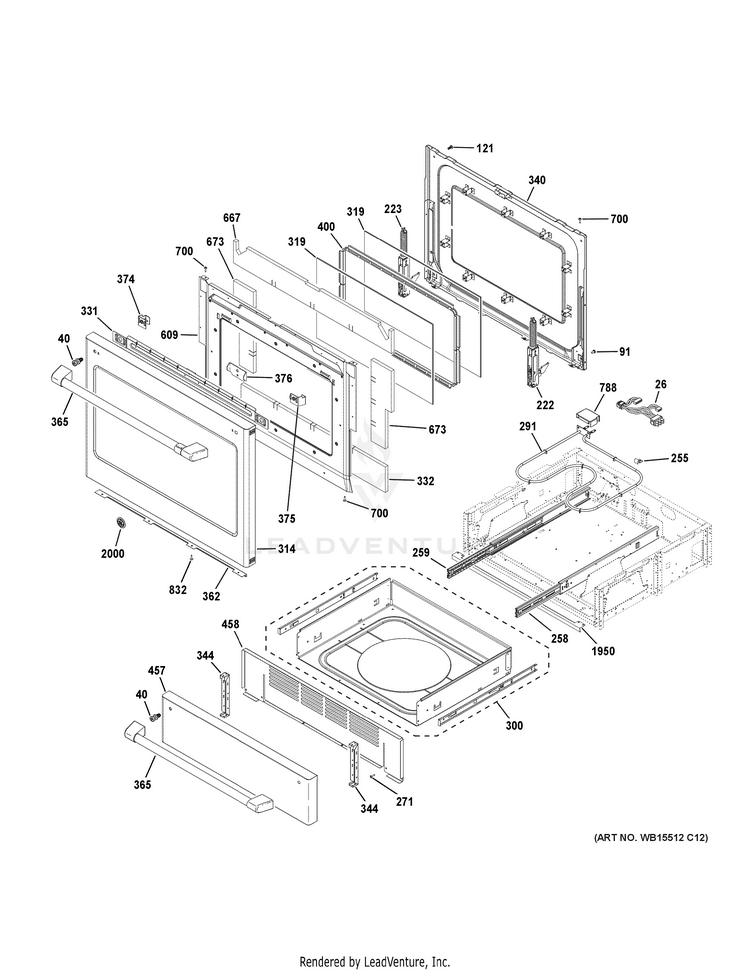

DOOR & DRAWER PARTS

...
...
26
HARNESS WARMING DRAWER GEH-WB18X31613
...
40
FASTENER DOOR HANDLE GEH-WR01X11007
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
121
SCREW 12-14, 5/8S GEH-WB01K0078
...
222
DOOR HINGE GEH-WB10X30271
...
223
DOOR HINGE GEH-WB10X26769
...
255
CLAMP-HEAT ELEMENT GEH-WB02K10023
...
258
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
271
SCREW M4X8 GEH-WB01X1189
...
291
HEATING ELEMENT GEH-WB44K10011
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
314
STAINLESS STEEL GLASS & PANEL DOOR GEH-WB56X31636
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
331
PANEL VENT BACKER GEH-WB34X31702
...
332
INSULATION GEH-WB35K10221
...
340
LINER DOOR WELD ASSEMBLY GEH-WB56X24760
...
344
BRACKET DRAWER GEH-WB02X24742
...
362
BARRIER DOOR GEH-WB07X28885
...
365
BRUSHED STAINLESS RANGE HANDLE GEH-WB15X31680
...
374
FASTENER BRACKET GEH-WB34X31703
...
375
FASTENER BRACKET GEH-WB34X31701
...
376
BRACKET BACKER GEH-WB34X31739
...
400
FRAME WINDOW ASSY GEH-WB34X28742
...
457
STAINLESS STEEL DRAWER PANEL GEH-WB56X31644
...
458
LINER DRAWER GEH-WB56X29436
...
609
DOOR GUARD GEH-WB34X24749
...
667
INSULATION DOOR GEH-WB35X20077
...
673
INSULATION GEH-WB35K10222
...
700
SCREW GEH-WB01K0021
...
788
COVER HEATING ELEMENT GEH-WB34K10128
...
832
SCREW (BLK) GEH-WB01K0042
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072
...
2000
BADGE ASM GEH-WB02X29479
...
...
...
...
...
