GE CHS900P3M1D1 Electric Range

Model: CHS900P3M1D1

Save
 Part Not Listed?Part Not Listed?
product name

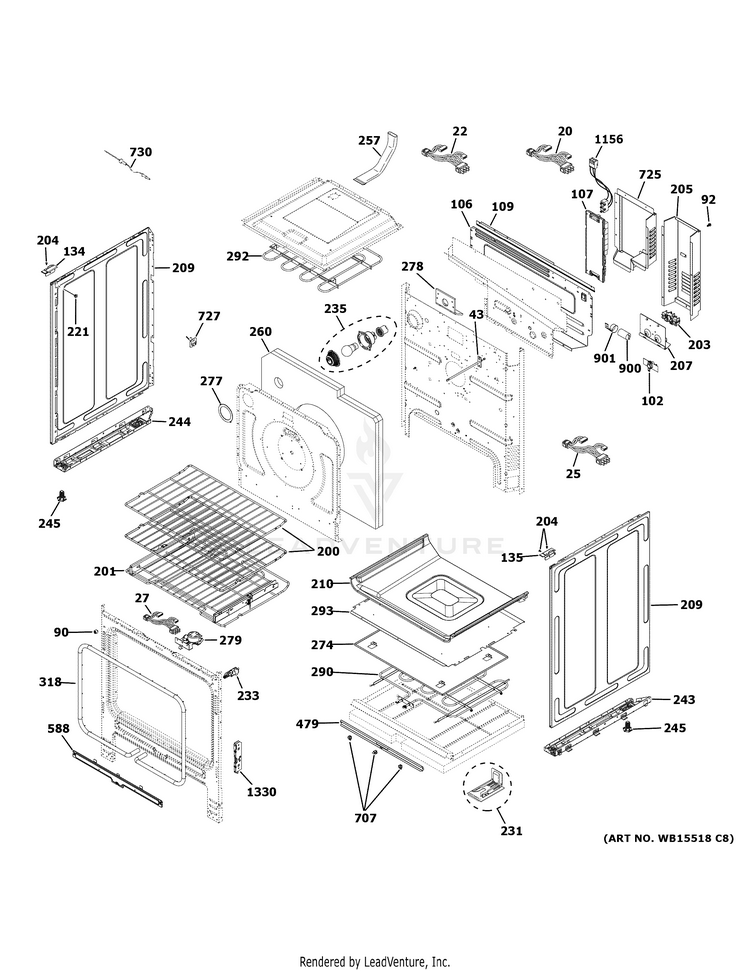

BODY PARTS

...
...
20
HARNESS MAIN GEH-WB18X31602
...
22
DC HARNESS GEH-WB18X31940
...
25
HARNESS HIDDEN BAKE GEH-WB18X31616
...
27
HARNESS LATCH GEH-WB18X31606
...
43
SENSOR ASM. GEH-WB24X5340
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
92
SCREW GROUND GEH-WB01X1261
...
102
SWITCH HIGH LIMIT GEH-WB24X29505
...
106
COVER BACK GEH-WB34X28978
...
107
MACHINE BOARD WITH FRAME GEH-WB27X32105
...
109
BACKGUARD COMPLEMENT GEH-WB34X28912
...
134
FRONT SUPPORT LH GEH-WB34X28750
...
135
FRONT SUPPORT RH GEH-WB34X28748
...
200
OVEN RACK GEH-WB48X21508
...
201
RACK OVEN SLIDE ASM GEH-WB48X20990
...
203
TERMINAL BLOCK ASM GEH-WB17T10011
...
204
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
205
COVER MOTOR GEH-WB34K10099
...
207
TERMINAL BLOCK BRACKET GEH-WB18X28834
...
209
PANEL SIDE GEH-WB56X28847
...
210
BOTTOM OVEN GEH-WB35K10209
...
221
GROMMET GEH-WB02K0008
...
231
BRACKET ASM ANTI-TIP GEH-WB02K10386
...
233
PLUNGER SWITCH GEH-WB24X27550
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
243
SUPPORT BASE RT GEH-WB63X20215
...
244
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
257
VENT GEH-WB34X28915
...
260
INSULATION OVEN BACK GEH-WB35X28786
...
274
SHIELD DRAWER TOP GEH-WB34X20748
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
278
INSULATON COVER SOCKET GEH-WB35X28791
...
279
LATCH AUTOMATIC GEH-WB10X28793
...
290
ELEMENT BAKE ASM GEH-WB44X21178
...
292
BROIL ELEMENT GEH-WB44X28248
...
293
GUARD INSULATION BOTTOM GEH-WB35X20420
...
318
GASKET OVEN GEH-WB35X29667
...
479
REFLECTOR FRONT GEH-WB34X21711
...
588
COVER FRONT FRAME GEH-WB34X21714
...
707
CLIP WIRE GEH-WB02K10267
...
725
CONTROL COVER GEH-WB34X28674
...
727
PROBE RECEPTACLE & HARNE GEH-WB34K10121
...
730
PROBE THERMISTOR GEH-WB20X5064
...
900
CAPACITOR MOTOR GEH-WB08K10009
...
901
CAPACITOR HOLDER GEH-WB02K10172
...
1156
HARNESS JUMPER GEH-WB18X29669
...
1330
RECEIVER HINGE GEH-WB10X28563

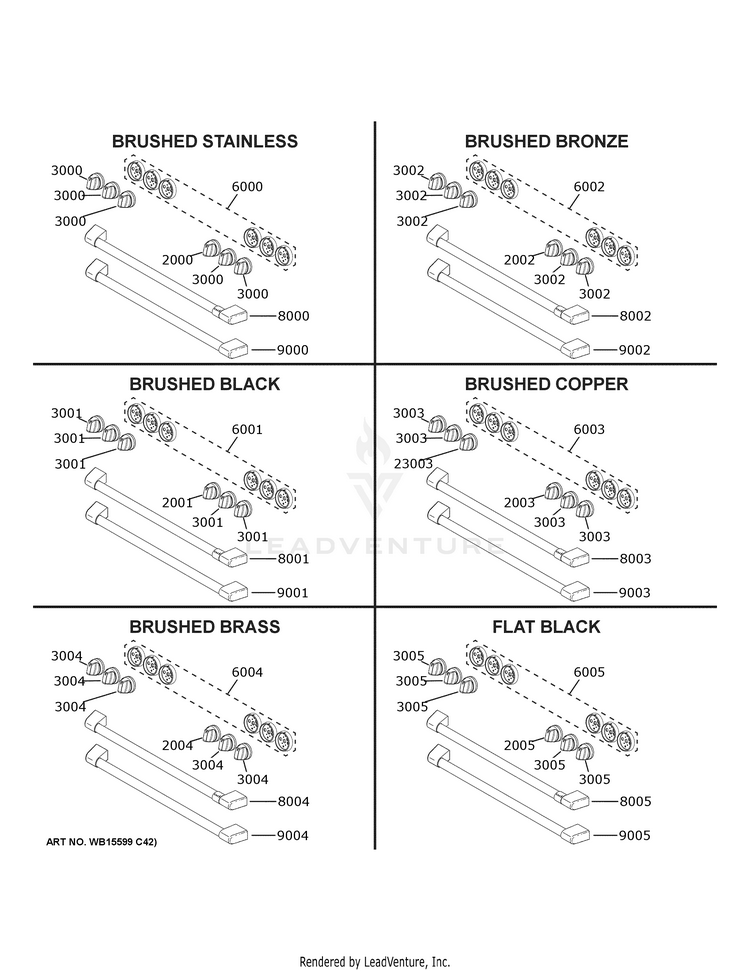

CAFE CUSTOMIZATION

...
...
2000
BRUSHED STAINLESS STEEL WARMING ZONE KN GEH-WB03X31669
...
2001
BRUSHED BLACK WARMING ZONE KNOB GEH-WB03X31899
...
2002
BRUSHED BRONZE WARMING ZONE KNOB GEH-WB03X31677
...
2003
BRUSHED COPPER WARMING ZONE KNOB GEH-WB03X31900
...
2004
BRUSHED BRASS KNOB ASM GEH-WB03X46086
...
2005
FLAT BLACK WARMING ZONE KNOB GEH-WB03X45971
...
3000
BRUSHED STAINLESS PRECISION COOKING KNOB GEH-WB03X31671
...
3001
BRUSHED BLACK PRECISION COOKING KNOB GEH-WB03X31905
...
3002
BRUSHED BRONZE PRECISION COOKING KNOB GEH-WB03X31664
...
3003
BRUSHED COPPER PRECISION COOKING KNOB GEH-WB03X31901
...
3004
BRUSHED BRASS KNOB ASM GEH-WB03X46087
...
3005
FLAT BLACK PRECISION COOKING KNOB GEH-WB03X45970
...
6000
BRUSHED STAINLESS LIGHT BEZEL KNOB GEH-WB03X31674
...
6001
BRUSHED BLACK LIGHT BEZEL KNOB GEH-WB03X32181
...
6002
BRUSHED BRONZE LIGHT BEZEL KNOB GEH-WB03X31656
...
6003
BRUSHED COPPER LIGHT BEZEL KNOB GEH-WB03X32182
...
6004
BRUSHED BRASS LIGHT BEZEL ASM GEH-WB03X46012
...
6005
FLAT BLACK LIGHT BEZEL KNOB GEH-WB03X45964
...
8000
BRUSHED STAINLESS RANGE HANDLE W/ CAF B GEH-WB15X31679
...
8001
BRUSHED BLACK HANDLE W/ CAF BAND GEH-WB15X33789
...
8002
BRONZE RANGE HANDLE W/ CAF BAND GEH-WB15X33467
...
8003
BRUSHED COPPER HANDLE W/ CAF BAND GEH-WB15X33782
...
8004
BRUSHED BRASS HANDLE ASM GEH-WB03X46008
...
8005
FLAT BLACK HANDLE W/ CAF BAND GEH-WB03X45958
...
9000
BRUSHED STAINLESS RANGE HANDLE GEH-WB15X31680
...
9001
BLACK STAINLESS HANDLE GEH-WB15X33787
...
9002
BRONZE RANGE HANDLE GEH-WB15X33466
...
9003
BRUSHED COPPER HANDLE GEH-WB15X33780
...
9004
BRUSHED BRASS HANDLE ASM GEH-WB03X46006
...
9005
FLAT BLACK HANDLE GEH-WB03X45959

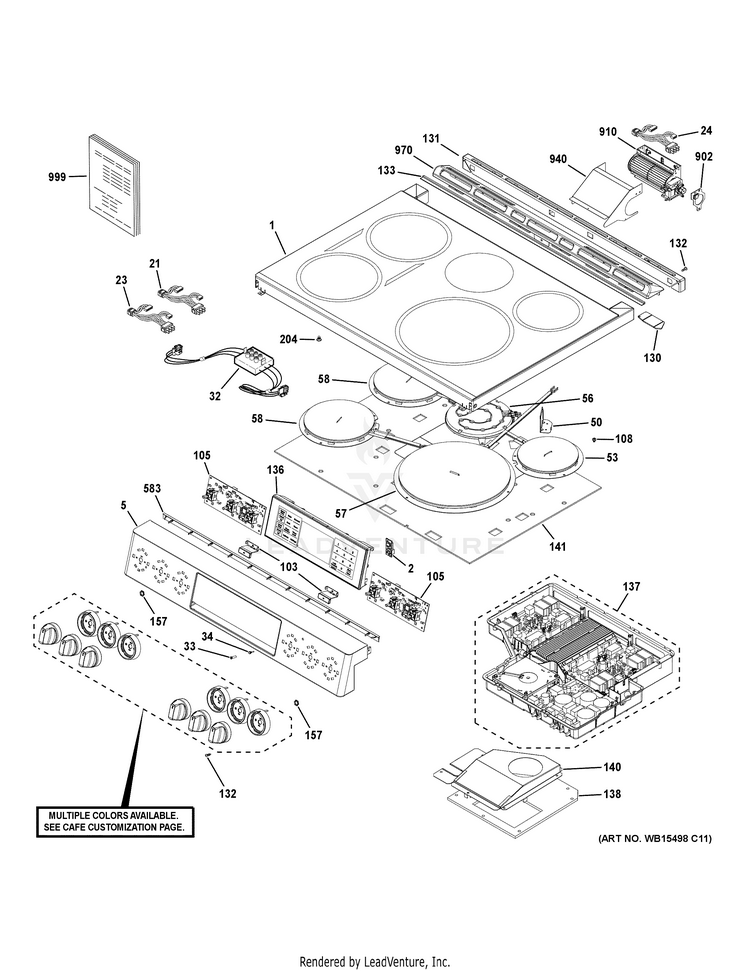

CONTROL PANEL & COOKTOP

...
...
1
RANGE TOP AND GLASS ASM GEH-WB34X31939
...
2
BOARD WIFI CAT MODULE GEH-WB27X29798
...
5
DARK SLATE MANIFOLD PANEL GEH-WB36X31633
...
21
HARNESS WZ GEH-WB18X31615
...
23
HARNESS SUPPLIER GEH-WB18X31612
...
24
HARNESS BLOWER GEH-WB18X31604
...
32
HARNESS INDUCTION GEH-WB18X31605
...
33
HOT SURFACE INDICATOR GEH-WB02X28779
...
34
INDICATOR SLEEVE GEH-WB25X28917
...
50
INDUCTION DIVIDER GEH-WB34X28918
...
53
ELEMENT INDUCTION 1800W GEH-WB30X28698
...
56
ELEMENT WARMER LOW PRF GEH-WB30X10035
...
57
ELEMENT INDUCTION 3700W GEH-WB30X28699
...
58
ELEMENT INDUCTION 2500W GEH-WB30X21490
...
103
BRACKET GEH-WB34X28908
...
105
LED / ENCODER BOARD KIT GEH-WB27X32505
...
108
SCREW GEH-WB01K0035
...
130
SPILL GASKET GEH-WB35X41087
...
131
TRIM KIT GEH-WB07X28825
...
132
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
133
REAR GASKET GEH-WB35X41086
...
136
GLASS & TOUCH BOARD ASM GEH-WB56X32507
...
137
INDUCTION CONTROL & GASKET GEH-WB27X30357
...
138
INDUCTION DUCT GASKET GEH-WB34X28919
...
140
DUCT INDUCTION GEH-WB34X28911
...
141
INSULATION MODULE GEH-WB35X28784
...
157
NUT GEH-WB02X28860
...
204
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
583
FRONT GASKET ASM GEH-WB35X28743
...
902
BOARD SENSOR GEH-WB27X28659
...
910
BLOWER TANGENTIAL GEH-WB26X29060
...
940
FAN SUPPORT GEH-WB34X28735
...
970
VENT TRIM GEH-WB07X31938
...
999
PM INSTALL INSTRUCTIONS GEH-31-11058
...
999
PM QUICK GUIDE GEH-49-88079
...
999
PM MANUAL MINI AND WD ASM GEH-31-2000123
...
999
PM WI FI INSTRUCTIONS GEH-31-11013

CONVECTION FAN

...
...
206
SCREW GEH-WB01K10091
...
720
FAN COVER GEH-WB34X28703
...
721
BLADE FAN GEH-WB2X8351
...
722
FAN INSULATOR GEH-WB35X20989
...
723
FAN INSULATION GEH-WB35K10013
...
724
FAN SUPPORT GEH-WB02K10170
...
726
MOTOR PSC CONV GEH-WB26X25118
...
728
HEAT ELEMENT CONVECTION GEH-WB44X29061
...
729
NUT GEH-WB02T10017
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345

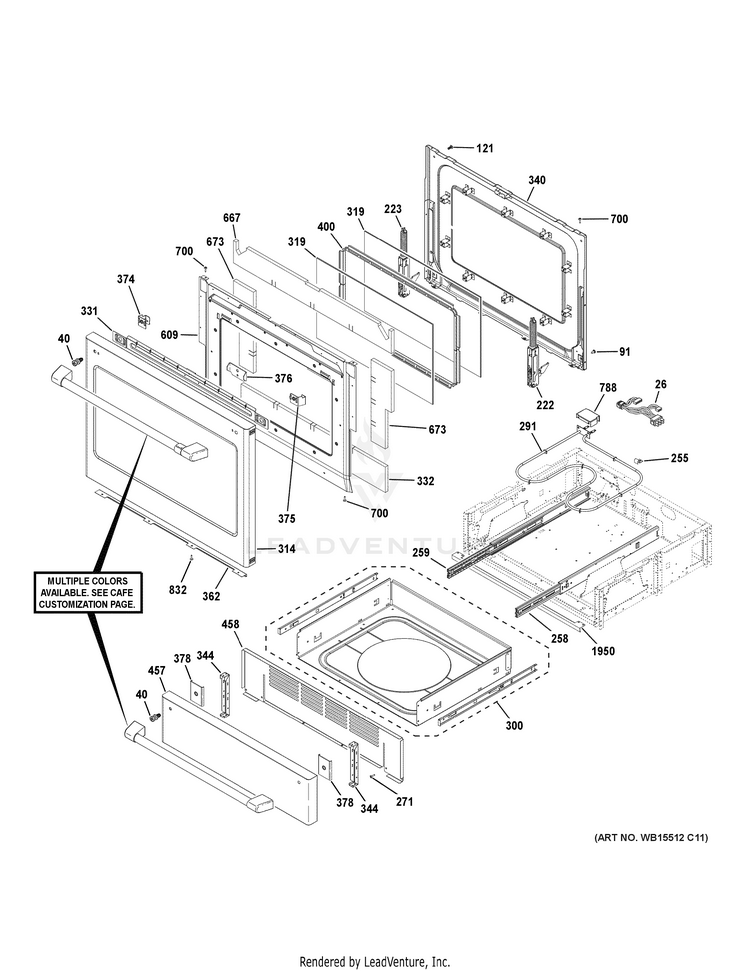

DOOR & DRAWER PARTS

...
...
26
HARNESS WARMING DRAWER GEH-WB18X31613
...
40
FASTENER DOOR HANDLE GEH-WR01X11007
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
121
SCREW 12-14, 5/8S GEH-WB01K0078
...
222
DOOR HINGE GEH-WB10X30271
...
223
DOOR HINGE GEH-WB10X26769
...
255
CLAMP-HEAT ELEMENT GEH-WB02K10023
...
258
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
271
SCREW M4X8 GEH-WB01X1189
...
291
HEATING ELEMENT GEH-WB44K10011
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
314
DARK SLATE GLASS & PANEL DOOR GEH-WB56X31641
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
331
PANEL VENT BACKER GEH-WB34X31702
...
332
INSULATION GEH-WB35K10221
...
340
LINER DOOR WELD ASSEMBLY GEH-WB56X24760
...
344
BRACKET DRAWER GEH-WB02X24742
...
362
BARRIER DOOR GEH-WB07X28885
...
374
FASTENER BRACKET GEH-WB34X31703
...
375
FASTENER BRACKET GEH-WB34X31701
...
376
BRACKET BACKER GEH-WB34X31739
...
378
ANCHOR NUT GEH-WB01X31748
...
400
FRAME WINDOW ASSY GEH-WB34X28742
...
457
DARK SLATE PANEL DRAWER GEH-WB56X31637
...
458
LINER DRAWER GEH-WB56X29436
...
609
DOOR GUARD GEH-WB34X24749
...
667
INSULATION DOOR GEH-WB35X20077
...
673
INSULATION GEH-WB35K10222
...
700
SCREW GEH-WB01K0021
...
788
COVER HEATING ELEMENT GEH-WB34K10128
...
832
SCREW (BLK) GEH-WB01K0042
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072

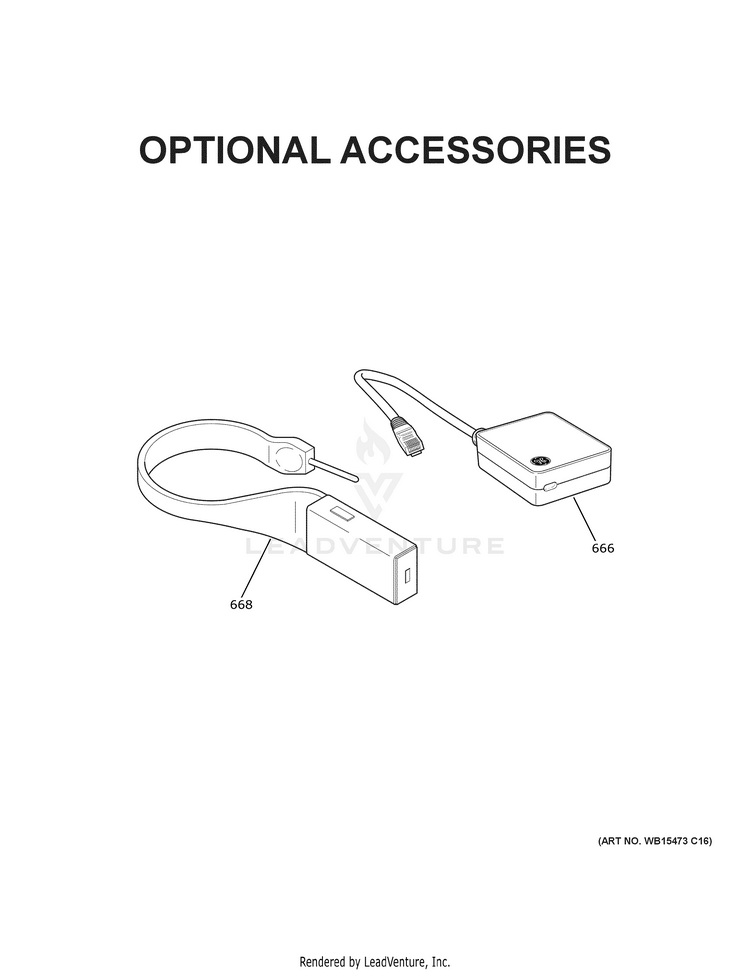

OPTIONAL ACCESSORIES

...
...
666
CONNECT PLUS WIFI AND BLUETOOTH MODULE GEH-WB27X32001
...
668
PRECISION COOKING PROBE GEH-JXSOUSV1
...
...
...
...
...
