GE CHP95362M3SS Electric Range

Model: CHP95362M3SS

Save
 Part Not Listed?Part Not Listed?
product name

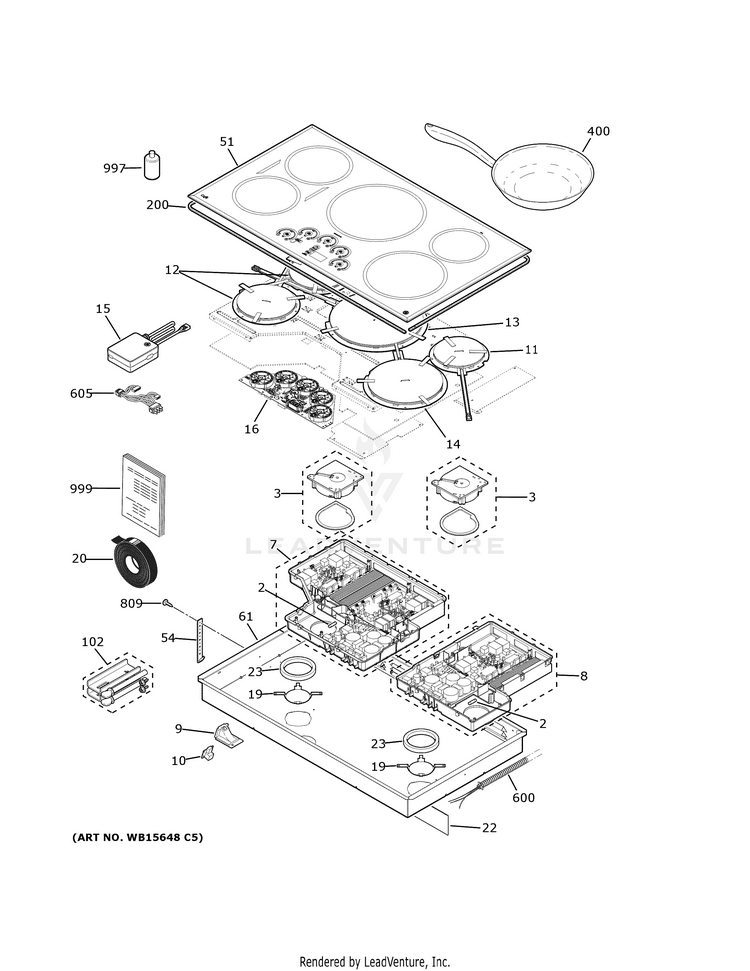

CONTROL PANEL & COOKTOP

...
...
2
FUSE 250V, 20A FB GEH-WB27X27316
...
3
BLOWER & GASKET ASM GEH-WB26X24235
...
7
INDUCTION CONTROL ASM KIT GEH-WB27X33085
...
8
INDUCTION CONTROL ASM KIT GEH-WB27X33086
...
9
HOUSING RJ45 GEH-WB02X24122
...
10
BOARD RJ45 CONNECTOR GEH-WB27X24119
...
11
ELEMENT INDUCTION 1800W GEH-WB30X24233
...
12
ELEMENT INDUCTION 2500W GEH-WB30X21490
...
13
ELEMENT INDUCTION 3700W GEH-WB30X24600
...
14
ELEMENT INDUCTION 3200W GEH-WB30X24239
...
15
CONNECT PLUS WIFI AND BLUETOOTH MODULE GEH-WB27X32001
...
16
DISPLAY BOARD ASM GEH-WB27X31999
...
19
FAN ENCLOSURE GEH-WB02X24262
...
20
TAPE FOAM GEH-WB02X26088
...
22
BAFFLE GEH-WB02X26802
...
23
GASKET BOTTOM GEH-WB35X24260
...
51
36" MAINTOP GLASS AND FRAME ASM GEH-WB62X32002
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BURNER BOTTOM BOX GEH-WB63X29540
...
102
INSTALLATION KIT GEH-WB01X24570
...
200
INSULATION TAPE FOAM GEH-WB35X24125
...
200
TAPE GEH-WB02X21898
...
400
11" PRECISION COOKING PAN GEH-WB32X32079
...
600
CONDUIT WIRE ASM GEH-WB18X32986
...
605
HARNESS WIRE MAIN GEH-WB18X24501
...
605
HARNESS WIRE GND ASM GEH-WB18X24228
...
809
SCREW GEH-WB01X1137
...
997
GLASS CLEANER GEH-WB64X0093
...
999
PM MANUAL MINI & WD ASM GEH-31-17143
...
999
PM GUIDE MINI GEH-49-80834
...
999
INSTRUCTION INSTALL GEH-31-10710

OPTIONAL ACCESSORIES

...
...
100
GRIDDLE GEH-WB31X24640
...
6001
PROBE BLE TEMPERATURE GEH-WB20X28966
...
...
...
...
...
