GE CGB550P3M1D1 Gas Range Or Dual Fuel

Model: CGB550P3M1D1

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

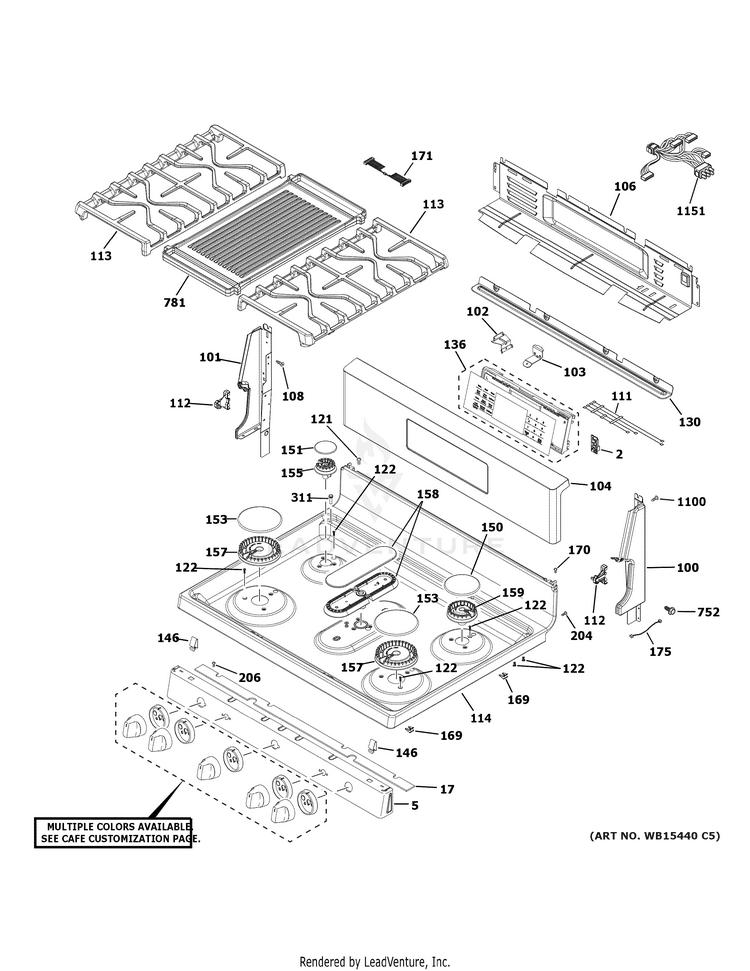

CONTROL PANEL & COOKTOP

...
...
2
BOARD WIFI CAT MODULE GEH-WB27X29798
...
5
DARK SLATE MANIFOLD PANEL GEH-WB36X31631
...
17
EYEBROW INSULATION GEH-WB35X31951
...
100
END SUPPORT DD RH GEH-WB07X29143
...
101
END SUPPORT DD LH GEH-WB07X29144
...
102
BRACKET CONTROL GEH-WB34X31738
...
103
BRACKET CONTROL GEH-WB34X31731
...
104
DARK SLATE BACKGUARD GEH-WB36X31706
...
106
BLACK COVER BACK UPPER GEH-WB34X31704
...
108
SCREW (CR) GEH-WB01X5364
...
111
ELECTRODES & HARNESS H.V GEH-WB18X26980
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE ASM GEH-WB31X28755
...
114
RANGETOP & BRKT ASM GEH-WB62X24887
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01X24735
...
130
DARK DORIAN GRAY BACKGUARD EYEBROW GEH-WB34X31700
...
136
GLASS & TOUCH BOARD ASM GEH-WB56X31944
...
146
CLIP RANGETOP GEH-WB02X26569
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
157
BURNER, XL V2 GEH-WB16X24722
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER, MEDIUM V2 GEH-WB16X24724
...
169
CLIP, IGNITER V2 GEH-WB02X24976
...
170
SCREW GEH-WB01X5754
...
171
HARNESS INTERFACE GEH-WB18X31608
...
175
HARNESS GROUND GEH-WB18X24748
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
311
BUMPER GEH-WB02X24790
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
781
REVERSIBLE GRIDDLE GEH-WB31X24998
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
1151
HARNESS MAIN GEH-WB18X31610
...
...
...
...
...
