GE CGB550P3M1D1 Gas Range Or Dual Fuel

Model: CGB550P3M1D1

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

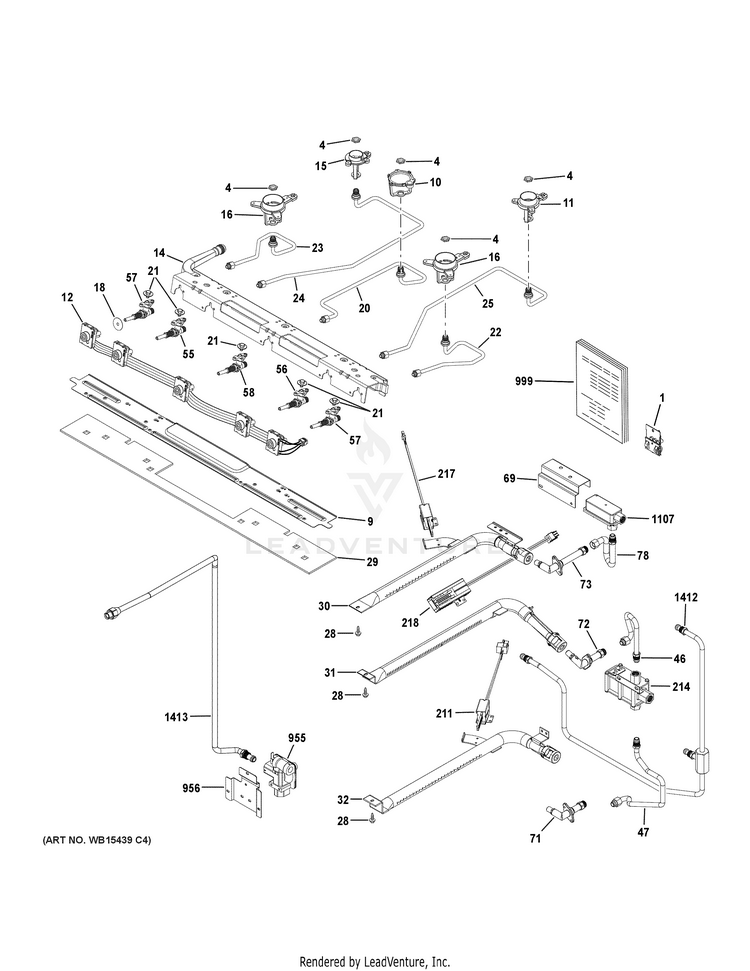

GAS & BURNER PARTS

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-11153
...
1
PM INSTALL INSTRUCTIONS GEH-31-17301
...
1
PM QUICK GUIDE GEH-49-85254
...
1
PM MANUAL MINI AND WD ASM GEH-31-2000101
...
4
ECONOMIC NUT GEH-WB01K10037
...
9
MANIFOLD SUPPORT GEH-WB02K10272
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
HARNESS SWITCH GEH-WB18X31618
...
14
MANIFOLD PIPE GEH-WB28X31695
...
15
INJET, SMALL V2 GEH-WB02X24728
...
16
INJET, XL V2 GEH-WB02X24725
...
18
SEAL VALVE GEH-WB35X21708
...
20
ORIFICE HOLDER CENTRAL GEH-WB28X24762
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
22
ORIFICE HOLDER GEH-WB28X25593
...
23
ORIFICE HOLDER RF GEH-WB28X24761
...
24
ORIFICE HOLDER RR GEH-WB28X24763
...
25
REAR ORIFICE HOLDER GEH-WB28X31697
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
INSULATION BURNER BOX GEH-WB35X24985
...
30
BURNER BAKE GEH-WB16X28249
...
31
BURNER BROIL GEH-WB16X28251
...
32
BURNER BAKE GEH-WB16X28670
...
46
TUBE VALVE SAFETY GEH-WB28X28164
...
47
TUBE LOWER BAKE SUPPLY GEH-WB28X28152
...
55
VALVE BURNER 270 GEH-WB21X25979
...
56
VALVE BURNER 270 GEH-WB21X20470
...
57
VALVE BURNER 270 GEH-WB21X20612
...
58
VALVE BURNER 270 GEH-WB21X20471
...
69
SUPPORT VALVE SINGLE GEH-WB02K10325
...
71
ELBOW 90 ASM GEH-WB28X20451
...
72
ELBOW 90 ASM GEH-WB28X28696
...
73
ELBOW 90 ASM GEH-WB28X28695
...
78
TUBE UPPER BAKE SUPPLY GEH-WB28X28163
...
211
IGNITER GLOWBAR GEH-WB28X28781
...
214
SAFETY VALVE DUAL GEH-WB21X28835
...
217
IGNITER GLOWBAR GEH-WB13X25633
...
218
IGNITER GLOWBAR GEH-WB28X28780
...
955
PRESSURE REGULATOR GEH-WB19K10077
...
956
SUPPORT REGULATOR GEH-WB02X21705
...
999
KIT HIGH ALTITUDE ASM GEH-WB49X25442
...
999
KIT HIGH ALTITUDE ASM GEH-WB49X25441
...
999
KIT LP CONVERSION ASM GEH-WB28X32191
...
1107
SAFETY VALVE SINGLE GEH-WB21X28836
...
1412
TUBE OVEN SUPPLY GEH-WB28X28159
...
1413
TUBE BURNER BOX SUPPLY GEH-WB28X31693
...
...
...
...
...
