GE CGB500P3M1D1 Gas Range Or Dual Fuel

Model: CGB500P3M1D1

Save
 Part Not Listed?Part Not Listed?
product name

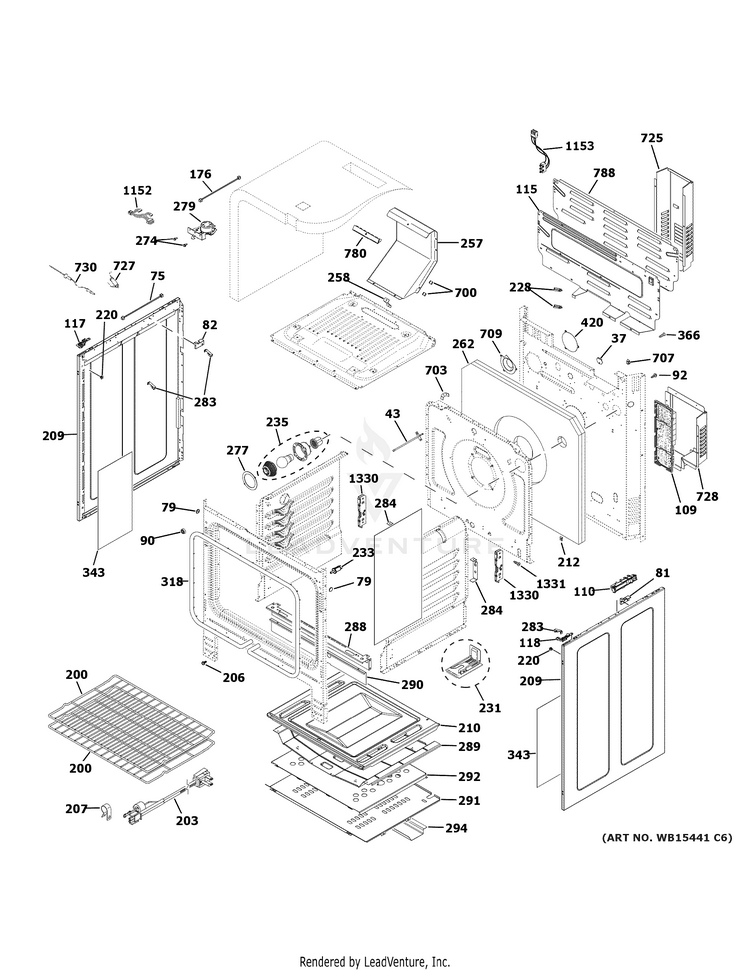

BODY PARTS

...
...
37
COVER IGNITOR GEH-WB34X24753
...
43
SENSOR ASM GEH-WB24X25557
...
75
HARNESS GROUND GEH-WB18X25597
...
79
SPACER SIDE GEH-WB02X20849
...
81
HOLDER RANGETOP GEH-WB02X24941
...
82
HOLDER RANGETOP GEH-WB02X24942
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
92
SCREW GROUND GEH-WB01X1261
...
109
MACHINE BOARD WITH FRAME GEH-WB27X32185
...
110
IGNITION MODULE GEH-WB13X24741
...
115
COVER BACK GEH-WB34X28955
...
117
BRACKET MANIFOLD SIDE GEH-WB02X24939
...
118
BRACKET MANIFOLD SIDE GEH-WB02X24940
...
176
HARNESS GROUND GEH-WB18X27594
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18X28855
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
209
PANEL SIDE GEH-WB56X29670
...
210
BOTTOM OVEN ASM GEH-WB63X21580
...
212
SPEEDNUT GEH-WB01K0002
...
220
GROMMET GEH-WB02K0008
...
228
CLIP WIRE GEH-WB02X7066
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH GEH-WB24X27550
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
257
VENT ASSEMBLY GEH-WB34X20294
...
258
BRACE VENT GEH-WB34X20456
...
262
INSULATION OVEN BACK GEH-WB35X28786
...
274
SCREW LATCH GEH-WB01K0044
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
279
LATCH AUTOMATIC GEH-WB10X24780
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
288
BRACE BOTTOM GEH-WB63K0015
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
290
SHIELD RADIATION GEH-WB34K0012
...
291
GUARD BOTTOM GEH-WB63K0016
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
294
COVER TERMINAL GEH-WB63K10040
...
318
GASKET OVEN ASM GEH-WB32X29539
...
343
PANEL SIDE FOIL GEH-WB35X26892
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
420
COVER BACK GEH-WB34K0016
...
700
CLIP INSULATION GEH-WB02K10380
...
703
BRACKET OVEN CORNER GEH-WB02K0041
...
707
CLIP WIRE GEH-WB02K10267
...
709
COVER LAMP GEH-WB08K10018
...
725
COVER MOTOR GEH-WB34K10097
...
727
PROBE RECEPTACLE & HARNE GEH-WB34K10121
...
728
CONTROL COVER GEH-WB34X28674
...
730
CONVECTION ELEMENT GEH-WB44X10051
...
730
PROBE THERMISTOR GEH-WB20X5064
...
780
DIFFUSER VENT GEH-WB38K10022
...
788
COVER BACK GEH-WB34X21575
...
1152
HARNESS LATCH GEH-WB18X31614
...
1153
DC HARNESS GEH-WB18X28690
...
1330
RECEIVER HINGE GEH-WB10X28563
...
1331
SCREW GEH-WB01K0021

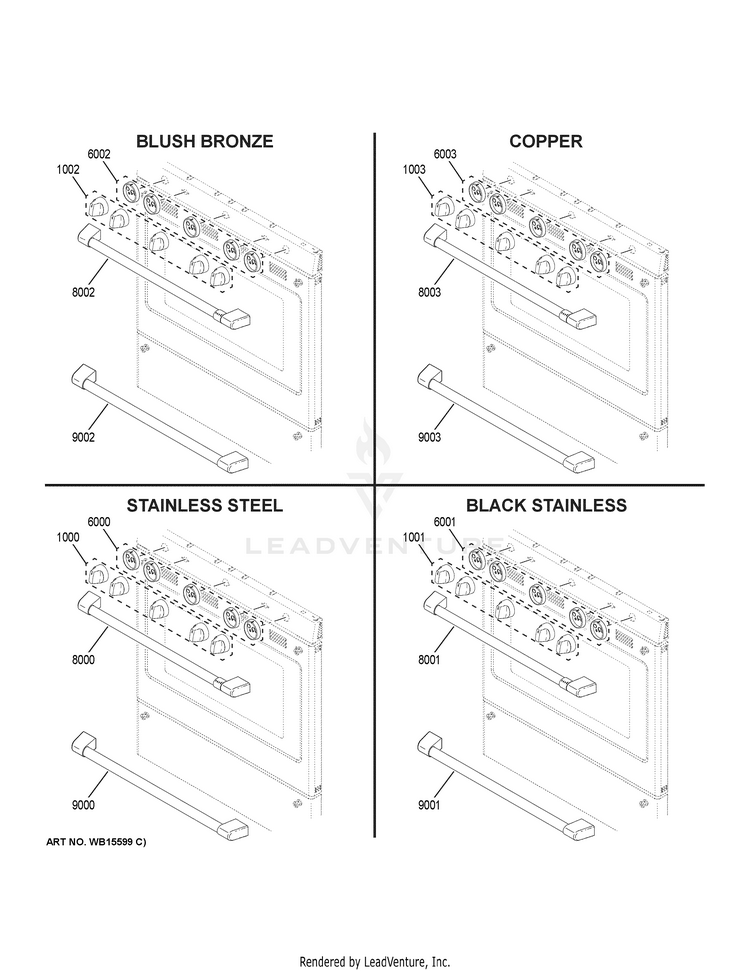

CAFE CUSTOMIZATION

...
...
1000
BRUSHED STAINLESS CONTROL KNOB GEH-WB03X31668
...
1001
BRUSHED BLACK CONTROL KNOB GEH-WB03X31908
...
1002
BRUSHED BRONZE CONTROL KNOB GEH-WB03X31749
...
1003
BRUSHED COPPER CONTROL KNOB GEH-WB03X31903
...
6000
BRUSHED STAINLESS KNOB BEZEL GEH-WB03X31657
...
6001
BRUSHED BLACK KNOB BEZEL GEH-WB03X31955
...
6002
BRUSHED BRONZE KNOB BEZEL GEH-WB03X31675
...
6003
BRUSHED COPPER BEZEL KNOB GEH-WB03X31956
...
8000
BRUSHED STAINLESS RANGE HANDLE W/ CAF B GEH-WB15X31679
...
8001
BRUSHED BLACK RANGE HANDLE W/ CAF BAND GEH-WB15X31895
...
8002
BRUSHED BRONZE RANGE HANDLE W/ CAF BAND GEH-WB15X31681
...
8003
BRUSHED COPPER RANGE HANDLE W/ CAF BAND GEH-WB15X31909
...
9000
BRUSHED STAINLESS RANGE HANDLE GEH-WB15X31680
...
9001
BRUSHED BLACK RANGE HANDLE GEH-WB15X31897
...
9002
BRUSHED BRONZE RANGE HANDLE GEH-WB15X31682
...
9003
BRUSHED COPPER RANGE HANDLE GEH-WB15X31912

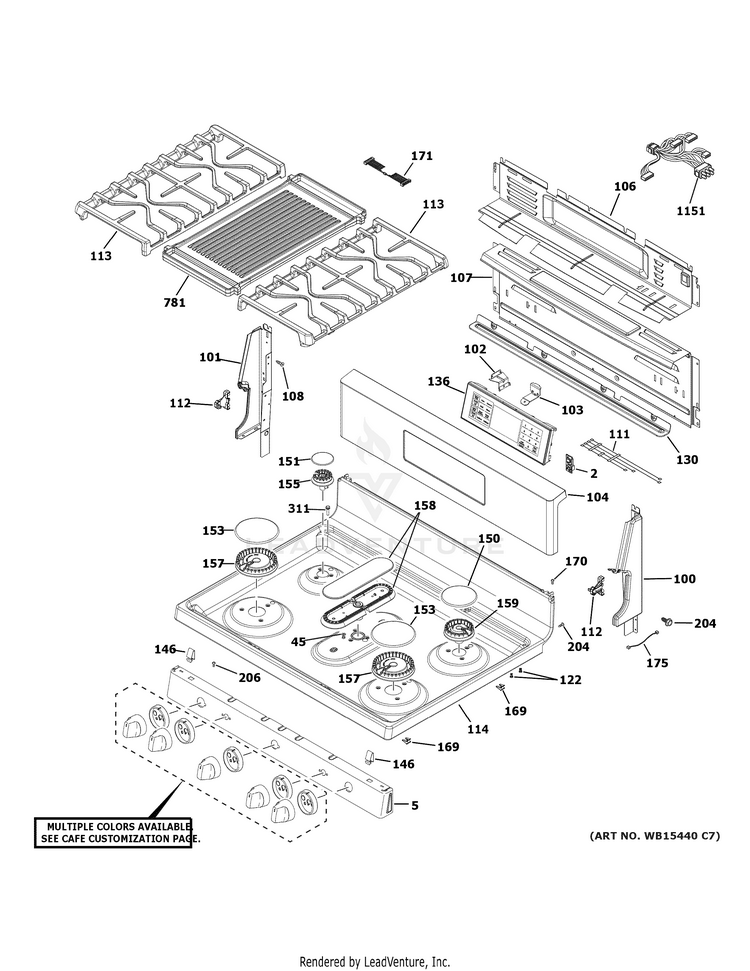

CONTROL PANEL & COOKTOP

...
...
2
BOARD WIFI CAT MODULE GEH-WB27X29798
...
5
DARK SLATE MANIFOLD PANEL GEH-WB36X31631
...
45
FLAT WASHER-M4 GEH-WB01X1378
...
100
END SUPPORT DD RH GEH-WB07X29143
...
101
END SUPPORT DD LH GEH-WB07X29144
...
102
BRACKET CONTROL GEH-WB34X31738
...
103
BRACKET CONTROL GEH-WB34X31731
...
104
DARK SLATE BACKGUARD GEH-WB36X31706
...
106
BLACK COVER BACK UPPER GEH-WB34X31704
...
107
COVER BACK LOWER GEH-WB34X24746
...
108
SCREW (CR) GEH-WB01X5364
...
111
ELECTRODES & HARNESS H.V GEH-WB18X26980
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE ASM GEH-WB31X28755
...
114
RANGETOP & BRKT ASM GEH-WB62X24887
...
122
CKT SCREW GEH-WB01X24735
...
130
DARK DORIAN GRAY BACKGUARD EYEBROW GEH-WB34X31700
...
136
GLASS & TOUCH BOARD ASM GEH-WB27X31750
...
146
CLIP RANGETOP GEH-WB02X26569
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
157
BURNER, XL V2 GEH-WB16X24722
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER, MEDIUM V2 GEH-WB16X24724
...
169
CLIP, IGNITER V2 GEH-WB02X24976
...
170
SCREW GEH-WB01X5754
...
171
HARNESS INTERFACE GEH-WB18X31608
...
175
HARNESS GROUND GEH-WB18X24748
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
311
BUMPER GEH-WB02X24790
...
781
REVERSIBLE GRIDDLE GEH-WB31X24998
...
1151
HARNESS MAIN GEH-WB18X31620

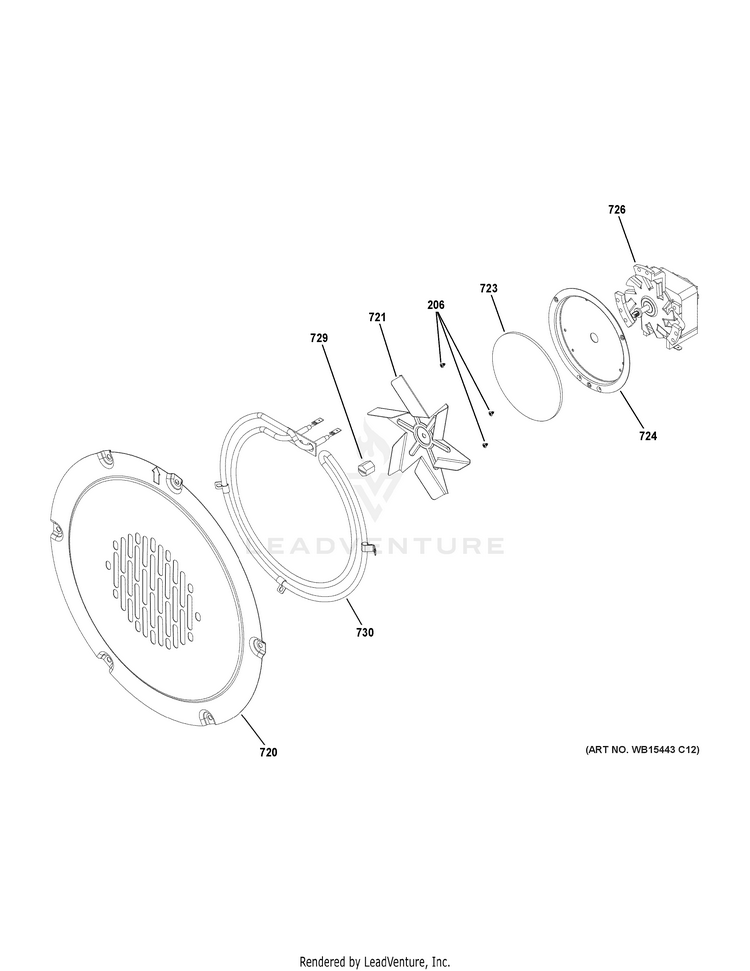

CONVECTION FAN

...
...
206
SCREW GEH-WB01K10091
...
720
FAN COVER GEH-WB34X28703
...
721
FAN BLADE GEH-WB02X8351
...
723
FAN INSULATOR GEH-WB35K10038
...
724
FAN SUPPORT GEH-WB02K10034
...
726
FAN MOTOR CONVECT GEH-WB26X28953
...
729
NUT GEH-WB02T10017
...
730
PROBE THERMISTOR GEH-WB20X5064
...
730
CONVECTION ELEMENT GEH-WB44X10051

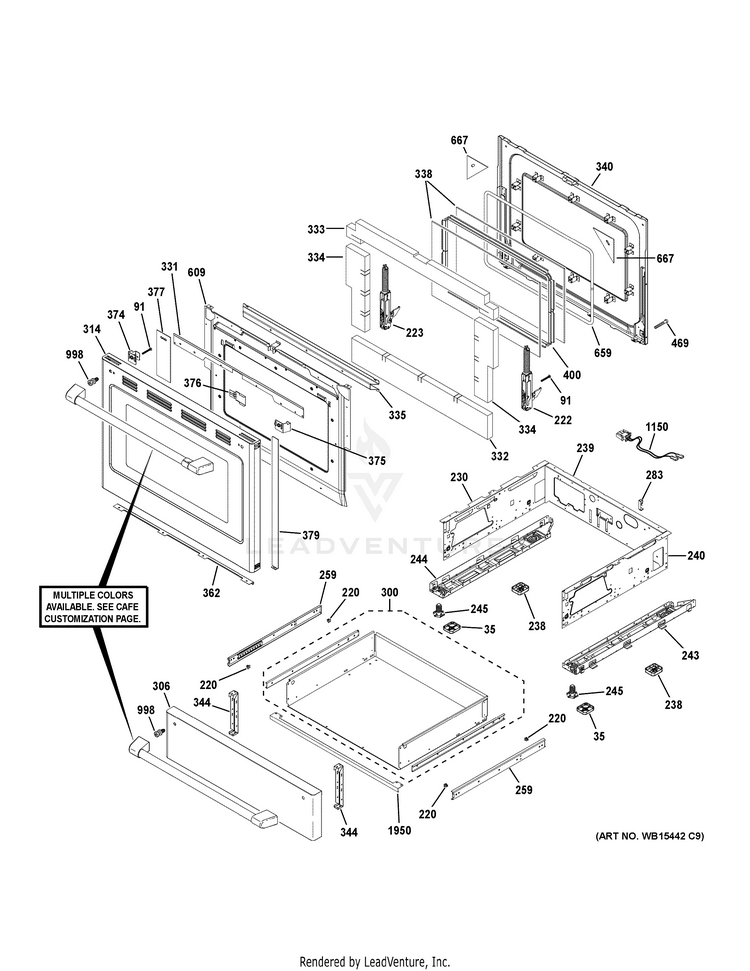

DOOR & DRAWER PARTS

...
...
35
SPACER BASE FRONT GEH-WB16X20448
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
220
GROMMET GEH-WB02K0008
...
222
DOOR HINGE RT GEH-WB10X24777
...
223
DOOR HINGE LT GEH-WB10X26464
...
230
PANEL SIDE BROIL RT GEH-WB63K0002
...
238
SPACER BASE REAR GEH-WB16X20449
...
239
PANEL REAR BROIL GEH-WB63K10203
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
243
SUPPORT BASE RT GEH-WB63X20215
...
244
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
259
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
283
CLIP CABLE GEH-WB02K0031
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
306
DARK SLATE PANEL DRAWER GEH-WB56X31637
...
314
DARK SLATE GLASS & PANEL DOOR GEH-WB56X31649
...
331
INNER DOOR DEFLECTOR GEH-WB34X24756
...
332
INSULATION DOOR GEH-WB35X21566
...
333
INSULATION DOOR GEH-WB35X33270
...
334
INSULATION DOOR GEH-WB35X21567
...
335
DOOR STIFFENER GEH-WB34X21570
...
338
CRYSTAL WINDOW GEH-WB57K10174
...
340
LINER DOOR WELD ASSEMBLY GEH-WB56X24760
...
344
BRACKET DRAWER GEH-WB02X24742
...
362
BARRIER DOOR GEH-WB07X28885
...
374
FASTENER BRACKET GEH-WB34X31703
...
375
FASTENER BRACKET GEH-WB34X31701
...
376
KNOB BLOCKER GEH-WB02X31945
...
377
INSULATION BRACKET GEH-WB34X31737
...
379
HEAT SINK DOOR GEH-WB34X31753
...
400
FRAME WINDOW ASSY GEH-WB34X28742
...
469
SCREW 12-14, 5/8S GEH-WB01K0078
...
609
DOOR GUARD GEH-WB34X24749
...
659
CORD FIBER GLASS GEH-WB35X21685
...
667
INSULATION DOOR GEH-WB35X21691
...
998
FASTENER DOOR HANDLE GEH-WR01X11007
...
1150
HARNESS DRAWER GEH-WB18X28724
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072

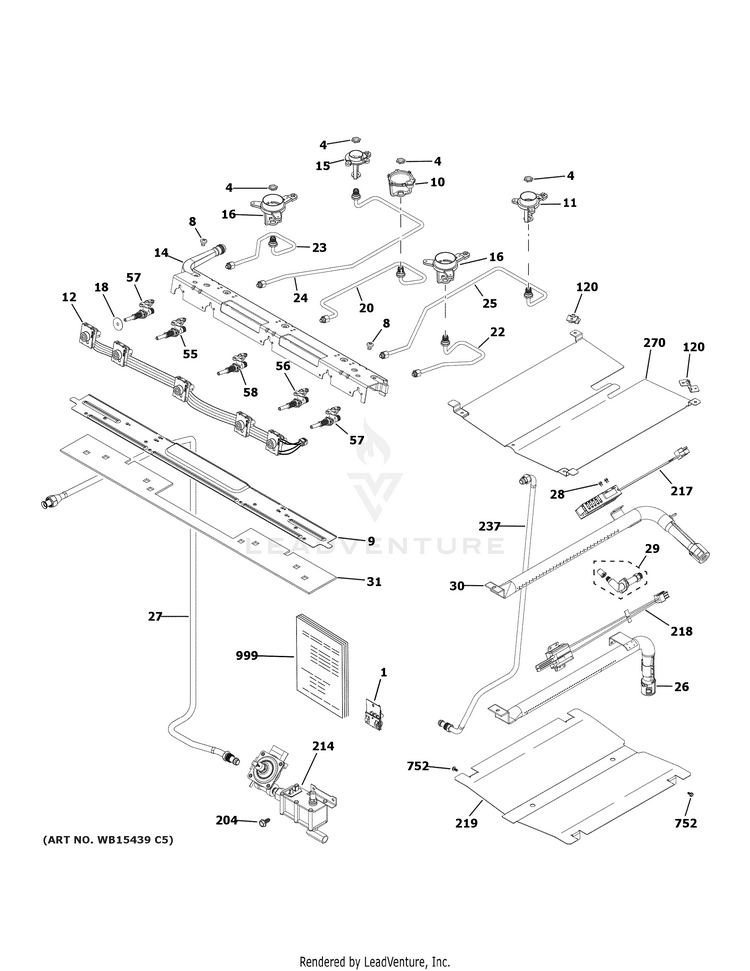

GAS & BURNER PARTS

...
...
1
KIT LP CONVERSION ASM GEH-WB28X32184
...
1
KIT HIGH ALTITUDE ASM GEH-WB49X25442
...
1
KIT HIGH ALTITUDE ASM GEH-WB49X25441
...
4
ECONOMIC NUT GEH-WB01K10037
...
8
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
9
MANIFOLD SUPPORT GEH-WB02K10272
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
HARNESS SWITCH GEH-WB18X31618
...
14
MANIFOLD PIPE GEH-WB28X31695
...
15
INJET, SMALL V2 GEH-WB02X24728
...
16
INJET, XL V2 GEH-WB02X24725
...
18
SEAL VALVE GEH-WB35X21708
...
20
ORIFICE HOLDER CENTRAL GEH-WB28X24762
...
22
ORIFICE HOLDER GEH-WB28X25593
...
23
ORIFICE HOLDER RF GEH-WB28X24761
...
24
ORIFICE HOLDER RR GEH-WB28X24763
...
25
REAR ORIFICE HOLDER GEH-WB28X31697
...
26
BURNER BAKE GEH-WB16X28250
...
27
TUBE MANIFOLD SUPPLY GEH-WB28X24772
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW 90 ASM GEH-WB28X28697
...
30
BURNER BROIL GEH-WB16X28251
...
31
INSULATION BURNER BOX GEH-WB35X24985
...
55
VALVE BURNER 270 GEH-WB21X25979
...
56
VALVE BURNER 270 GEH-WB21X20470
...
57
VALVE BURNER 270 GEH-WB21X20612
...
58
VALVE BURNER 270 GEH-WB21X20471
...
120
SUPPORT COOK TOP REAR GEH-WB02X20735
...
204
SCREW (BLK) GEH-WB01K0042
...
214
VALVE CONTROL ASM NOR. D GEH-WB21X28820
...
217
IGNITER GLOWBAR GEH-WB13X24755
...
218
IGNITER GLOWBAR GEH-WB13X25500
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE BURNER SUPPLY GEH-WB28X24773
...
270
DEFLECTOR GEH-WB34X28689
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
999
PM QUICK GUIDE GEH-49-85254
...
999
PM INSTALL INSTRUCTIONS GEH-31-11152
...
999
PM INSTALL INSTRUCTIONS GEH-31-11083
...
999
PM MANUAL MINI & WD ASM GEH-31-17300
...
...
...
...
...
