GE CEP70303M1S2 Electric Range

Model: CEP70303M1S2

Save
 Part Not Listed?Part Not Listed?
product name

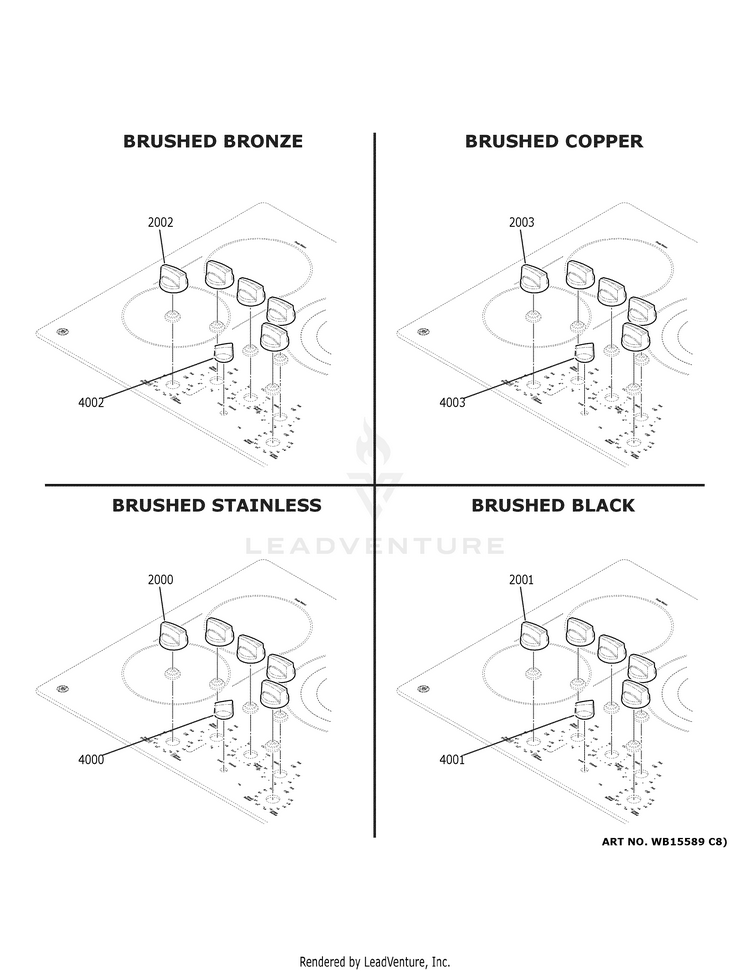

CAFE CUSTOMIZATION

...
...
2000
KNOB ASM, SS GEH-WB03X24158
...
2001
BLACK STAINLESS RANGE CONTROL KNOB GEH-WB03X31410
...
2002
BLUSH BRONZE RANGE CONTROL KNOB GEH-WB03X31408
...
2003
COPPER RANGE CONTROL KNOB GEH-WB03X31409
...
4000
KNOB SELECTOR GEH-WB03X24157
...
4001
BLACK STAINLESS RANGE LOCK OUT KNOB GEH-WB03X31413
...
4002
BLUSH BRONZE RANGE LOCK OUT KNOB GEH-WB03X31411
...
4003
COPPER RANGE LOCK OUT KNOB GEH-WB03X31412

CONTROL PANEL & COOKTOP

...
...
19
SWITCH INFINITE CONTROL GEH-WB24X24136
...
20
SWITCH INFINITE CONTROL GEH-WB24X24137
...
21
SWITCH INFINITE CONTROL GEH-WB24X24138
...
22
SWITCH INFINITE CONTROL GEH-WB24X24155
...
23
LOCKOUT SWITCH GEH-WB24X24145
...
26
CLEAR SEAL INF CONT GEH-WB02X26801
...
27
INFINITE CONTROL SEAL GEH-WB02X9504
...
32
LED BOARDS AND HOUSING ASM WHITE LED GEH-WB27X42686
...
33
INDICATOR LIGHT GEH-WB25T10012
...
34
BUZZER GEH-WB18X24105
...
35
LOCKOUT INDICATOR LIGHT GEH-WB25X24131
...
44
BURNER BOX GROMMET GEH-WB02T10092
...
51
MAINTOP GLASS AND FRAME ASM GEH-WB62X31414
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
55
BRACKET INF SWITCH GEH-WB02X24133
...
56
ELEMENT RADIANT 6 IN GEH-WB30T10129
...
57
ELEMENT HALIANT GEH-WB30X24161
...
58
ELEMENT HALIANT (DUAL) GEH-WB30X24134
...
59
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
60
SPRING RADIANT ELEMENT GEH-WB09X40389
...
61
BOTTOM BURN BOX GEH-WB63X24120
...
63
BRACKET RADIANT ELEMENT GEH-WB02X24195
...
82
BOARD SURGE BACKLIGHT GEH-WB27X24029
...
100
GRIDDLE GEH-WB31X24640
...
101
INSULATION GEH-WB35X24123
...
102
INSTALLATION KIT GEH-WB01X24570
...
200
TAPE FOAM GEH-WB02X26088
...
254
HARNESS WIRE RELAY GEH-WB18X32561
...
595
CONDUIT CLAMP GEH-WB02K5126
...
600
CONDUIT WIRE ASM GEH-WB18X32530
...
605
HARNESS WIRE POWER GEH-WB18X32551
...
605
HARNESS WIRE MAIN RT GEH-WB18X32538
...
605
HARNESS WIRE GRIDDLE GEH-WB18X32533
...
605
LEAD WIRE 18 GA R GEH-WB18X32565
...
605
HARNESS WIRE INF LED GEH-WB18X32546
...
691
SCR 6-20 B HXW 1/4 S GEH-WZ04X0217
...
699
SCR 8-18X GEH-WB01X24096
...
737
SCR 8-32 B FLP 3/4 GEH-WB01X24132
...
801
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
802
SCREW GEH-WB01K5119
...
809
SCREW GEH-WB01X1137
...
813
SCR 8-18 GEH-WB01X24092
...
938
CLIP GEH-WB01K5209
...
962
PCB STANDOFF GEH-WB02T10477
...
997
GLASS CLEANER GEH-WB64X0093
...
999
PM QUICK OWNERS MANUAL GEH-49-2000986
...
999
PM OWNERS MANUAL GEH-49-2000979
...
999
PM INSERT INSTRUCTIONS GEH-49-2000988
...
999
PM INSTALL INSTRUCTIONS GEH-31-11072
...
...
...
...
...
