GE C2Y486SDL1SS Gas Range Or Dual Fuel

Model: C2Y486SDL1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

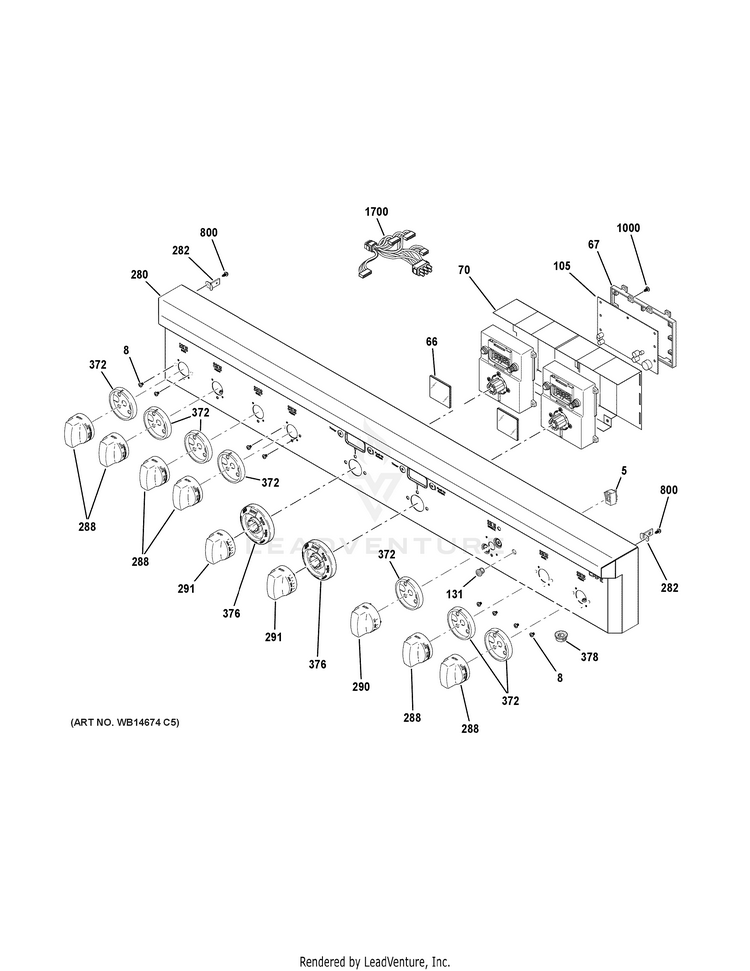

CONTROL PANEL

...
...
5
LAMP PILOT GEH-WB25K10007
...
8
SCREW 8-32 GEH-WB01K10002
...
66
GLASS DISPLAY GEH-WB57K10134
...
67
BRACKET CONTROL GEH-WB02K10213
...
70
ENCODER ASM GEH-WB24K10048
...
105
CONTROL DISPLAY MODULE GEH-WB27K10457
...
131
LENS GEH-WB02X30231
...
280
CONTROL PANEL & RAIL ASM GEH-WB36X30226
...
282
BRACKET CONTROL PANEL GEH-WB02K10211
...
288
KNOB ASM GEH-WB03X30219
...
290
KNOB ASM GRIDDLE GEH-WB03X30217
...
291
KNOB ASM GEH-WB03X30218
...
372
BEZEL KNOB GEH-WB03X30031
...
376
BEZEL OVEN ASM GEH-WB03X30229
...
378
BUSHING BEZEL GEH-WB02K10217
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
1000
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
1700
HARNESS SERIAL DUAL GEH-WB24K10064
...
...
...
...
...
