GE C2Y366P4M1W2 Gas Range Or Dual Fuel

Model: C2Y366P4M1W2

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

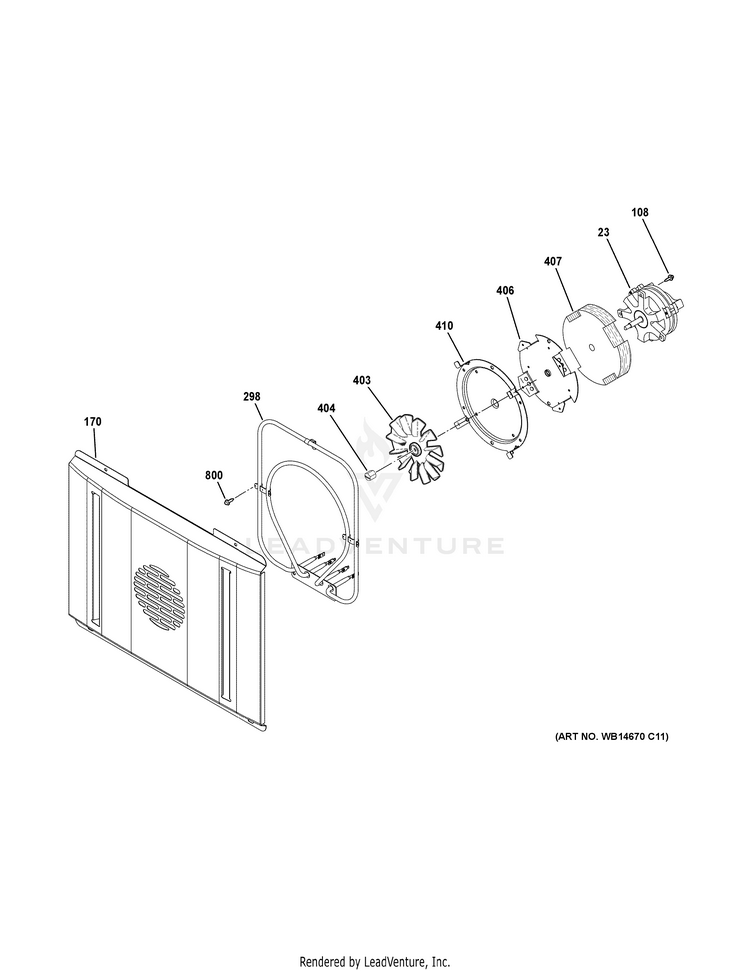

CONVECTION FAN

...
...
23
MOTOR PSC CONV GEH-WB26T10037
...
108
SCR 8-18 AB X 5/16S GEH-WB01X26995
...
170
COVER FAN 27" GEH-WB02K10199
...
298
ELEMENT CONVECT GEH-WB44T10058
...
403
HUB BLADE ASM GEH-WB02T10289
...
404
NUT GEH-WB02T10017
...
406
BRACKET CONVX MTR MTG GEH-WB02T10293
...
407
INSULATION GEH-WB35K10128
...
410
PLATE CONVECTION GEH-WB02T10310
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
...
...
...
...
