GE C2S995SEL1SS Gas Range Or Dual Fuel

Model: C2S995SEL1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

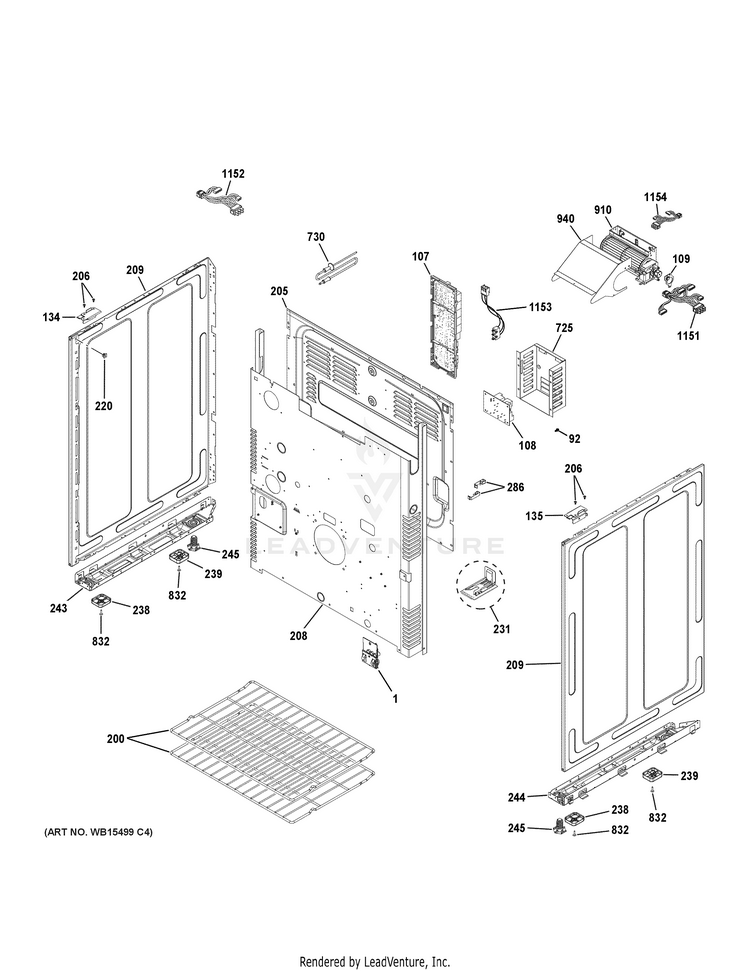

BODY PARTS

...
...
1
KIT LP CONVERSION ASM GEH-WB28X28137
...
1
KIT LP HIGH ALTITUDE ASM GEH-WB28X29255
...
1
KIT NG HIGH ALTITUDE ASM GEH-WB28X29254
...
92
SCREW GROUND GEH-WB01X1261
...
107
MACHINE BOARD WITH FRAME (SERVICE) GEH-WB27X29494
...
108
BOARD DAUGHTER RELAY GEH-WB27X28658
...
109
BOARD SENSOR GEH-WB27X28659
...
134
FRONT SUPPORT LH GEH-WB34X28749
...
135
FRONT SUPPORT RH GEH-WB34X28747
...
200
OVEN RACK GEH-WB48X21508
...
205
COVER BACK GEH-WB34X28992
...
206
SCREW GEH-WB01K10091
...
208
RANGE BACK GEH-WB63X28988
...
209
PANEL SIDE GEH-WB56X28847
...
220
GROMMET GEH-WB02K0008
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
238
SPACER BASE FRONT GEH-WB16X20448
...
239
SPACER BASE REAR GEH-WB16X20449
...
243
SUPPORT BASE LT GEH-WB63X25480
...
244
SUPPORT BASE RT GEH-WB63X25481
...
245
LEG LEVELER GEH-WB02K10182
...
286
CLIP CABLE GEH-WB02K0031
...
725
COVER MOTOR GEH-WB34X25587
...
730
PROBE GEH-WB20X5050
...
832
SCREW GEH-WB01K0021
...
910
BLOWER TANGENTIAL GEH-WB26X29060
...
940
FAN SUPPORT GEH-WB34X28735
...
1151
HARNESS MAIN GEH-WB18X28901
...
1152
HARNESS LATCH GEH-WB18X28894
...
1153
DC HARNESS GEH-WB18X28694
...
1154
HARNESS BLOWER GEH-WB18X28887
...
...
...
...
...
