GE C2S995SEL1SS Gas Range Or Dual Fuel

Model: C2S995SEL1SS

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

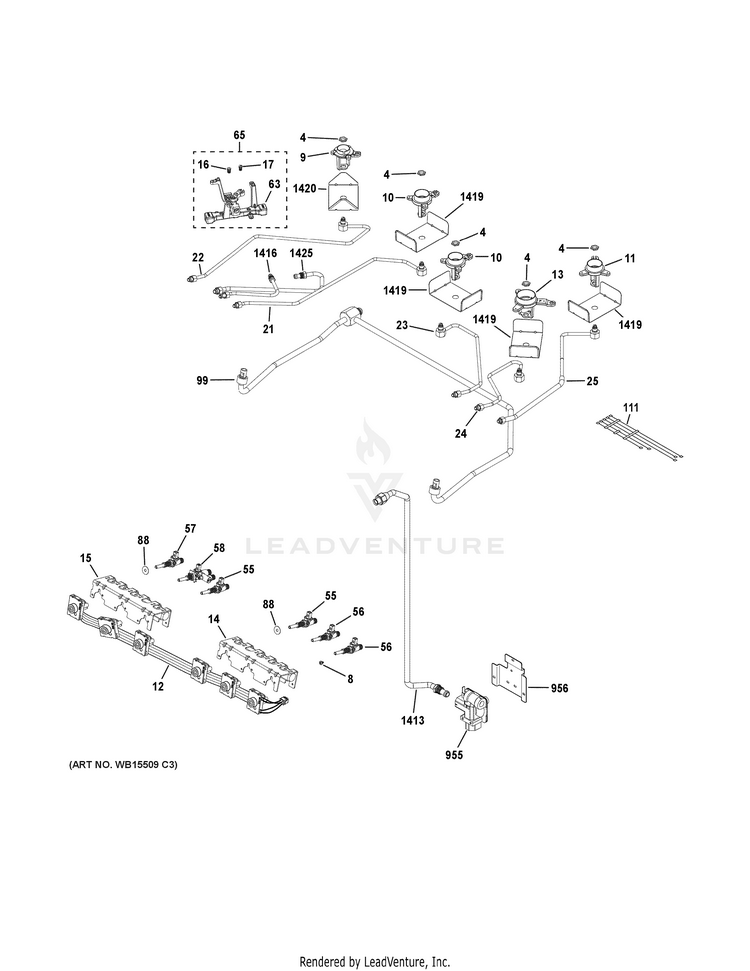

GAS & BURNER PARTS

...
...
4
ECONOMIC NUT GEH-WB01K10037
...
8
SCREW 8-32 GEH-WB01K10002
...
9
INJET, SMALL V2 GEH-WB02X24728
...
10
INJET, MEDIUM V2 GEH-WB02X24727
...
11
INJET, LARGE V2 GEH-WB02X24726
...
12
HARNESS SWITCHES GEH-WB18X28761
...
13
INJET, XL V2 GEH-WB02X24725
...
14
MANIFOLD PIPE ASM GEH-WB28X28202
...
15
MANIFOLD PIPE ASM GEH-WB28X28203
...
16
ORIFICE SPUD NG GEH-WB28X28843
...
17
ORIFICE SPUD GEH-WB28X29600
...
21
CR ORIFICE HOLDER GEH-WB16X28685
...
22
LR ORIFICE HOLDER GEH-WB28X28141
...
23
CF ORIFICE HOLDER GEH-WB13X28673
...
24
RF ORIFICE HOLDER GEH-WB28X28846
...
25
RR ORIFICE HOLDER GEH-WB28X28148
...
55
VALVE BURNER 270 GEH-WB21X20470
...
56
VALVE BURNER 270 GEH-WB21X20612
...
57
VALVE BURNER 270 GEH-WB21X25979
...
58
VALVE BURNER 3R 310 GEH-WB21X28821
...
63
INJET MRHOB GEH-WB16X28863
...
65
INJECT BURNER MRHOB ASM GEH-WB16X28867
...
88
COVER VALVE GEH-WB02X28680
...
99
TUBE MANIFOLD SUPPLY GEH-WB28X28157
...
111
ELECTRODES & HARNESS H. V. GEH-WB18X28727
...
955
PRESSURE REGULATOR GEH-WB19K10018
...
956
SUPPORT REGULATOR GEH-WB02X21705
...
1413
TUBE BURNER BOX SUPPLY GEH-WB28X28150
...
1416
TUBE SIMMER DUAL VALVE GEH-WB28X28161
...
1419
AIR DEVIATOR GEH-WB02X28653
...
1420
AIR DEVIATOR GEH-WB02X28652
...
1425
TUBE MAIN DUAL VALVE GEH-WB28X28155
...
...
...
...
...
