C4571A Eureka Commercial Vacuum

Model: C4571A

Save
 Part Not Listed?Part Not Listed?
product name

Eureka C4571A

...
...
xx
Owner's Guide 73578
...
1
Hose Assembly - Cartoned EES-60920-2
...
2
Adapter - Hose EES-28375-119N
...
3
Steel Telescopic Wand Set EES-72953
...
4
Filteraire Style "AA" REP-58236C
...
5
Coupling - Hose EES-37057B-3
...
6
Tool - Crevice EES-27237-3
...
7
Upholstery Nozzle Assembl EES-38284-3
...
8

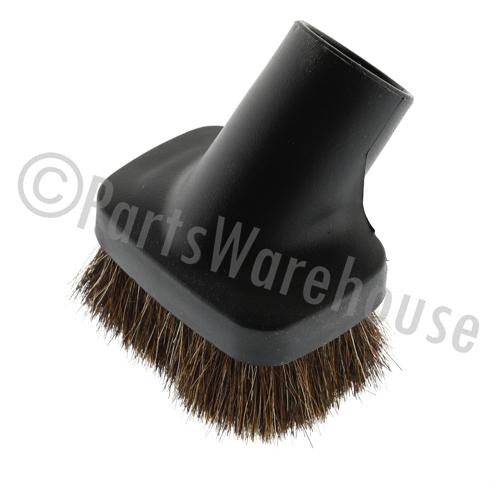

Dusting Brush - Packaged EES-60290-1
...
9
Strap - Hose EES-39231-2
...
10
Pkg - Hardware EES-70124
...
11
Pkg - Hardware 70124A

Eureka C4571A

...
...
xx
Wheel Cover - Right EES-60000
...
1
Grip Right Hand EES-15597-355N
...
2
Housing - Switch (Rh) EES-02349A-355N
...
3
Switch - Rocker EES-28073A
...
4
Handle EES-15580
...
5
Screw Package 53238-39
...
6
Shield - Wiring EES-59741-316N
...
7
Housing - Front Handle EES-15533-119N
...
8
Supply Cord & Terminal Assy EES-38680-19
...
9
Wire Splice 5 EES-60192-1
...
10
Upper Cord Assembly EES-28011-2
...
11
Grip - Left Handle EES-15596-288N
...
14
Handle Cover EES-15581-119N
...
16
Rear Housing Handle 4570 EES-15534A-119N
...
17
Screw Package EES-53197-1
...
18
Housing - Switch (L.H.) 39512-288N
...
19
Cord Retainer/SC4570AT EES-28316-355N
...
20
Spring - Packaged EES-60945
...
21
Washer - Packaged EES-60946
...
22
Screw Package EES-53238-18
...
23
Handle Assembly 15605A-5

Eureka C4571A

...
...
1
Quarter Turn Fastener - P EES-60940
...
2
Hood Assembly - Packaged 60249-6
...
3
1/4 Turn Retainer EES-60941
...
4
Base Gasket/4170 EES-58506-3
...
5
Operator - Height Adjustment EES-27462E-288N
...
6
Axle - Rear EES-38590A
...
7
Quarter Turn Receptacle EES-60939
...
8
Base Assembly (60938-1) 60938-7
...
9
Belt Cap & Gasket EES-54376-2
...
10
Gasket - Felt EES-57569
...
11
Furniture Guard EES-15591A-288N
...
12
Disturbulator Assembly EES-60909-4
...
13
Screw Package EES-53197-1
...
14
Cuff - Hose EES-27468D-119N
...
15
Release - Handle EES-27467A-288N
...
16
Compression Spring - Pack EES-60133
...
17
Screw Package EES-53197-1
...
18
Clamp EES-38420-2
...
19
Hose - Compression (Purch) EES-38479-2
...
20
Adapter - Base EES-28243A-316N
...
21
Package - Retaining Ring EES-54432-2
...
22
Wheel/Bushing Package EES-61875-1
...
23
Bushing - Axle EES-72113-1
...
24
Spring Package EES-54943
...
25
Carriage - Wheel EES-14993C-119N
...
26
Wheel Axle EES-71551-1
...
27
Wheel - Front EES-39173A-119N
...
28
Belt Pkg Assembly - Style U Ext EES-61120A

Eureka C4571A

...
...
xx
= Part is correct, but not shown on schematic. FNLA
...
1
Gasket - Bag Cover 58505SV
...
2
Spring - Latch EES-39268
...
3
Latch - Bag Cover EES-28256-288N
...
4
Bag Cover Assembly - Pkgd EES-60937-6
...
5
Gasket EES-38613
...
7
Motor Cover Assembly - Pk EES-60942-1
...
8
Lens - Motor Cover EES-15407-313N
...
9
Screw Package EES-60068-2
...
10
Lamp - Headlight EES-48815
...
11
Headlamp Socket & Terminal 38611-3
...
12
Tube (Victory) EES-59362B
...
13
Adapter - Tube EES-59361A
...
14
Gasket - Motor Exhaust EES-59137
...
15
Hepa Motor EES-60943-4
...
16
Grommet - Motor 70840
...
17
Tie - Cable (Purchased) EES-46713-5
...
18
Thermostat Assembly EES-39252-3
...
19
Bushing/Tool Caddy EES-70133-119N
...
20
Screw Package EES-53197-1
...
21
Tool Caddy EES-15443B-119N
...
22
Retainer - Flange EES-28290-333N
...
23
Rear Housing - Packaged EES-60944-2
...
24
Hepa Filter Package REP-60285F
...
25
Wire Splice 5 EES-60192-1
...
26
Push Nuts EES-60613
...
27
Filter Package REP-61940B
...
28
Grille - Air Duct EES-28425
...
29
Gasket-Air Duck EES-59297SV
...
30
Air Duct/ Victory Series EES-15408B-119N
...
31
Gasket EES-27171A
...
32
Flange - Motor Intake EES-39023
...
...
...
...
...
