product name

Electrolux EP9110A Commercial Upright

Model: EP9110A

Save
 Part Not Listed?Part Not Listed?
product name

Electrolux EP9110A

...
...
xx
Gasket - Brushroll Motor EES-79380
...
01
Hood Assembly - Package TAC-63862-4
...
02
Guard, Carrier & Graphics-P EES-63863-4
...
03
Adapter - Base EES-77134A-119N
...
04
Gasket - Adapter EES-77130
...
05
Hose Cooling EES-77822
...
06
Base Assembly EES-63857
...
07
Brushroll - Cartoned EES-63858-1
...
7a
Locknuts-Package 10 49175 EES-53158
...
7b
End Cap EES-76995
...
7c
Washer - Felt EES-77124
...
7d
Disturbulator Bearingg/Package 6 EES-53114
...
7e
Pulley EES-76993
...
7f
Brushroll - Cartoned EES-76991
...
7g
Bristle Strip - Package EES-63859-1
...
7h
Retainer - Bearing EES-76996
...
7i
Tol Rings-Package10 EES-53115
...
08
Soleplate, Felt & Gasket Assembly EES-77143
...
09
Screw Package EES-54669-6
...
10
Gasket-Soleplate EES-78580
...
11
Gasket-Soleplate Rear EES-78907
...
12
Screw Package EES-53238-27
...
13
Felt-Soleplate EES-77129
...
14
Spring Package-10 EES-54943
...
15
Front Axle EES-77411
...
16
Front Wheel EES-77117-355N
...
17
Wheel - Carriage EES-77116-355N
...
18
Knob - Height Adjustment EES-77114-380N
...
19
Screw Package Ew312-10t8 EES-53238-11
...
20
Clamps-Package 10 55535-2 EES-53201
...
21
Rear Wheel&Axle Assembly EES-63860
...
22
Vulcanized Paper EES-78652A
...
23
Retainer Assembly EES-78290-1
...
24
Handle Release Spring EES-77136
...
25

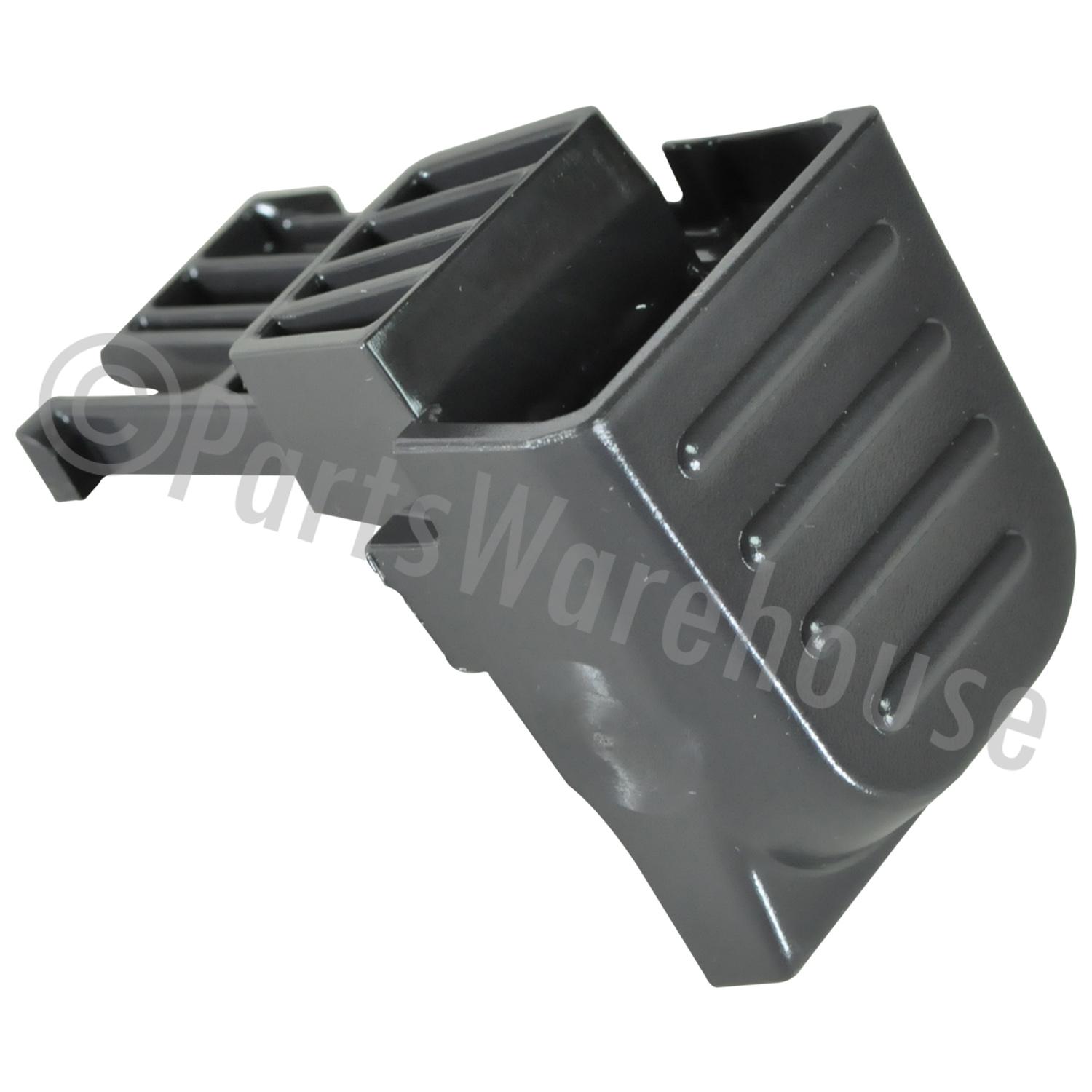

Handle Release EES-77135-380N
...
26
Motor - Clamp EES-77140
...
27
Screw Package EES-53238-27
...
28
Microswitch EES-59397-7
...
29
Belt - Poly V EES-77133
...
30
Brushroll Motor Assembly - Cartonedd EES-63861
...
31
Cover - Brushroll Motor EES-77132-119N

Electrolux EP9110A

...
...
xx
Owners Guide 80960
...
xx
Hardware Package EES-78742SV
...
01
Latch - Top Cover EES-77281A-355N
...
02
Spring - Top Cover EES-77528A
...
03
Cover - Top EES-77273-119N
...
04
Hinge Pin-Top Cover EES-77844A
...
05
Spring- Package EES-63867
...
06
Lever Bag In Place EES-77282-355N
...
07
Inlet - Bag EES-77270-355N
...
08
Gasket- Top Cover EES-77274
...
09
Inlet Cover EES-77271-355N
...
10
Screw Package EES-53238-27
...
11
Screw Package 10 55927 EES-60160
...
12
Grill - Pre-Motor Filter EES-77480-355N
...
13
Filter EES-77883
...
14
Clamp - Plate EES-77495
...
15
Gasket - Front Cover EES-77289
...
16
Cover - Front EES-77267-119N
...
17
Upper Handle Assembly EES-77294-5
...
18
Use Item 17 FNLA
...
19
Quick Cord Release EES-77292-355N
...
20
Hose & Wand Assembly EUR-63864-3
...
21
Dirt Tube EES-77275-355N
...
22
Gasket- Dirt Tube EES-78310
...
23
Valve Assembly. EUR-77125
...
24
Hose-Connector EES-70051-380N
...
25
Adapter-Lower Cord Hook EES-77284-355N
...
26
Shaft - Cord Hook EES-77529
...
27
Lower Cord Hook EES-77283-355N
...
28
Cover-Motor EES-77266-119N
...
29
Wire Splice 5 53214-2 EES-60192-1
...
30
Cable Tie EES-46713-5
...
31
Shroud - Motor EES-77285-313N
...
32
Gasket - Motor Shroud EES-77818
...
33
Grommet - Suction Motor EES-77295A
...
34
Motor Assembly EES-63865
...
35
Gasket-Motor Can EES-77288-316N
...
36
Shroud - Rotor Cover EES-77287-119N
...
37
Gasket - Cover Motor Shro EES-78129
...
38
Rear Housing Assembly EES-78261-6
...
39
Bushing- Nylon For Sc9180a EES-77141-119N
...
40
Thermostat & Terminal Assembly EES-39252-19
...
41
Paper Bag Package Seneca EES-63262A
...
42
Jumper Cord - Upper EES-77527
...
43
Jumper Wire For Motor-Sc9180a EES-77530
...
44
Cover - Hepa Shroud EES-77291-355N
...
45
Hepa Filter EES-78442A
...
46
Shroud - Hepa EES-77286-355N
...
47
Vulcanized Paper EES-78117
...
48
Switch-Rocker EES-77816-1
...
49
Handle Assembly - Package EES-15854-1
...
50
Supply Cord Assembly EES-79073
...
51
Cord - Extension EES-76224
...
52
Dusting Brush EES-77853
...
53
Wand Tip EES-77856-355N
...
...
...
...
...
