Echo WP-1000 Type 1 Water Pump

Model: WP-1000 Type 1

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

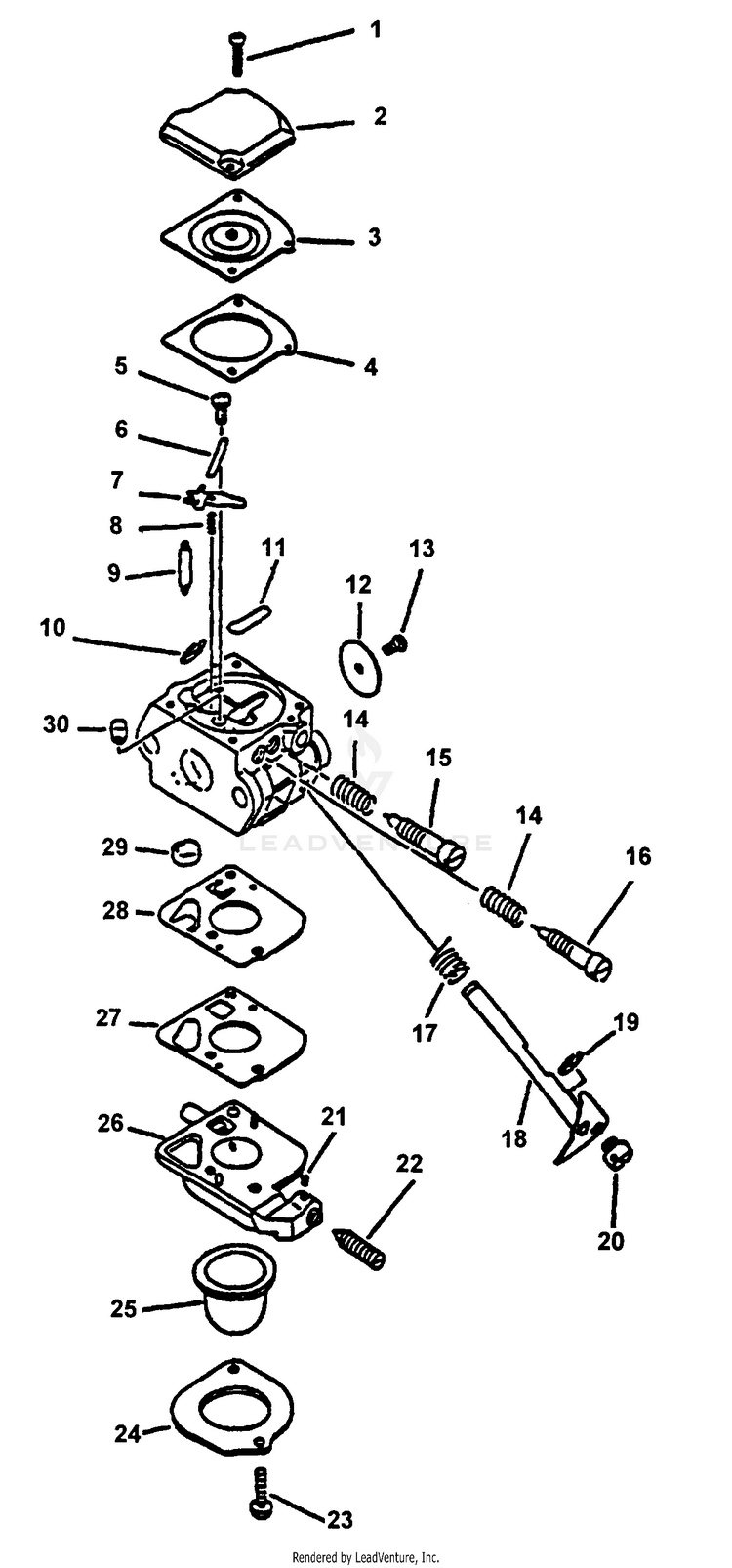

Carburetor -- C1U-K28

...
...
xx
CARBURETOR - C1U-K28 Includes ITEMS 1-30 ECH-12520012621
...
1
SCREW ECH-12534413931
...
2
COVER, METERING DIAPHRAGM ECH-12534252130
...
3
DIAPHRAGM, METERING Also Included In REBUILD KIT P/N 12530012620 & GASKET/DIAPHRAGM KIT P/N 12530342030 ECH---
...
4
GASKET, DIAPHRAGM Also Included In REBUILD KIT P/N 12530012620 & GASKET/DIAPHRAGM KIT P/N 12530342030 ECH---
...
5
SCREW ECH-12533942030
...
6
PIN, METERING LEVER Also Included In REBUILD KIT P/N 12530012620 ECH---
...
7
LEVER, METERING Also Included In REBUILD KIT P/N 12530012620 ECH---
...
------------------
LEVER, INLET CONTROL Also Included In REBUILD KIT P/N 12530012620 ECH---
...
9
VALVE, INLET NEEDLE Also Included In REBUILD KIT P/N 12530012620 ECH---
...
10
E-RING ECH-12532715130
...
11
PLUG, WELCH Also Included In REBUILD KIT P/N 12530012620 ECH---
...
12
VALVE, THROTTLE ECH-12531612620
...
13
SCREW 3x4.5 ECH-12531451230
...
14
SPRING, COIL ECH-125319-42030
...
15
NEEDLE, IDLE ECH-125318-42030
...
16
NEEDLE, HIGH SPEED ECH-12532007260
...
17
SPRING, THROTTLE RETURN ECH-12531342030
...
18
SHAFT, THROTTLE ECH-12531711820
...
19
CLIP ECH-125327-13930
...
20
SWIVEL ECH-12537242030
...
21
PIECE, FRICTION ECH-12537813930
...
22
SCREW, IDLE ADJUST ECH-12533413930
...
23
SCREW ECH-12531011610
...
24
RETAINER ECH-12536311610
...
25
BULB, PURGE ECH-P005003120
...
26
BODY ASSY, PURGE ECH-12532411610
...
27
GASKET, PUMP Also Included In REBUILD KIT P/N 12530012620 & GASKET/DIAPHRAGM KIT P/N 12530342030 ECH---
...
28
DIAPHRAGM, PUMP Also Included In REBUILD KIT P/N 12530012620 & GASKET/DIAPHRAGM KIT P/N 12530342030 ECH---
...
29
STRAINER Also Included In REBUILD KIT P/N 12530012620 ECH---
...
30
NOZZLE, CHECK VALVE ECH-12537642030
...
xx
REBUILD KIT ECH-12530012620
...
xx
GASKET / DIAPHRAGM KIT ECH-12530342030
...
...
...
...
...
