Echo WP-1000 Type 1 Water Pump

Model: WP-1000 Type 1

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

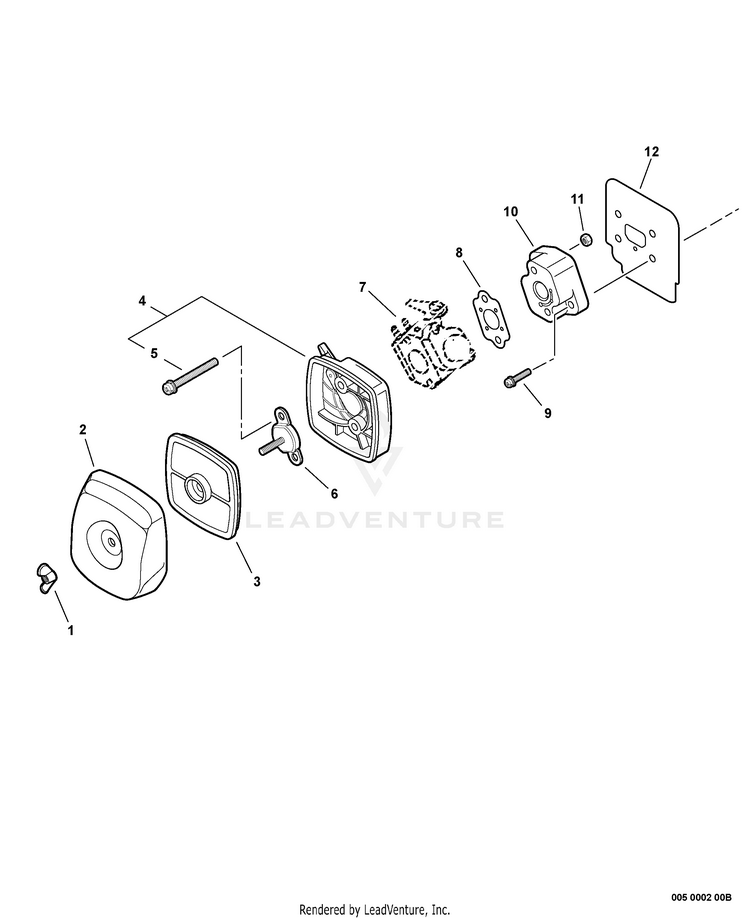

Intake S/N: 006208 - 009465

...
...
1
WINGNUT - 6 ECH-90052800005
...
2
COVER, AIR FILTER ECH-13030206561
...
3
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
4
CASE, AIR FILTER - GRAY Includes ITEM 5 ECH-P021002921
...
5
SCREW 5x65 ECH-90024205065
...
6
PLATE, PREVENT ECH-12901112620
...
7
CARBURETOR See Carburetor Diagram For Details ECH---
...
8
GASKET, INTAKE Included In GASKET KIT ECH-13001642031
...
9
SCREW 5x20 ECH-90023805020
...
10
INSULATOR, INTAKE ECH-13001742031
...
11
NUT M5 ECH-90050000005
...
12
HEAT SHIELD, INTAKE Included In GASKET KIT ECH-V103001360
...
...
...
...
...
