Echo TP-3000 Trash Pump

Model: TP-3000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

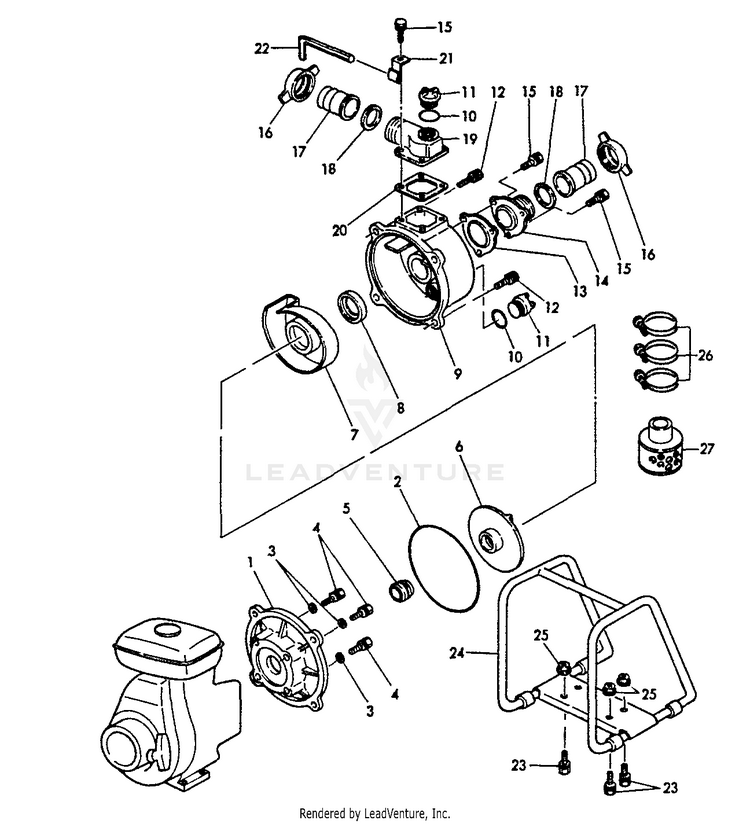

Pump

...
...
1
COVER, PUMP CASE ECH-Y18342948070
...
2
GASKET, CASING ECH-Y18342948060
...
3
GASKET ECH-Y18317848080
...
4
BOLT - 8x48 ECH-Y16066495530
...
5
SEAL, MECHANICAL ECH-Y18332948120
...
6
IMPELLER ECH-Y18342948110
...
7
CASING, INNER, SHIM 0.8 Y50106200000 ECH-Y18342948130
...
8
GASKET, INNER CASING ECH-Y18327848140
...
9
CASING ECH-Y18342948050
...
10
GASKET ECH-Y18317848280
...
11
PLUG ECH-Y18317848270
...
12
BOLT ECH-Y18332948560
...
13
VALVE, CHECK ECH-Y18327848160
...
14
CASE (NPT), VALVE ECH-Y18342948150
...
15
BOLT - 8x25 ECH-Y16066495610
...
16
JOINT (AL-NPT), HOSE ECH-Y18342948200
...
17
COUPLING, HOSE ECH-Y18327848220
...
18
GASKET ECH-Y18327848210
...
19
BEND (NPT), DELIVERY ECH-Y18342948250
...
20
GASKET ECH-Y18327848260
...
21
HOOK ECH-Y18332992820
...
22
WRENCH, SOCKET ECH-Y18332992810
...
23
BOLT ECH-Y18332908210
...
24
FRAME ECH-Y18342908010
...
25
NUT - FLANGE ECH-Y18332908310
...
26
BAND, HOSE ECH-Y18327848350
...
27
STRAINER, DEBRIS ECH-Y18342948360
...
xx
SHIM 0.3 ECH-Y50106000000
...
xx
SHIM 0.5 ECH-Y50106100000
...
xx
SHIM 0.8 ECH-Y50106200000
...
...
...
...
...
