Echo TP-2000 Trash Pump

Model: TP-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

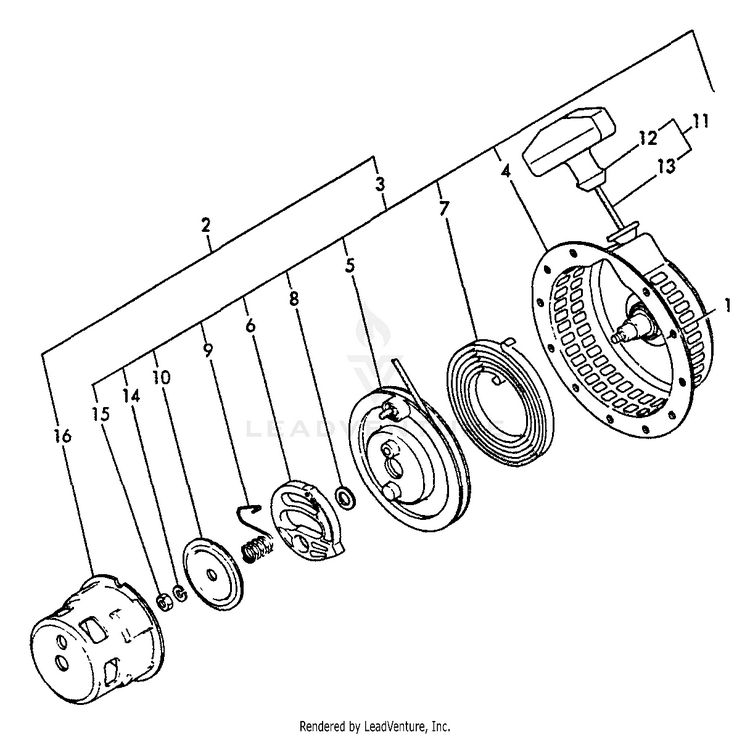

Starter

...
...
1
BOLT - 6x12 - PLATED ECH-Y26106060122
...
2
STARTER ASSY, RECOIL ECH-Y16064076050
...
3
STARTER ASSY, RECOIL ECH-Y16064076250
...
4
CASE, STARTER ECH-Y16064076510
...
5
REEL ECH-Y16061076520
...
6
RATCHET ECH-Y16061076530
...
7
SPRING, SPIRAL ECH-Y16071076540
...
8
WASHER ECH-Y16061076550
...
9
SPRING ECH-Y16064076560
...
10
PLATE, FRICTION ECH-Y16061076580
...
11
STARTER ROPE ASSY ECH-Y16026076610
...
12
GRIP, STARTER ECH-Y16026076620
...
13
ROPE, STARTER ECH-Y16026076630
...
14
LOCKWASHER - 6 ECH-Y22217060000
...
15
NUT - 6 ECH-Y26716060002
...
16
PULLEY, STARTER ECH-Y16061076590
...
...
...
...
...
