Echo TP-2000 Trash Pump

Model: TP-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

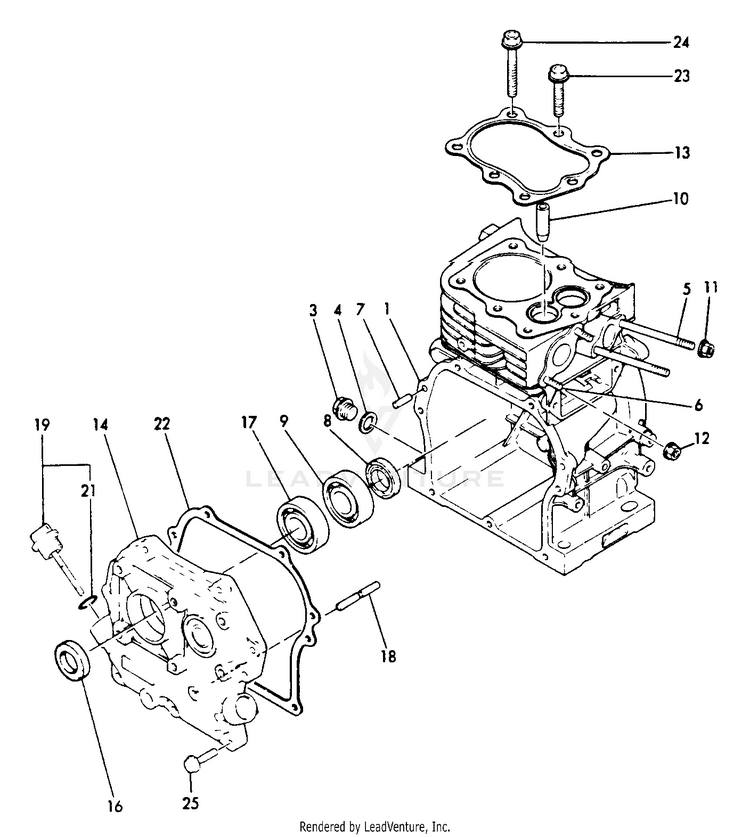

Cylinder Block

...
...
1
CYLINDER BLOCK SET ECH-Y76067101560
...
3
PLUG, DRAIN ECH-Y16061001690
...
4
GASKET ECH-Y10420059170
...
5
BOLT - 6x70 ECH-Y16061004570
...
6
BOLT - 6x16 ECH-Y16061004620
...
7
PARALLEL PIN 6x16 ECH-Y22312060160
...
8
SEAL, OIL ECH-Y16061002220
...
9
BEARING, BALL 6204 C3 ECH-Y24101062040
...
10
GUIDE, VALVE - EXHAUST ECH-Y16061111800
...
11
U-NUT M6 ECH-Y26366060002
...
12
U-NUT M6 ECH-Y26366060002
...
13
GASKET, CYLINDER ECH-Y16061101330
...
14
SIDE COVER ASSY ECH-Y76064101510
...
16
SEAL, OIL ECH-Y16064002220
...
17
BEARING, BALL 6204 C3 ECH-Y24101062040
...
18
SHAFT, GOVERNOR ECH-Y16061061100
...
19
CAP ASSY ECH-Y16061101740
...
21
O-RING 1A P-15.0 ECH-Y24311000150
...
22
GASKET ECH-Y16061001410
...
23
BOLT - 8x39 ECH-Y16061004172
...
24
BOLT - 8x60 ECH-Y16061004192
...
25
BOLT - 6x30 ECH-Y26476060252
...
...
...
...
...
