Echo TP-2000 Trash Pump

Model: TP-2000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

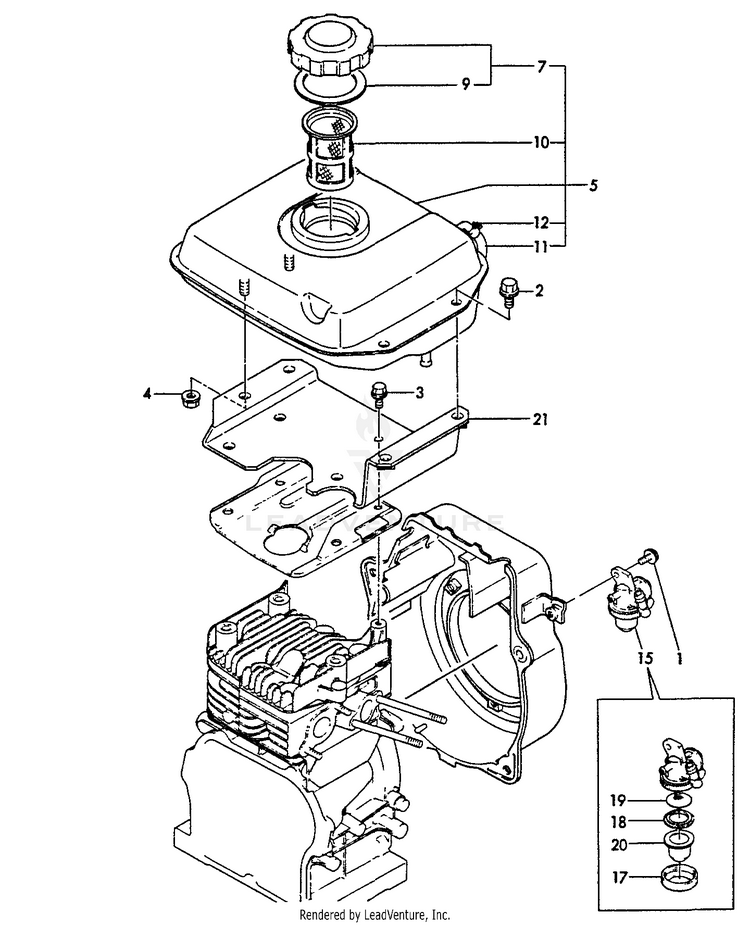

Fuel Tank

...
...
1
BOLT - 6x12 - PLATED ECH-Y26106060122
...
2
BOLT - 8x14 - PLATED ECH-Y26106080142
...
3
BOLT - 6x8 - PLATED ECH-Y26476060142
...
4
U-NUT M8 ECH-Y26366080002
...
5
TANK ASSY, FUEL ECH-Y76064155700
...
7
CAP ASSY ECH-Y16071055060
...
9
GASKET ECH-Y16039355050
...
10
STRAINER, FUEL ECH-Y16071055100
...
11
GAUGE, LEVEL ECH-Y16026055150
...
12
CLAMP, HOSE - 9 ECH-Y12472259050
...
15
COCK ASSY, FUEL ECH-Y16071055301
...
17
RETAINER ECH-Y16071055360
...
18
GASKET ECH-Y16071055370
...
19
FILTER, FUEL ECH-Y16071055380
...
20
BOWL, STRAINER ECH-Y16071055390
...
21
BRACKET, FUEL TANK ECH-Y16064155760
...
...
...
...
...
