Echo TC-2100 Type 1 S/N: 001001 - 999999 Tiller/Cultivator

Model: TC-2100 Type 1 S/N: 001001 - 999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

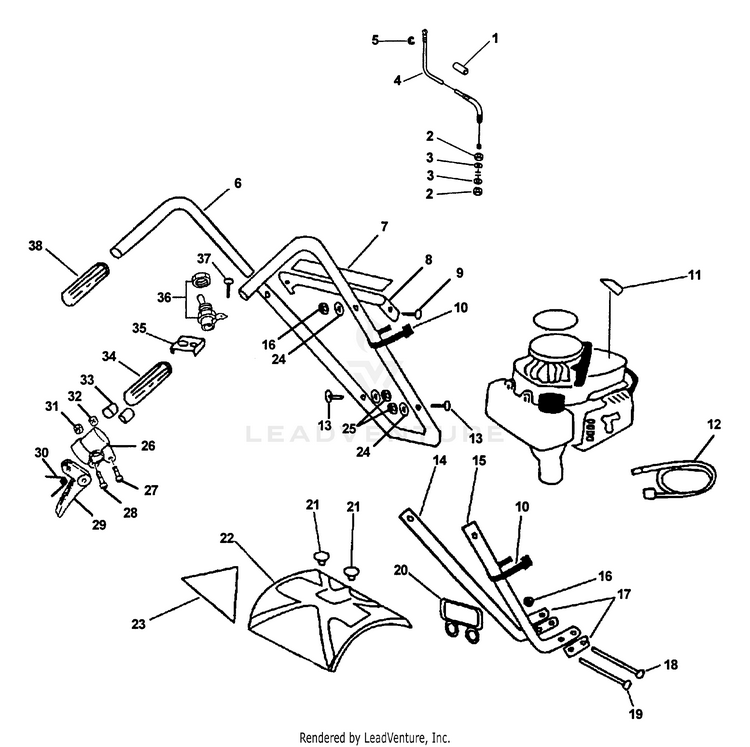

Handles, Shield, Throttle, Stop Switch

...
...
1
PIPE ECH-17812750330
...
2
NUT M6 ECH-90050200006
...
3
WASHER, LOCK 6 MM ECH-90061000006
...
4
CABLE, THROTTLE ECH-V430004201
...
5
E-RING ECH-V583000020
...
6
HANDLE, UPPER ECH-C701000970
...
7
LABEL - CAUTION ECH-89016011760
...
8
SUPPORT, HANDLE ECH-C415000190
...
9
BOLT 1/4"x1-1/4" ECH-90001708040
...
10
TIE, CABLE ECH-17812110050
...
11
LABEL - TC-2100 ECH-89011211760
...
12
LEAD - GROUND ECH-V485000251
...
13
BOLT ECH-90001808040
...
14
HANDLE, LOWER - LEFT ECH-C701000990
...
15
HANDLE, LOWER - RIGHT ECH-C701000980
...
16
NUT, LOCK 1/4 ECH-90003100008
...
17
PLATE, EYE ECH-69401113350
...
18
BOLT 1/4"x3" ECH-90001708096
...
19
BOLT 1/4"-20x3-1/4" ECH-90001708104
...
20
HANDLE, FRONT ECH-C800000470
...
21
BOLT 1/4"x1/2" ECH-90002108016
...
22
SHIELD, BLADE, TC-210 ECH-C550000850
...
23
LABEL - CAUTION ECH-X505001210
...
24
WASHER, SPRING ECH-16389213350
...
25
NUT 1/4 ECH-90003208032
...
26
BRACKET, TRIGGER ECH-17802408730
...
27
SCREW 5x28 ECH-90022005028
...
28
SCREW ECH-17811005330
...
29
TRIGGER, THROTTLE ECH-17801006460
...
30
SPRING ECH-17804305230
...
31
NUT, LOCK M5 ECH-90056000005
...
32
NUT M5 ECH-90050000005
...
33
HOLDER, CABLE ECH-17811113350
...
34
GRIP, HANDLE ECH-35131527931
...
35
BRACKET, SWITCH ECH-16381013350
...
36
SWITCH, ON-OFF ECH-16340002160
...
37
SCREW 5x10 ECH-90025305010
...
38
GRIP, HANDLE ECH-35131102330
...
...
...
...
...
