Echo TC-210 S/N: E14712001001 - E14712999999 Tiller

Model: TC-210 S/N: E14712001001 - E14712999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

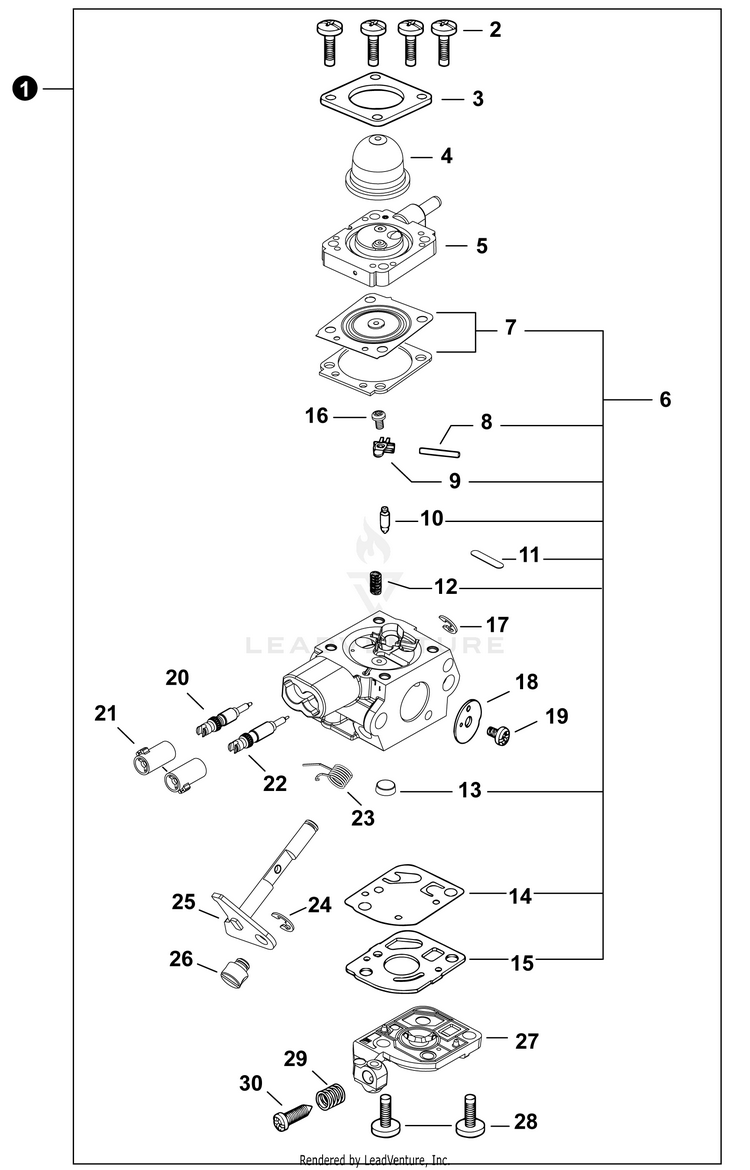

Carburetor S/N E14712300001 - E14712999999

...
...
1
CARBURETOR - Z011-0HB Includes Items 2-30 ECH-A021005571
...
2
SCREW ECH-P005000980
...
3
RETAINER, PURGE BULB ECH-P005000620
...
4
BULB, PURGE ECH-P005003120
...
5
BODY ASSY, PURGE ECH-P005000970
...
6
REPAIR KIT, CARBURETOR Includes Items 7-15 ECH-P005005330
...
7
DIAPHRAGM, METERING ECH---
...
8
PIN, METERING LEVER ECH---
...
9
LEVER, METERING ECH---
...
10
VALVE, INLET NEEDLE ECH---
...
11
PLUG, WELCH ECH---
...
12
SPRING, METERING LEVER ECH---
...
13
STRAINER ECH---
...
14
DIAPHRAGM, PUMP ECH---
...
15
GASKET, PUMP ECH---
...
16
SCREW ECH-P005004130
...
17
E-RING ECH-12532715130
...
18
VALVE, THROTTLE ECH-12531649030
...
19
SCREW ECH-12531413930
...
20
NEEDLE, HIGH SPEED ECH-P005005370
...
21
CAP, LIMITER ECH-P005005360
...
22
NEEDLE, LOW SPEED ECH-P005005380
...
23
SPRING, THROTTLE RETURN ECH-12531342030
...
24
E-CLIP ECH-12532713930
...
25
SHAFT ASSY, THROTTLE ECH-P005001070
...
26
SWIVEL ECH-12537242030
...
27
COVER, FUEL PUMP ECH-12532412820
...
28
SCREW ECH-12531012820
...
29
SPRING ECH-12533306960
...
30
SCREW, THROTTLE ADJUST ECH-12533406960
...
...
...
...
...
