Echo SV212 S/N: P02611001001 - P02611999999 Chipper/Shredder

Model: SV212 S/N: P02611001001 - P02611999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

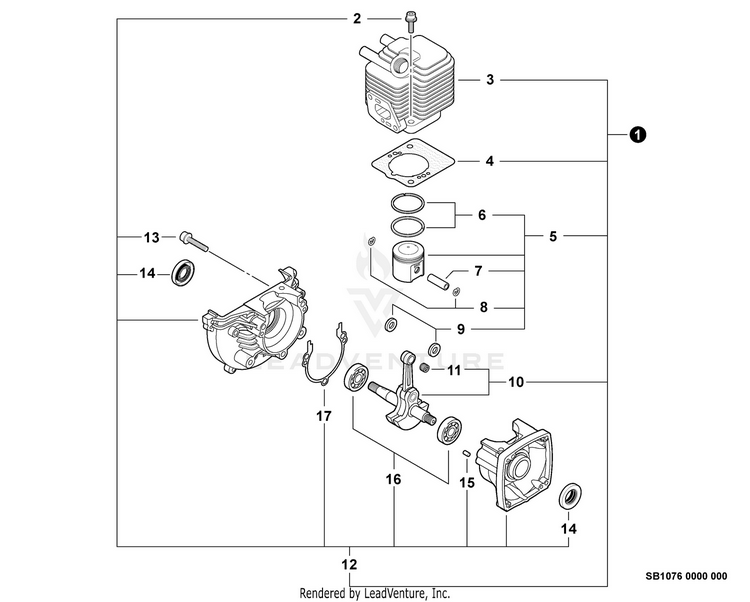

Engine, Short Block -- SB1076

...
...
1
SHORT BLOCK Includes 2-17 ECH-SB1076
...
2
BOLT 5x22 ECH-90016205022
...
3
CYLINDER ECH-A130000550
...
4
GASKET, CYLINDER Included In GASKET KIT ECH-V100000160
...
5
PISTON KIT Includes ITEMS 6-9 ECH-P021007712
...
6
RING, PISTON ECH-A101000090
...
7
PIN, PISTON 8 ECH-10001311520
...
8
RING, SNAP ECH-10001504630
...
9
WASHER, THRUST ECH-10001411520
...
10
CRANKSHAFT ASSY Includes ITEM 11 ECH-A011000151
...
11
BEARING, NEEDLE ECH-V553000030
...
12
CRANKCASE KIT Includes ITEMS 13-17 ECH-10020452133
...
13
BOLT 5x28 ECH-90016205028
...
14
SEAL, OIL 12 ECH-10021242031
...
15
PIN, LOCATING 4 ECH-V622000020
...
16
BEARING, BALL 6201 ECH-9403536201
...
17
GASKET, CRANKCASE Included In GASKET KIT ECH-10024242030
...
...
...
...
...
