Echo SV212 S/N: P02611001001 - P02611999999 Chipper/Shredder

Model: SV212 S/N: P02611001001 - P02611999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

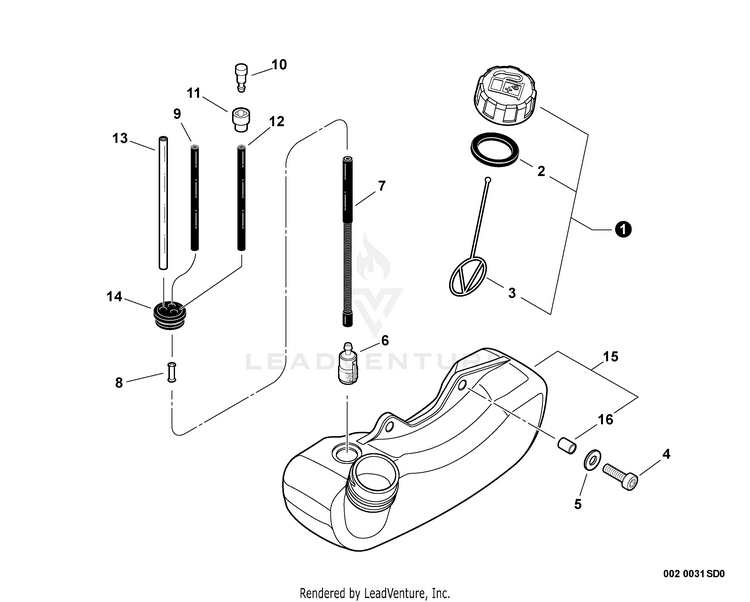

Fuel System

...
...
1
ASSY, FUEL CAP, APPLE RED INCLUDES ITEMS 2-3 ECH-P100014790
...
2
GASKET, FUEL CAP ECH-V107000230
...
3
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
4
BOLT 5x16 ECH-90016205016
...
5
WASHER 5.5x12x0.8 ECH-90060300005
...
6
FILTER, FUEL ECH-A369000480
...
7
PIPE, FUEL 3x7x100 FLEXIBLE ECH-13201212362
...
8
CONNECTOR, PIPE ECH-13201103360
...
9
PIPE, FUEL 3x5x90 BLACK RePower BULK OPTION: 90014 ECH-V471001211
...
10
VENT ASSY ECH-A356000031
...
11
HOLDER, VENT ECH-13132840630
...
12
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
13
PIPE, RETURN, FUEL, 3X6X90 RePower BULK OPTION: 90017 ECH-V471006160
...
14
GROMMET, FUEL 5 ECH-13211546730
...
15
TANK ASSY, FUEL Includes ITEM 16 ECH-A350002541
...
16
SPACER 6.2x7.8x6 ECH-13104528230
...
...
...
...
...
