Echo SV212 S/N: P02611001001 - P02611999999 Chipper/Shredder

Model: SV212 S/N: P02611001001 - P02611999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

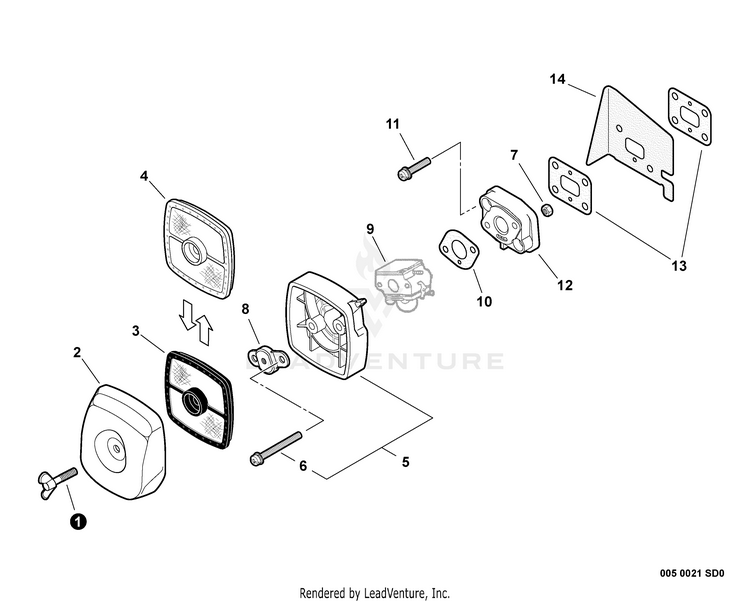

Intake

...
...
1
BOLT, WING 5x20 ECH-21041752730
...
2
COVER, AIR FILTER - GRAY ECH-13031306563
...
3
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
4
FILTER, AIR - DOUBLE LAYER OPTIONAL ECH-A226001410
...
5
CASE, AIR CLEANER ""ORANGE-20"" ECH-13030706960
...
6
SCREW 5x65 ECH-90024205065
...
7
NUT M5 ECH-90050000005
...
8
PLATE, PREVENT ECH-12901152730
...
9
CARBURETOR See Carburetor Diagram For Details ECH---
...
10
GASKET, INTAKE Included In GASKET KIT ECH-13001020560
...
11
SCREW 5x22 ECH-90023805022
...
12
INSULATOR, INTAKE ECH-13001705062
...
13
GASKET, INTAKE Included In GASKET KIT ECH-13001009561
...
14
HEAT SHIELD, INTAKE Included In GASKET KIT ECH-10151420560
...
...
...
...
...
