Echo SV-5H/2 S/N: 09001001 - 09999999 Tiller

Model: SV-5H/2 S/N: 09001001 - 09999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

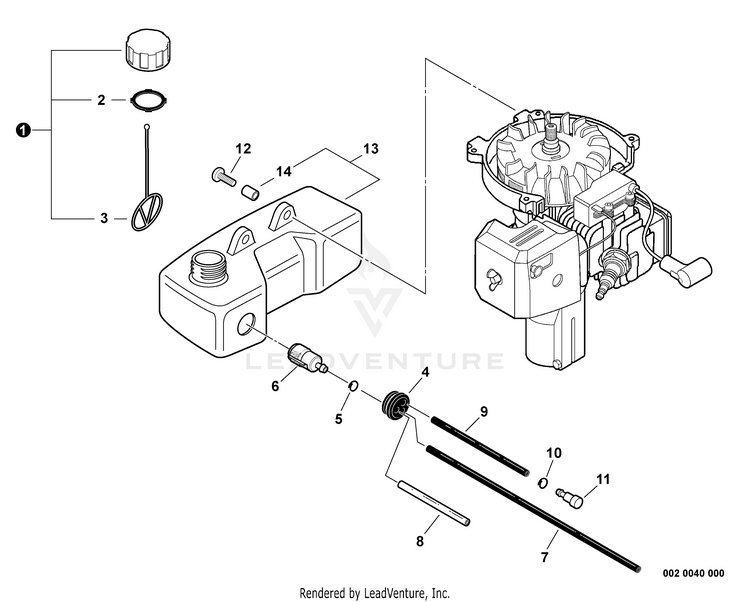

Fuel System

...
...
1
SCREW 5x15 ECH-90027505015
...
2
TANK ASSY, FUEL Includes ITEM 3 ECH-A350000300
...
3
SPACER 6.2x7.8x6 ECH-13104528230
...
4
GROMMET, FUEL 5 ECH-13211546730
...
5
CLIP 6 MM ECH-13201309820
...
6
FILTER, FUEL ECH-A369000480
...
7
PIPE, FUEL 3x5x210 BLACK RePower BULK OPTION: 90014 ECH-V471001231
...
8
PIPE, RETURN, FUEL, 3X6X52 RePower BULK OPTION: 90017 ECH-V471006130
...
9
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
10
CLIP 5.5 ECH-13011100530
...
11
VENT ASSY ECH-13130056431
...
12
FUEL CAP ASSY Includes ITEMS 13- 14 ECH-P100006610
...
13
GASKET, FUEL CAP ECH-V107000230
...
14
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
...
...
...
...
