Echo SV-5H/2 S/N: 09001001 - 09999999 Tiller

Model: SV-5H/2 S/N: 09001001 - 09999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

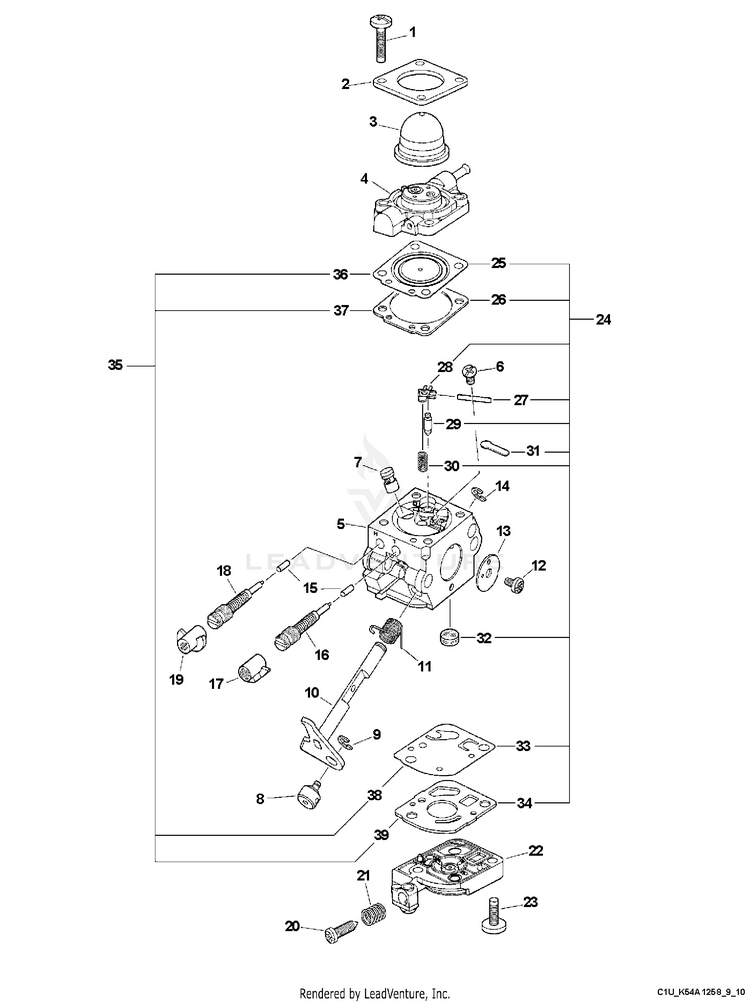

Carburetor -- C1U-K54A

...
...
xx
CARBURETOR, SV-5H LW 2020 ECH-12520013129
...
1
SCREW ECH-P005000980
...
2
RETAINER, PURGE BULB ECH-P005000620
...
3
BULB, PURGE ECH-P005003120
...
4
BODY ASSY, PURGE ECH-P005000970
...
5
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
6
SCREW ECH-12533942030
...
7
NOZZLE, CHECK VALVE ECH-12537613120
...
8
SWIVEL ECH-12537242030
...
9
CLIP ECH-125327-13930
...
10
SHAFT ASSY, THROTTLE ECH-P005001070
...
11
SPRING, THROTTLE RETURN ECH-12531342030
...
12
SCREW ECH-12531413930
...
13
VALVE, THROTTLE ECH-12531649030
...
14
E-RING ECH-12532715130
...
15
RETAINER ECH-12536312820
...
16
NEEDLE, MIXTURE ECH-12531813120
...
17
CAP, LIMITER - WHITE ECH-12532909860
...
18
NEEDLE, HIGH SPEED ECH-12532013310
...
19
CAP, LIMITER - RED ECH-12532939030
...
20
SCREW, THROTTLE ADJUST ECH-12533406960
...
21
SPRING ECH-12533306960
...
22
COVER, FUEL PUMP ECH-12532412820
...
23
SCREW ECH-12531012820
...
24
REBUILD KIT INCLUDES ITEMS 25-34 ECH-12530013120
...
25
DIAPHRAGM, METERING ECH---
...
26
GASKET, METERING ECH---
...
27
PIN, METERING LEVER ECH---
...
28
LEVER, METERING ECH---
...
29
VALVE, INLET NEEDLE ECH---
...
30
SPRING, METERING LEVER ECH---
...
31
PLUG, WELCH ECH---
...
32
STRAINER ECH---
...
33
DIAPHRAGM, PUMP ECH---
...
34
GASKET, PUMP ECH---
...
35
GASKET / DIAPHRAGM KIT INCLUDES ITEMS 36-39 ECH-12530313120
...
36
DIAPHRAGM, METERING ECH---
...
37
GASKET, METERING ECH---
...
38
DIAPHRAGM, PUMP ECH---
...
39
GASKET, PUMP ECH---
...
...
...
...
...
