Echo SRS-2400 Type 1E Shaft Reciprocating Saw

Model: SRS-2400 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

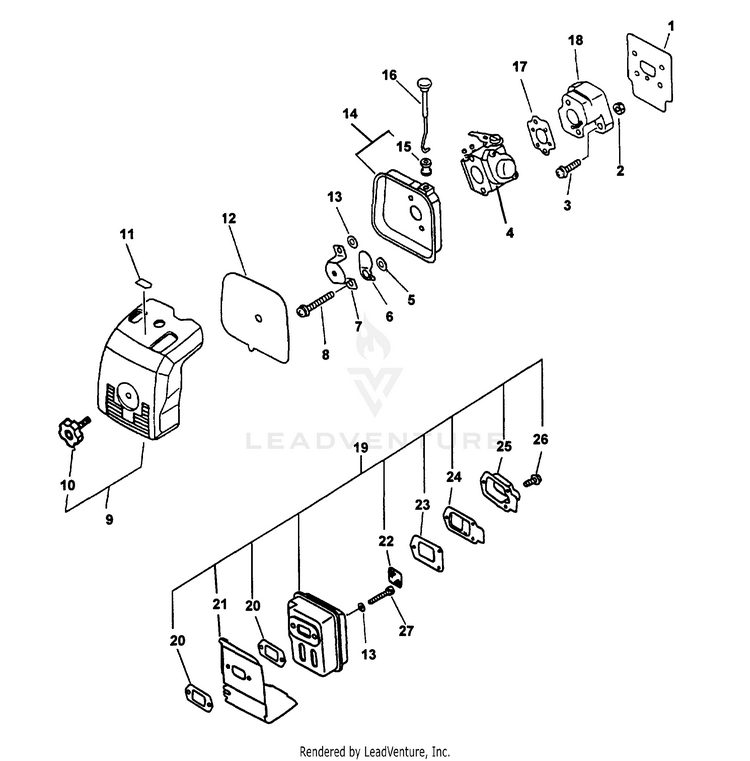

Intake, Exhaust, Air Filter

...
...
1
HEAT SHIELD, INTAKE INCLUDED IN GASKET KIT P/N 88900005960 ECH-V103001360
...
2
NUT M5 ECH-90050000005
...
3
SCREW 5x20 ECH-90023805020
...
4
CARBURETOR - WT-424C ECH-12300052133
...
5
WASHER 5.2x8x0.8T ECH-17851600830
...
6
SHUTTER, CHOKE ECH-17851505060
...
7
PLATE, PREVENT ECH-12901152131
...
8
SCREW 5x57 ECH-90024205057
...
9
AIR CLEANER COVER ASSY Includes ITEM 10 ECH-13030252132
...
10
THUMBSCREW ECH-13040652131
...
11
LABEL - CHOKE ECH-89012152130
...
12
FILTER, AIR - HEAVY DUTY INCLUDED IN KIT P/N 90030 ECH-13031051830
...
13
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
14
AIR CLEANER CASE ASSY Includes ITEM 15 ECH-P100002340
...
15
GROMMET, CHOKE ECH-17881005230
...
16
ROD, CHOKE ECH-17851051730
...
17
GASKET, CARBURETOR INCLUDED IN GASKET KIT P/N 88900005960 ECH-13001005960
...
18
INSULATOR, INTAKE ECH-13001742031
...
19
MUFFLER ASSY INCLUDES ITEMS 20 - 26 ECH-14580052633
...
20
GASKET, EXHAUST INCLUDED IN GASKET KIT P/N 88900005960 ECH-V104000160
...
21
HEAT SHIELD, EXHAUST ECH-A320000251
...
22
SCREEN, SPARK ARRESTER ECH-14586240630
...
23
GASKET, EXHAUST INCLUDED IN GASKET KIT P/N 88900005960 ECH-14586642031
...
24
GUIDE, EXHAUST ECH-14587642030
...
25
OUTLET, EXHAUST ECH-14581852130
...
26
SCREW 4x10 ECH-90023804010
...
27
BOLT 5x55 ECH-90010505055
...
xx
TUNE-UP KIT ECH-90153Y
...
xx
GASKET KIT ECH-88900005960
...
...
...
...
...
