Echo SRS-2400 Type 1E Shaft Reciprocating Saw

Model: SRS-2400 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

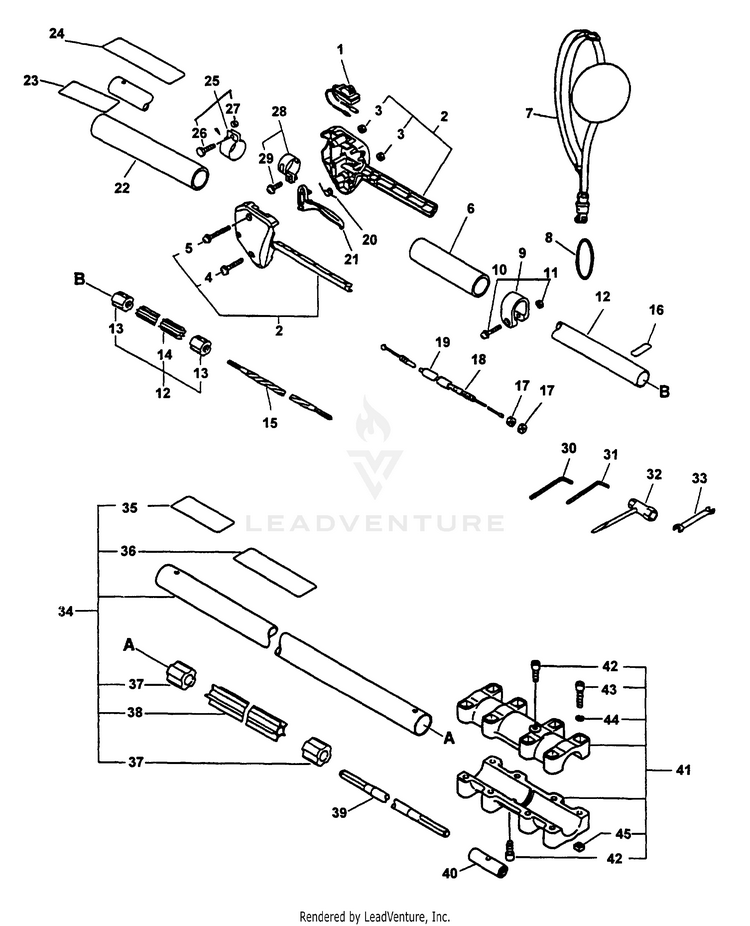

Driveshaft, Handles, Throttle, Stop Switch, Extension

...
...
1
SWITCH ASSY, ON-OFF ECH-16340155631
...
2
HANDLE KIT, CONTROL INCLUDES ITEMS 3 - 5 ECH-17800352130
...
3
NUT M5 ECH-90050000005
...
4
SCREW 5x25 ECH-90024205025
...
5
SCREW 5x35 ECH-90024205035
...
6
GRIP, HANDLE ECH-35121352130
...
7
HARNESS, SHOULDER ECH-C062000680
...
8
RING, HARNESS 32 ECH-30101652730
...
9
CLAMP KIT Includes ITEMS 10-11 ECH-61027252130
...
10
SCREW 5x28 ECH-90024205028
...
11
NUT M5 ECH-90050000005
...
12
MAIN PIPE ASSY Includes ITEMS 13- 14 ECH-61020654330
...
13
STOPPER ECH-61024644730
...
14
LINER - FLEXIBLE ECH-61021754330
...
15
DRIVESHAFT - FLEXIBLE ECH-61001354330
...
16
LABEL - ALIGNMENT ECH-89015204930
...
17
NUT M6 ECH-90050200006
...
18
CABLE, THROTTLE ECH-17800144430
...
19
PIPE ECH-17812750330
...
20
SPRING, TORSION ECH-17804342230
...
21
TRIGGER, THROTTLE ECH-17801052130
...
22
GRIP, HANDLE ECH-35101254330
...
23
LABEL - CAUTION ECH-89017854331
...
24
LABEL - CAUTION ECH-89016054331
...
25
HOOK INCLUDES ITEMS 26 & 27 ECH-30120708930
...
26
BOLT 5x18 ECH-90010005018
...
27
SPACER ECH-69901203330
...
28
CLAMP KIT Includes ITEM 29 ECH-30120029431
...
29
SCREW 5x12 ECH-90024205012
...
30
WRENCH, ALLEN 4 MM ECH-A605000100
...
31
WRENCH, ALLEN 3 MM ECH-X605000090
...
32
T-WRENCH 17x19 L200 ECH-X602000020
...
33
SPANNER 8x10 ECH-89511200330
...
34
MAIN PIPE ASSY INCLUDES ITEMS 35 - 38 ECH-61020452130
...
35
LABEL - CAUTION ECH-89016055330
...
36
LABEL - CAUTION ECH-89017854331
...
37
STOPPER ECH-61024644730
...
38
LINER - FLEXIBLE ECH-61021752130
...
39
DRIVESHAFT - FLEXIBLE ECH-61001352130
...
40
CONNECTOR, SHAFT ECH-61001252130
...
41
HOLDER, MAIN PIPE INCLUDES ITEMS 42 - 45 ECH-61060252130
...
42
BOLT 5x12 ECH-90016205012
...
43
NUT - 5 - SQUARE ECH-90056550005
...
44
WASHER, SPRING 5 ECH-90060500005
...
45
BOLT 5x25 ECH-90010505025
...
...
...
...
...
