Echo SRS-2400 Type 1E Shaft Reciprocating Saw

Model: SRS-2400 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

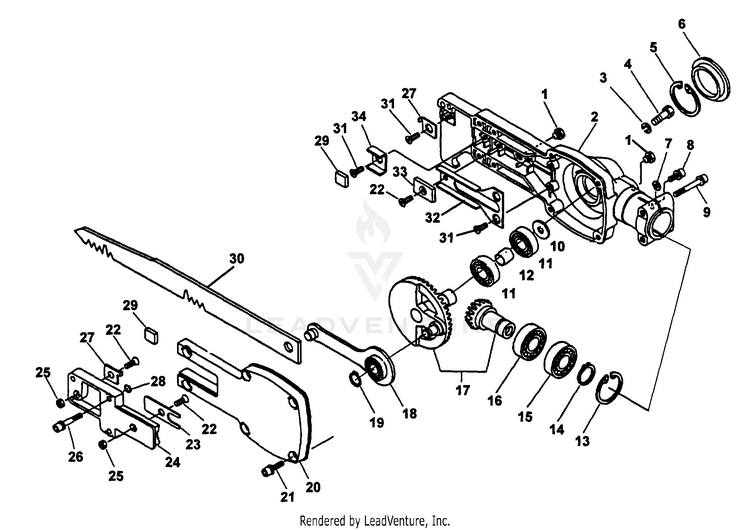

Cutter Head Assembly

...
...
1
BOLT 8x8 SP ECH-90010008008
...
2
CASE, GEAR ECH-61041054330
...
3
WASHER, SPRING 5 ECH-90060500005
...
4
BOLT - 5x16 ECH-90010005016
...
5
RING, SNAP 26 ECH-90070200026
...
6
LID, GEAR CASE ECH-61043127630
...
7
D-WASHER ECH-61023904130
...
8
BOLT 5x14 ECH-90016205014
...
9
BOLT 5x28 ECH-90016205028
...
10
WASHER 5.2x16x1.0 ECH-17721402830
...
11
BEARING, BALL BB6000Z ECH-90080306000
...
12
SPACER ECH-61031527630
...
13
RING, SNAP 24 ECH-90070200024
...
14
RING, SNAP 12 ECH-90070600012
...
15
BEARING, BALL ECH-9405206901
...
16
BEARING, BALL 6901 ECH-90085506901
...
17
GEAR SET ECH-61030054330
...
18
CONROD ASSY ECH-61030754330
...
19
RING, RETAINING - 7 ECH-90070100007
...
20
COVER, GEAR CASE ECH-60621254331
...
21
BOLT 5x18 ECH-90016205018
...
22
SCREW 4x12 ECH-90021204012
...
23
GUIDE, BLADE ECH-61044146530
...
24
LID, GEAR CASE ECH-60541354330
...
25
NUT ECH-900500-00004
...
26
BOLT 5x30 ECH-90016205030
...
27
BLADE, SAW ECH-61044054530
...
28
RING, SNAP ECH-17506354330
...
29
SEAL ECH-61042654330
...
30
BLADE, SAW ECH-99945200001
...
31
SCREW 4x10 ECH-90021204010
...
32
GUIDE, CUTTER ECH-61044054331
...
33
GUIDE, BLADE ECH-61044054630
...
34
GUIDE, BLADE ECH-61044154330
...
...
...
...
...
