Echo SRS-2400 Type 1E Shaft Reciprocating Saw

Model: SRS-2400 Type 1E

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

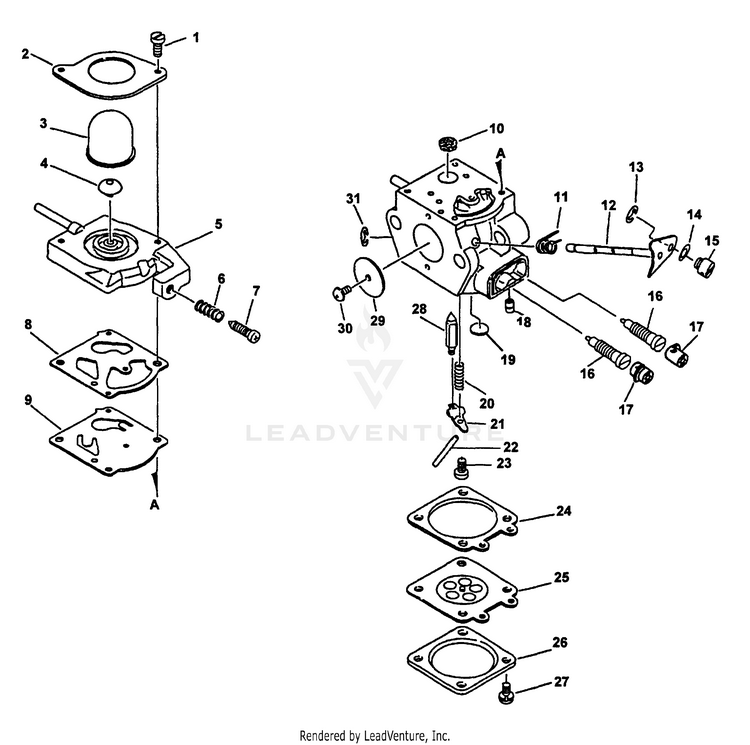

Carburetor

...
...
xx
CARBURETOR - WT-424C Includes ITEMS 1-31 ECH-12300052133
...
1
SCREW ECH-12311043130
...
2
RETAINER, PURGE BULB ECH-12314209560
...
3
BULB, PURGE ECH-A263000020
...
4
VALVE, CHECK ECH-12317135630
...
5
COVER, FUEL PUMP ECH-12312443230
...
6
SPRING, IDLE ADJUST ECH-12313304260
...
7
SCREW, IDLE ADJUST ECH-12313404260
...
------------------
GASKET, PUMP INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130 ECH---
...
------------------
DIAPHRAGM, PUMP INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130 ECH---
...
10
STRAINER INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
11
SPRING, THROTTLE RETURN ECH-12311352130
...
12
SHAFT, THROTTLE ECH-12311752130
...
13
E-RING ECH-12317307930
...
14
WASHER ECH-12314926030
...
15
SWIVEL ECH-12317226030
...
16
NEEDLE, MIXTURE ECH-12312052131
...
17
CAP, LIMITER TYPE 1E ONLY ECH-12315139230
...
18
NOZZLE, CHECK VALVE ECH-12318752130
...
19
PLUG, WELCH INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
20
SPRING, METERING LEVER INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
21
LEVER, METERING INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
22
PIN, METERING LEVER INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
23
SCREW, METERING LEVER PIN INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
24
GASKET, METERING INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130 ECH---
...
25
DIAPHRAGM, METERING INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130 ECH---
...
26
COVER, METERING DIAPHRAGM ECH-12314203930
...
27
SCREW INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
28
VALVE, INLET NEEDLE INCLUDED IN REBUILD KIT P/N 12310052130 ECH---
...
29
VALVE, THROTTLE ECH-12311652130
...
30
SCREW ECH-12311403930
...
31
E-RING ECH-12312715030
...
xx
REPAIR KIT, CARBURETOR INCLUDES ITEMS 8-10, 19, 20-25, 27, & 28 ECH-12310052130
...
xx
DIAPHRAGM/GASKET KIT INCLUDES ITEMS 8, 9, 24, 25 ECH-12310152130
...
...
...
...
...
