Echo SRS-2100 Type 1 Shaft Reciprocating Saw

Model: SRS-2100 Type 1

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

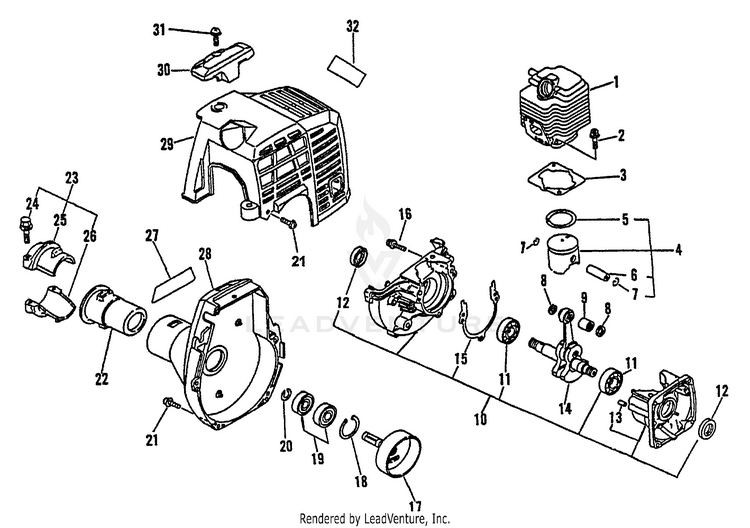

Engine, Crankcase, Fan Housing, Clutch Drum, Cover

...
...
1
CYLINDER ECH-10101148730
...
2
BOLT 5x22 ECH-90016205022
...
3
GASKET, CYLINDER Use Kit P/N 88900042031 ECH-10101044332
...
4
PISTON KIT Includes Items 5 - 8 ECH-10000044331
...
5
RING, PISTON ECH-10001105330
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001411520
...
9
BEARING, NEEDLE 8 ECH-V553000010
...
10
CRANKCASE KIT Includes Items 11 - 13, 15 & 16 ECH-10020451031
...
11
BEARING, BALL 6201 ECH-9403536201
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
CRANKSHAFT ASSY Includes ITEM 9 ECH-A011001410
...
15
GASKET, CRANKCASE Use Kit P/N 88900042031 ECH---
...
16
BOLT 5x28 ECH-90016205028
...
17
DRUM, CLUTCH ECH-17500548931
...
18
RING, SNAP 28 ECH-90070200028
...
19
BEARING, BALL 6001 ECH-9406106001
...
20
RING, SNAP 12 ECH-90070100012
...
21
BOLT 4x16 ECH-V202000830
...
22
CUSHION ECH-61091027832
...
23
HOLDER KIT Includes Items 24-26 S/N 001001-014000 ECH-P021013520
...
23
RETAINER KIT Includes Items 24-26 S/N 014001 & UP ECH-61090355230
...
24
BOLT - 5x25 ECH-90014205025
...
25
HOLDER, MAIN PIPE - UPPER ECH-61092227432
...
26
HOLDER S/N 001001 - 014000 ECH-61092327432
...
26
HOLDER - LOWER S/N 014001 & UP ECH-A575000100
...
27
LABEL - MODEL ECH-89011554330
...
28
CASE ASSY, FAN S/N 001001 - 014000 ECH-10150452130
...
28
COVER ASSY, FAN S/N 014001 & Up ECH-10150352131
...
29
COVER, ENGINE ECH-10151448930
...
30
GUARD, TOP ECH-15991254130
...
31
SCREW 5x16 ECH-90023805016
...
32
LABEL - CAUTION - HOT ECH-89019406360
...
xx
SHORT BLOCK ES-2100;PB-2100 ECH-SB1026
...
xx
GASKET KIT OPTIONAL ECH-88900042036
...
xx
GASKET, CYLINDER OPTIONAL ECH-10101044332
...
xx
GASKET, CRANKCASE OPTIONAL ECH---
...
xx
GASKET, INTAKE OPTIONAL ECH-13001642031
...
xx
HEAT SHIELD, INTAKE OPTIONAL ECH-V103001360
...
xx
GASKET, EXHAUST OPTIONAL ECH-14586642031
...
xx
GASKET, EXHAUST OPTIONAL ECH-V104000160
...
...
...
...
...
