Echo SRM-202FA Brushcutter

Model: SRM-202FA

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

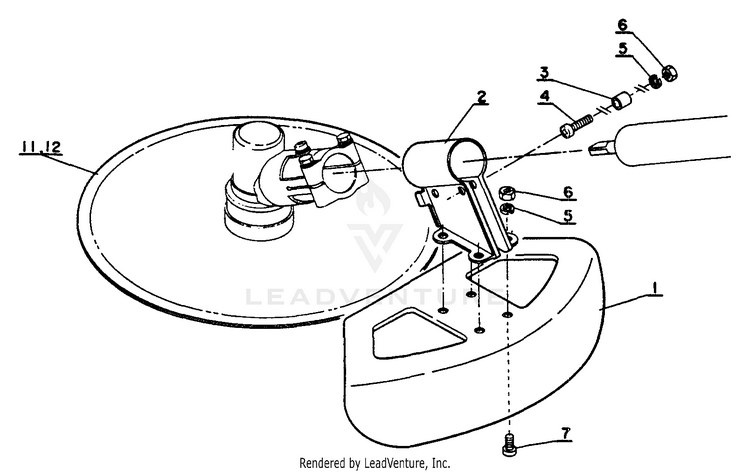

Shield

...
...
xx
SHIELD ASSY ECH-69900040430
...
1
GUARD ECH-69901005330
...
2
BRACKET KIT, SHIELD ECH-69900240430
...
3
SPACER ECH-69901203330
...
4
SCREW 5x18 ECH-90022005018
...
5
WASHER, SPRING 5 ECH-90060500005
...
6
NUT M5 ECH-90050000005
...
7
SCREW 5x8 ECH-90022005008
...
11
SAW, CIRCULAR ECH-69500101230
...
12
BLADE - 8 TOOTH - 10" ECH-69600101130
...
...
...
...
...
